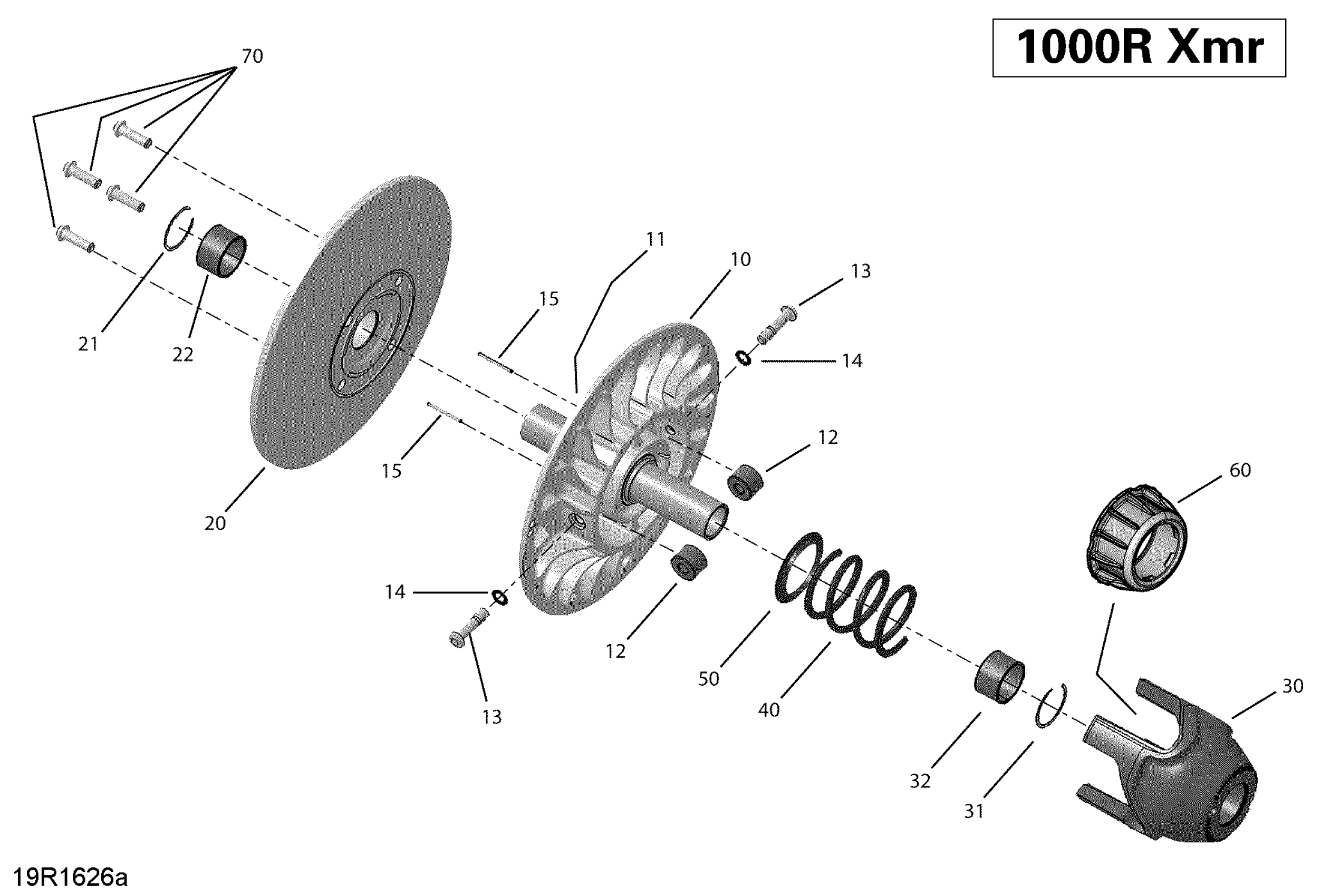

Can-Am Maverick MAX, 2018 Transmission, Driven Pulley - XMR Diagram

Description

Price

Fixed Flange Ass'y | Includes 10 to 15

707001812

$309.67

RING - Call your local BRP dealership

707001648

$26.09

Pulley Roller

417127016

$22.36

Pivot Stud

417127294

$13.18

Lock Washer 8 mm

250200009

$2.00

Spring Pin

250400070

$1.91

Sliding Flange Ass'y | Includes 20 to 22

707001770

$309.67

Circlip

293370052

$4.57

Bushing

707001651

$18.63

Cam Ass'y | Includes 30 to 32

707001912

$146.99

Circlip

293370052

$4.57

Bushing

707001651

$18.63

Spring, Blue/Orange

414639000

$31.31

SWIVEL ABUTMENT - Call your local BRP dealership

707001650

Unavailable

Spring Chamber

707001777

$12.90

Button Head Torx Screw M8 X 25 S.Gr

250000757

$1.85
