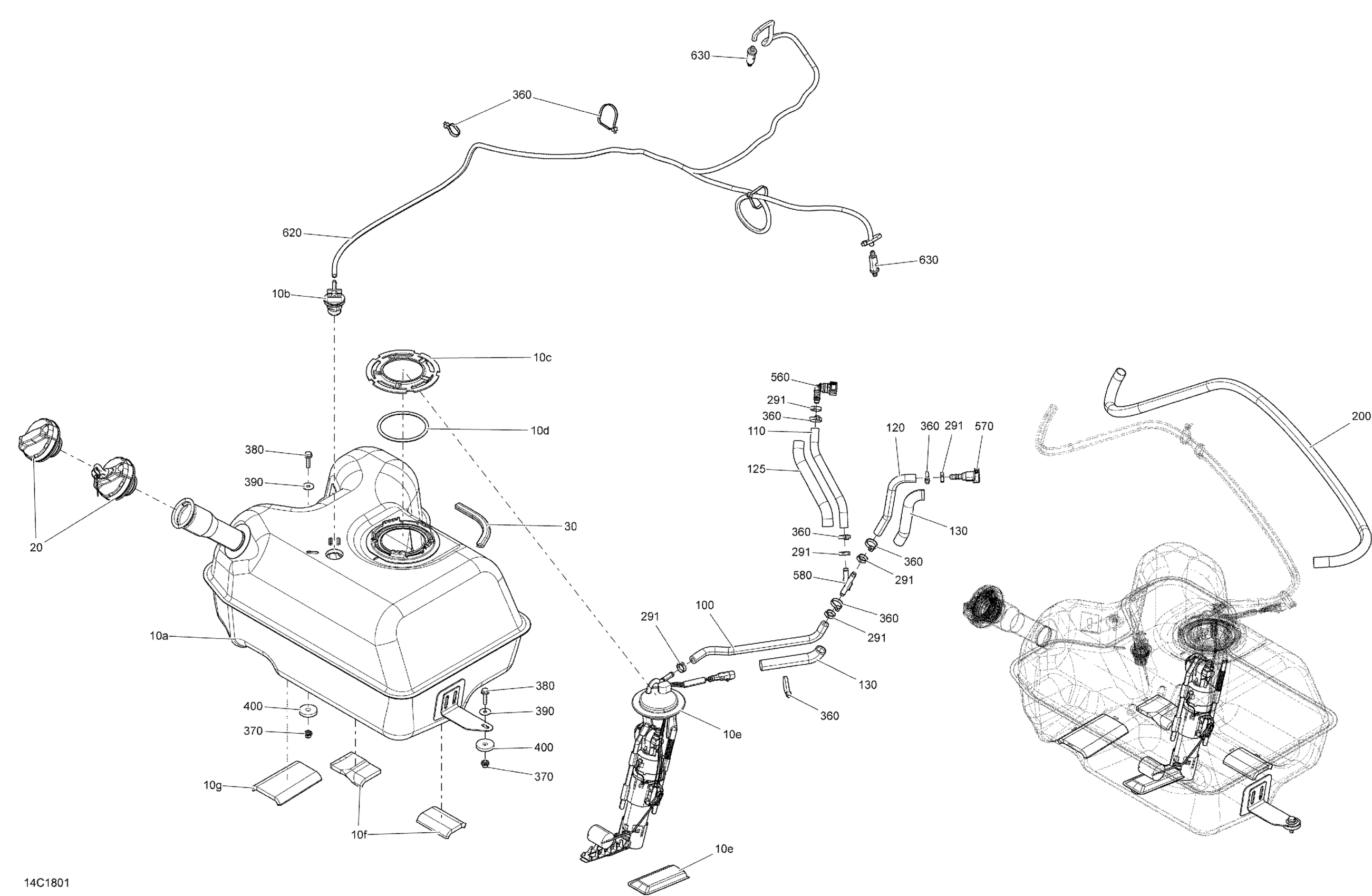

Can-Am Maverick MAX, 2018 Fuel - Commander And Maverick Diagram

Description

Price

10a

Fuel Tank

709000753

$769.97

10b

Rollover Valve

709000413

$52.28

10c

Ring

709000274

$14.85

10d

O-Ring

709000275

$16.12

10e

Fuel Pump | Includes 5 to 6

709000759

$353.87

10e

Fuel Pre-Filter Kit

709000389

$78.43

10f

Neoprene Pad

709000288

$13.83

10g

NEOPRENE PAD - Call your local BRP dealership

709000289

Unavailable

Fuel Cap | Except Europe

709000529

$28.92

100

Was 709000163 Fuel Line

219704440

$108.43

110

Was 709000163 Fuel Line

219704440

$108.43

120

Was 709000163 Fuel Line

219704440

$108.43

125

Tubing 16 Mm 1000Mm Long

219704408

$6.23

130

Tubing 16 Mm 1000Mm Long

219704408

$6.23

200

Tubing 16 Mm 1000Mm Long

219704408

$6.23

291

Crimp Clamp, 15.3-706R

293650047

$2.64

370

Threaded Insert M6 X 1.0

250100242

Unavailable

380

Hex. Flange Screw M6 X 25

207662544

$0.53

390

Flat Washer

224060201

$1.15

400

Rubber Washer

293830037

$2.75

560

Quick Attach 90°

275500700

$12.61

570

Female Quick Fitting Ass'y

709000125

$11.12

570a

Locking Clip

513033135

$5.11

580

Y-Fitting, 5/16''

293710136

$6.45

620

Polyurethane Hose 10000Mm Long

219704410

$46.12

630

Filter

709000330

$8.29

888

Tie-Rap 180 mm

414115200

$0.09
