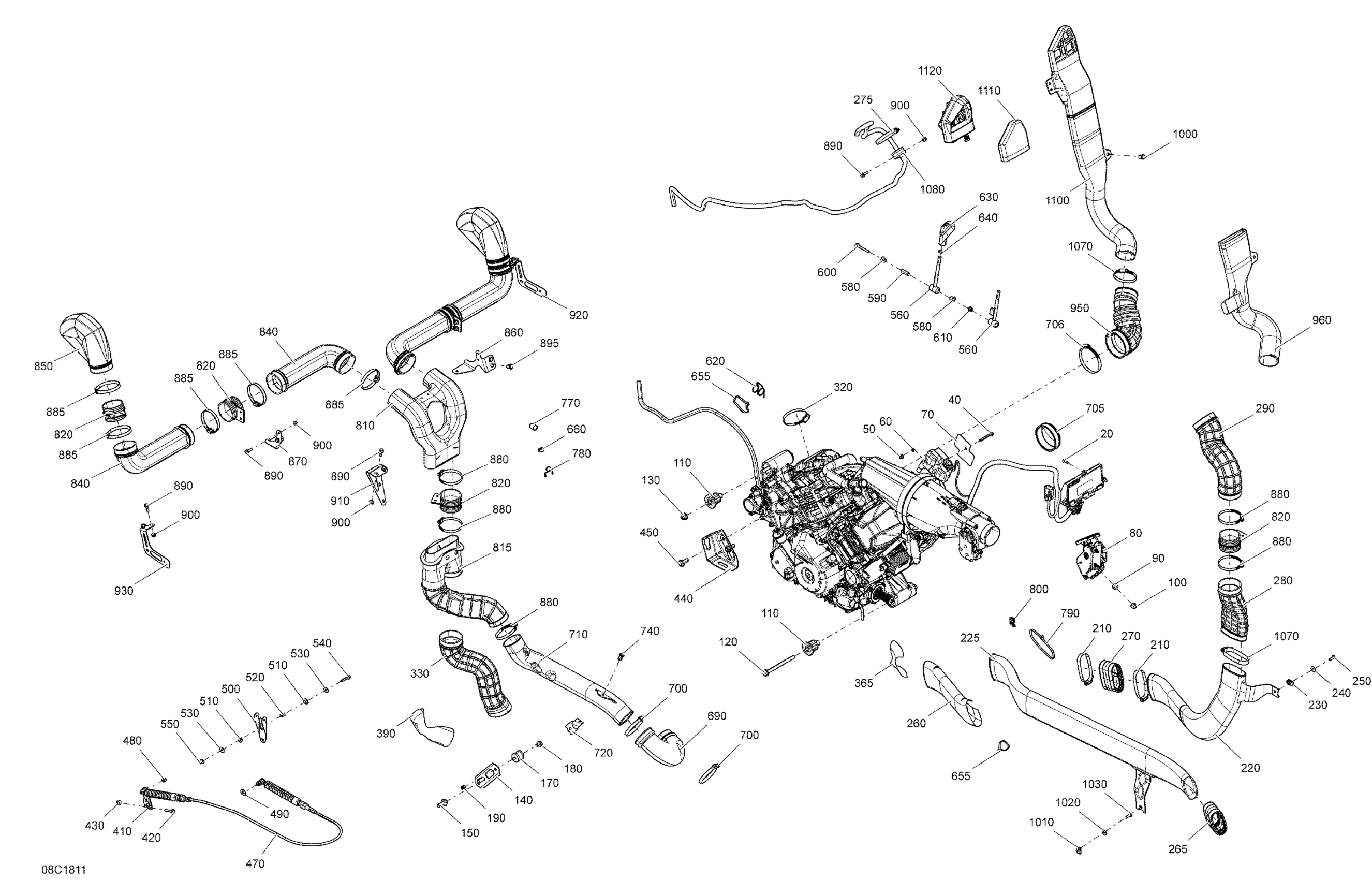

Can-Am Maverick MAX, 2018 Engine Maverick MAX - Package XMR Diagram

#

Description
Price

20

Torx Screw K50 X 16

250000720

$1.60

40

Hex. Flange Screw M6 X 50

207665044

$3.88

50

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

60

External Serrated Lock Washer 6 mm

234461608

$1.06

70

Insulator Pad

710000073

$10.30

80

Accelerator Pedal

707001166

$261.24

90

Bushing

707000848

$1.04

100

Hex. Flange Nut M8

233081416

$1.87

110

Anti Vibration Buffer

707001170

$19.37

120

Hex. Flange Screw M10 X 125

230602546

$6.99

130

Hex. Flange Elastic Nut M10

233201436

$2.00

140

Upper Engine Bracket

707000707

$5.25

150

Hex. Flange Screw M10 X 25

207602544

$1.52

170

Rubber Isolator

707000949

$10.33

180

Flange Screw M8 x 10, Scotch Grip

207581046

$4.58

190

Hex. Elastic Stop Nut M8

232581414

$0.54

210

Norma Clamp

293650091

$10.54

220

AIR INLET - Call your local BRP dealership

707001983

Unavailable

225

Air Inlet

707001228

$49.22

230

Panel Nut M6 X 1.0

250100198

$1.99

240

Flat Washer

250200082

$0.40

245

Hose Holder

706600276

$17.88

250

Torx Screw M6 X 20

250000722

$1.54

260

Reflector

707001346

$27.58

265

Flexibale Adaptor

707002585

$14.31

270

Flexibale Adaptor

707002585

$14.31

275

Norma Clamp

293650091

$10.54

280

AIR INLET - Call your local BRP dealership | XMR

707001377

Unavailable

290

Air Inlet | XMR

707001378

$40.27

320

Norma Gear Clamp

293650118

$11.18

330

CVT Outlet | XMR

707001380

$59.67

365

Reflective Sheet

707000991

$8.48

390

Reflective Sheet

707000991

$8.48

410

Lever

707000911

$18.63

420

Hex. Flange Screw M6 X 35

207663544

$0.85

430

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

440

Cable Support | Engine 1000

707000919

$14.43

450

Hex. Flange Screw M10 X 25

207602544

$1.52

470

Shifting Cable

707001283

$63.40

480

Hex. Elastic Stop Nut M8

232581414

$0.54

490

Flat Washer 10 mm

234001410

$1.12

500

Lower Lever Arm

707000828

$17.13

510

Flanged Bushing

707000847

$0.97

520

Bushing

707000801

$2.68

530

Flat Washer 6 mm

234062410

$0.73

540

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00

550

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

560

Upper Lever Arm

707000711

$35.79

580

Flanged Bushing

707000869

$2.13

590

Bushing

707001376

$4.09

600

Hex. Flange Screw M6 X 50

207665044

$3.88

610

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

620

Lever Arm Spring

707000750

$2.68

630

Lever Handle

707000284

$17.88

640

Hex. Jam Nut M8

232180491

$7.09

660

Spring Clamp

414415200

$0.81

690

CVT OUTLET - Call your local BRP dealership

707001866

Unavailable

700

Norma Gear Clamp

293650118

$11.18

705

PLUG - Call your local BRP dealership

707001911

Unavailable

706

Norma Clamp

514052924

$12.15

710

Front CVT Outlet | XMR

707001381

$44.75

720

Front Support

707001231

$13.40

740

Tuflok Plastic Rivet

293150230

$1.39

770

Plug

707001185

$1.04

780

Retainer Clip

707800506

$10.51

790

Tie Wrap 368 mm

293750008

$0.97

800

Clip Tie-Rap

710002899

$7.84

810

CVT Outlet

707001532

$47.73

815

Front CVT Outlet | XMR

707001855

$44.75

820

Adaptor | XMR

707001383

$10.30

840

CVT Outlet | XMR

707001385

$44.75

850

Rear CVT Outlet | XMR

707001386

$44.75

860

Support | XMR

707001483

$25.34

870

Right Support | XMR

707001388

$16.39

880

Norma Clamp

293650091

$10.54

885

Tie Rap 367mm | XMR

293750065

$3.55

890

Hex. Flange Screw M6 X 20

207662054

$0.96

895

Tuflok Plastic Rivet

293150230

$1.39

900

Hex. Flange Elastic Nut M6

233261494

$1.45

910

Central Support | XMR

707001389

$26.09

920

LEFT SUPPORT - Call your local BRP dealership | XMR

707001390

Unavailable

930

Right Support | XMR

707001391

$26.09

950

Air Inlet

707001910

$42.51

960

Air Inlet

707001401

$43.25

1000

Tuflok Plastic Rivet

293150230

$1.39

1010

Panel Nut M6 X 1.0

250100198

$1.99

1020

Flat Washer

250200082

$0.40

1030

Torx Screw M6 X 20

250000722

$1.54

1070

Norma Clamp

293650091

$10.54

1080

Hose Retainer

293650218

$7.72

1100

AIR INLET - Call your local BRP dealership

707002145

Unavailable

1110

CVT Filter | XMR

707001482

$15.64

1120

Deflector | XMR

707001481

$38.78
