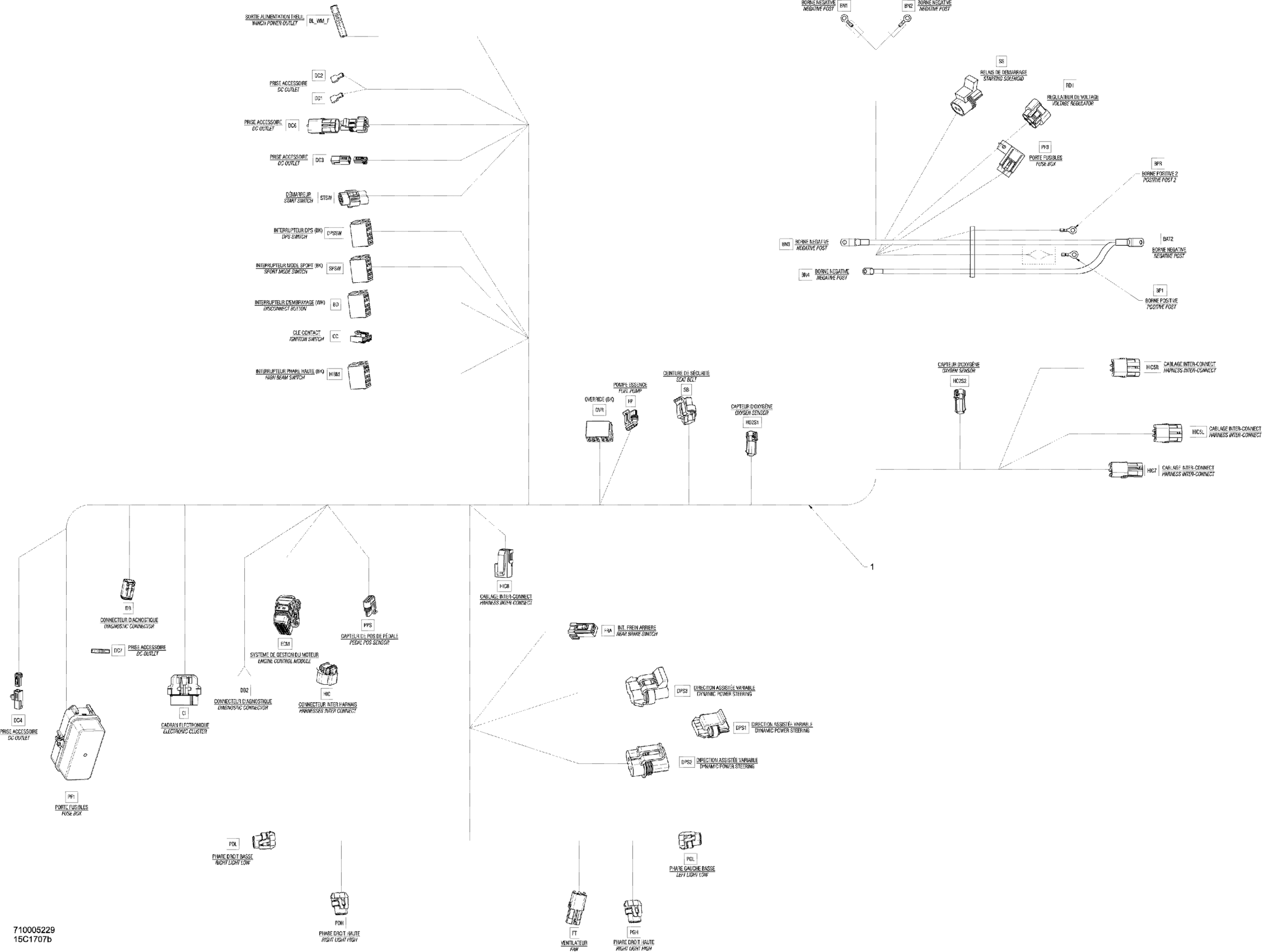

Can-Am Maverick MAX, 2017 Electrical Harness - 710005229 Diagram

#

Description
Price

Main Harness Ass'y | MAV-MAX

710005229

$1,384.58

BAT2

Terminal 45°

710003518

$8.29

BD

Housing Connector

710002001

$12.68

BL_WM_F

Insulated Sheath

278001007

$3.22

BL_WM_F

Female Terminal

710000421

$5.46

BD

Terminal

710003047

$3.68

BN2

Open Barrel Terminal

278001392

$4.12

BN1

Terminal

710000913

$5.46

BN3

Open Barrel | STD Models

710000518

$10.82

BP1

Terminal

710000913

$5.46

BPR

Terminal

710000913

$5.46

CC

Male Housing, 6 Circuits

710000849

$7.55

CC

Lock

710000848

$3.98

CC

Terminal | Canada/Usa

710001635

$3.98

CI

Female Housing, 24 Circuits

515175801

$9.00

CI

Retainer Block

515175802

$10.66

CI

Plug

515175812

$1.70

CI

Female Housing

710000399

$14.02

CI

Wire Seal

515175803

$2.41

CI

Female Terminal

710001131

$7.00

D2

Diode

409012700

$10.83

DB

Housing, 6 Circuits

278002896

$14.02

DB

Male Wedge, 6 Circuits

515175678

$5.11

DB

Female Terminal

278001665

$3.73

DB2

Female Terminal

278001665

$3.73

DC1

Female Terminal

409010800

$0.95

DC2

Female Terminal

409010800

$0.95

DC3

Female Housing, 2 Circuits

515175658

$15.35

DC3

Male Housing, 2 Circuits

710000667

$7.48

DC3

Female Terminal

515175231

$4.12

DC4

Female Housing, 2 Circuits

515175658

$15.35

DC4

Male Housing, 2 Circuits

710000667

$7.48

DC4

Female Terminal

515175231

$4.12

DC6

Clip

710000992

$4.00

DC6

Female Housing, 2 Circuits

278000217

$7.59

DC6

Male Connector, 2 Circuits

278000220

$11.02

DC6

Wire Seal

278000216

$2.55

DC6

Wire Seal

278000218

$3.48

DC6

Female Terminal

409007300

$0.36

DC7

Insulated Sheath

278001007

$3.22

DC7

Female Terminal | DS 650 X

278001009

$2.55

DPS1

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

DPS1

Housing

710001161

$9.15

DPS1

Lock

710001162

$3.28

DPS1

Cap

710001225

$7.27

DPS1

Cap

710001114

$16.89

DPS1

Wire Seal

710001163

$5.10

DPS1

Female Terminal

710001164

$5.92

DPS2

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

DPS2

Fuse Holder

278001325

$8.57

DPS2

Female Terminal

710000113

$6.03

DPS3

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

DPS3

Housing

710001157

$17.66

DPS3

Lock

710001323

$6.15

DPSSW

Housing

710002000

$5.86

DPSSW

Terminal

710003047

$3.68

ECM

Cover, 48 positions

710001591

$10.05

ECM

Female Terminal Housing, 48 Circuits

710001588

$39.62

ECM

Plug

710001592

$2.12

ECM

Plug

710001593

$2.12

ECM

Female Terminal

710001589

$1.79

ECM

Female Terminal

710001727

$2.55

FP

Female Housing, 4 Circuits

409209700

$12.97

FP

Wire Seal

278001013

$2.72

FP

Wire Seal

515176621

$7.00

FP

Female Terminal

278001014

$2.72

FP

Female Terminal

710001340

$5.11

FRA

Female Housing, 2 Circuits

515175658

$15.35

FRA

Female Terminal

515175231

$4.12

FT

Clip Bracket Connector (edge)

409210100

$2.00

FT

Female Housing, 2 Circuits

278000217

$7.59

FT

Wire Seal

278000218

$3.48

FT

Male Terminal

409004300

$5.46

HIBM

Housing

710002000

$5.86

HIBM

Terminal

710003048

$4.12

HIBM

Terminal

710003047

$3.68

HIC

Housing

710001928

$14.97

HIC

LOCK - Call your local BRP dealership

710001221

$8.68

HIC

Cap

710001225

$7.27

HIC

Seal

710001230

$2.75

HIC

Seal

710001233

$2.55

HIC

Terminal

710001229

$3.02

HIC

Terminal

710001228

$2.72

HIC5L

Clip

710001038

$5.11

HIC5L

Female Terminal Housing, 3 Circuits | XT Models

278000281

$8.11

HIC5L

Wire Seal

278001065

$6.03

HIC5L

Male Terminal | XT Models

278000222

$2.55

HIC5R

Clip Bracket Connector (edge)

409210100

$2.00

HIC5R

Female Terminal Housing, 3 Circuits | XT Models

278000281

$8.11

HIC5R

Wire Seal

278001065

$6.03

HIC5R

Male Terminal | XT Models

278000222

$2.55

HIC7

Clip

710001038

$5.11

HIC7

Female Housing, 2 Circuits

278000217

$7.59

HIC7

Wire Seal

278000218

$3.48

HIC7

Male Terminal

409004300

$5.46

HIC8

Housing

710003175

$4.22

HIC8

Housing

710003177

$3.68

HO2S1

Housing

710002466

$2.98

HO2S1

Lock

710002469

$1.98

HO2S1

Seal

278001482

$2.55

HO2S1

Gold Terminal

710002597

$2.98

HO2S2

Housing

710002466

$2.98

HO2S2

Lock

710002469

$1.98

HO2S2

Seal

278001482

$2.55

HO2S2

Gold Terminal

710002597

$2.98

OVR

Housing

710002000

$5.86

OVR

Terminal

710003047

$3.68

PDH

Housing

710002278

$7.98

PDH

Lock

710002279

$4.60

PDH

Wire Seal

710001427

$1.83

PDH

Female Terminal

710000918

$5.10

PDL

Housing

710002278

$7.98

PDL

Lock

710002279

$4.60

PDL

Wire Seal

710001427

$1.83

PDL

Female Terminal

710000918

$5.10

PF1

Fuse Puller

710000781

$8.29

PF1

Fuse Cover

710001026

$17.52

PF1

Logo Fuse Relay

710002715

$10.66

PF1

Foam

278002172

$5.49

PF1

Fuse Box Base Ass´y

415129856

$41.57

PF1

Little Fuse, 5 Amperes

710000742

$7.24

PF1

Little Fuse, 5 Amperes

710000742

$7.24

PF1

Little Fuse, 5 Amperes

710000742

$7.24

PF1

Little Fuse, 5 Amperes

710000742

$7.24

PF1

Little Fuse, 5 Amperes

710000742

$7.24

PF1

Little Fuse, 5 Amperes

710000742

$7.24

PF1

Little Fuse, 5 Amperes

710000742

$7.24

PF1

Little Fuse, 5 Amperes

710000742

$7.24

PF1

Little Fuse, 7.5 Amperes

710000743

$8.02

PF1

Little Fuse, 7.5 Amperes

710000743

$8.02

PF1

Little Fuse, 10 Amperes

710000744

$7.24

PF1

Little Fuse, 10 Amperes

710000744

$7.24

PF1

Little Fuse, 15 Ampere

710000745

$6.77

PF1

Little Fuse, 15 Ampere

710000745

$6.77

PF1

Little Fuse, 15 Ampere

710000745

$6.77

PF1

Little Fuse, 30 Amperes

710000747

$6.77

PF1

Little Fuse, 30 Amperes

710000747

$6.77

PF1

Fuse, 25 Amps

710002590

$18.43

PF1

Cap

710000840

$5.49

PF1

Relay, 30 AMP

515176774

$19.20

PF1

Relay, 30 AMP

515176774

$19.20

PF1

Relay

715900824

$16.22

PF1

Relay

715900824

$16.22

PF1

Relay

715900824

$16.22

PF1

Wire Seal

278000999

$2.55

PF1

Seal

415128501

$1.51

PF1

Female Terminal

710000837

$4.32

PF1

Female Terminal

710000836

$5.46

PF3

Fuse Holder Cap

278001326

$6.03

PF3

Cushion

278000805

$3.22

PF3

Fuse

710001613

$7.24

PF3

Fuse Holder

278001325

$8.57

PF3

Female Terminal

710000357

$6.03

PGH

Housing

710002278

$7.98

PGH

Lock

710002279

$4.60

PGH

Wire Seal

710001427

$1.83

PGH

Female Terminal

710000918

$5.10

PGL

Housing

710002278

$7.98

PGL

Lock

710002279

$4.60

PGL

Wire Seal

710001427

$1.83

PGL

Female Terminal

710000918

$5.10

PPS

Female Terminal Housing 6 Circuits

278002299

$8.85

PPS

Female Terminal

710001119

$4.32

RD1

Female Housing, 3 Circuits

710000879

$21.42

RD1

Cap

710000882

$9.19

RD1

Seal

710001932

$3.15

RD1

Terminal

710001934

$4.51

SB

Housing

710002177

$3.98

SB

Lock

710002043

$0.85

SB

Seal

278001482

$2.55

SB

Female Terminal

710001134

$6.03

SPSW

Housing

710002000

$5.86

SPSW

Terminal

710003047

$3.68

SS

Female Housing, 2 Circuits

515177192

$6.32

SS

Wire Seal

710001163

$5.10

SS

Female Terminal

710001164

$5.92

STSW

Seal

409012300

$4.38

STSW

Female Terminal

409012100

$3.73

2-Pieces Fixing Tie Rap for Edges | Not Shown

293750058

$6.45

Dart Tie Rap 200MM

710003168

$5.72

Tie Rap Clip

293750062

$7.37

Tie-Rap Clip

710002896

$4.60

Protector Tube

415129879

Unavailable

FL1

Fuse Wire 31-40AMP

715002537

$23.05

FL2

Fuse Link 41-50AMP

715002538

$23.05

FL3

Fuse Wire 31-40AMP

715002537

$23.05
