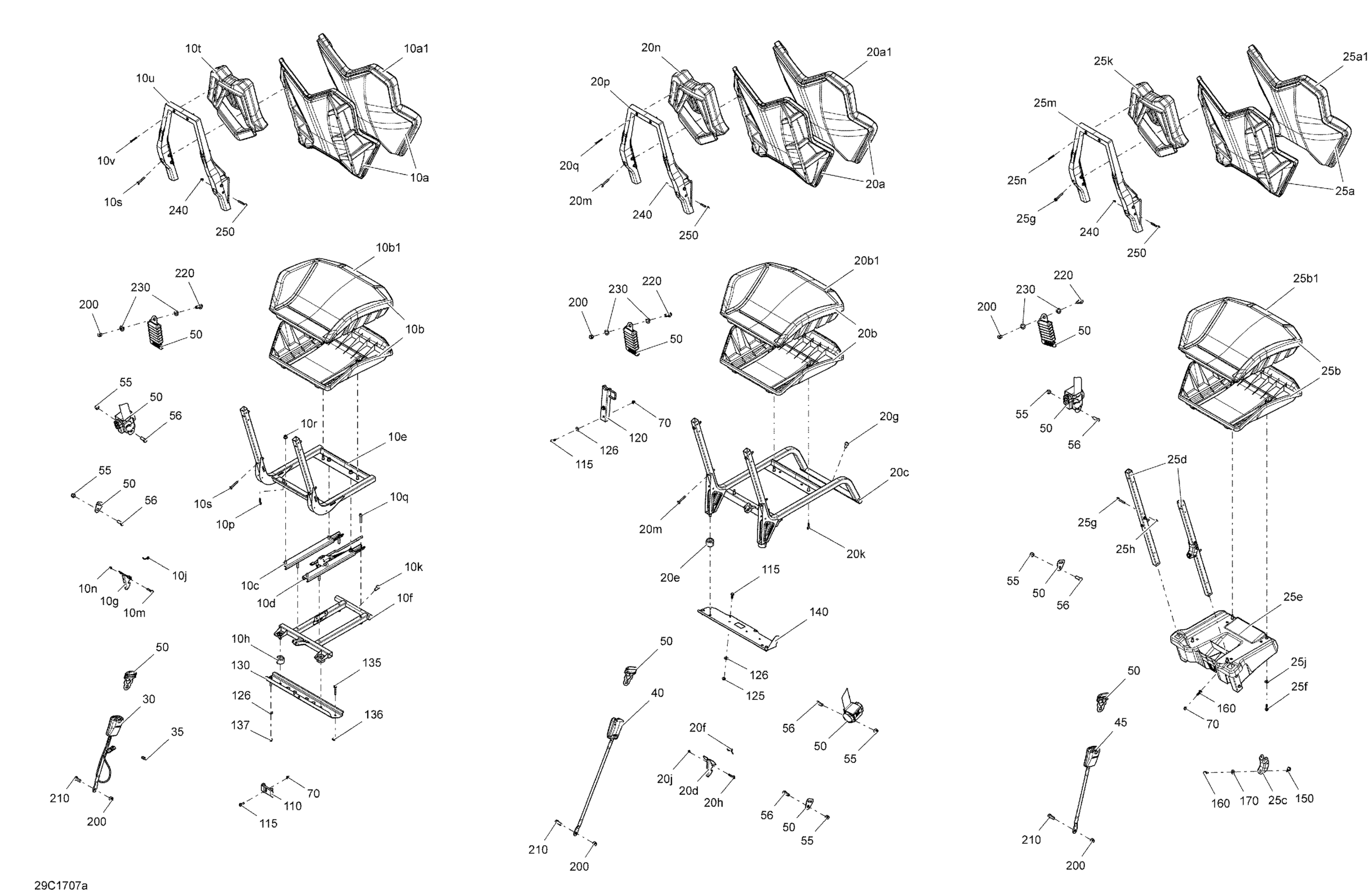

Can-Am Maverick MAX, 2017 Seat - 1000R EFI Diagram

#

Description
Price

10a

Backrest Ass'y | Includes 2 to 3

703500945

$378.43

10a

BACKREST - Call your local BRP dealership | Package XMR, XXC

708002271

Unavailable

10a1

Backrest Cover

708000675

$92.28

10a1

COVER - Call your local BRP dealership | Package XMR, XXC

708002272

Unavailable

10b

Cushion Ass'y | Includes 4 to 5

703500943

$332.28

10b

Cushion Ass'y Gulfstream Blue | Package XMR, XXC

708002273

$235.35

10b1

Seat Cover

708001103

$110.74

10b1

Seat Cover Gulfstream Blue | Package XMR, XXC

708002274

$124.58

10c

LH Rail

708000848

$50.74

10d

RH Rail

708001739

$36.89

10e

Operator Seat Frame

708001356

$313.82

10f

Seat Member

708001174

$78.43

10g

Seat Latch

708001355

$2.75

10h

Rubber Bumper

708001671

$2.31

10j

Spring

708000921

$1.15

10k

Socket Screw M10 X 16

205501644

$3.38

10m

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

10n

Hex. Elastic Stop Nut M6

232561600

$0.92

10p

Hex. Flange Screw M6 X 25

207562544

$1.39

10q

Socket Head Screw M8 X 1.25 X 40

205084044

$2.80

10r

Hex. Flange Elastic Nut M8

233281414

$1.14

10s

Hex. Flange Screw M6

250000672

$1.74

10t

Head Rest

708001074

$96.89

10u

Seat Support

708001245

$27.66

10v

Hex. Flange Screw K50 X 40

250000897

Unavailable

20a

Backrest Ass'y | Includes 2 to 3

703500945

$378.43

20a

BACKREST - Call your local BRP dealership | Package XMR, XXC

708002271

Unavailable

20a1

Backrest Cover

708000675

$92.28

20a1

COVER - Call your local BRP dealership | Package XMR, XXC

708002272

Unavailable

20b

Cushion Ass'y | Includes 4 to 5

703500943

$332.28

20b

Cushion Ass'y Gulfstream Blue | Package XMR, XXC

708002273

$235.35

20b1

Seat Cover

708001103

$110.74

20b1

Seat Cover Gulfstream Blue | Package XMR, XXC

708002274

$124.58

20c

Passenger Seat Frame

708001357

$304.58

20d

Seat Latch

708001355

$2.75

20e

Rubber Bumper

708001671

$2.31

20f

Spring

708000921

$1.15

20g

Socket Screw M10 X 16

205501644

$3.38

20h

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

20j

Hex. Elastic Stop Nut M6

232561600

$0.92

20k

Hex. Flange Screw M6 X 25

207562544

$1.39

20m

Hex. Flange Screw M6

250000672

$1.74

20n

Head Rest

708001074

$96.89

20p

Seat Support

708001245

$27.66

20q

Hex. Flange Screw K50 X 40

250000897

Unavailable

25a

Backrest Ass'y | Includes 2 to 3

703500945

$378.43

25a

BACKREST - Call your local BRP dealership | Package XMR, XXC

708002271

Unavailable

25a1

Backrest Cover

708000675

$92.28

25a1

COVER - Call your local BRP dealership | Package XMR, XXC

708002272

Unavailable

25b

Cushion Ass'y | Includes 4 to 5

703500943

$332.28

25b

Cushion Ass'y Gulfstream Blue | Package XMR, XXC

708002273

$235.35

25b1

Seat Cover

708001103

$110.74

25b1

Seat Cover Gulfstream Blue | Package XMR, XXC

708002274

$124.58

25c

Rear Anchor

708001474

$18.43

25d

Side Tube

708001476

$32.28

25e

Seat Support

708001198

$64.58

25f

Hex. Flange Screw M6 X 25

207562544

$1.39

25g

Hex. Flange Screw M6

250000672

$1.74

25h

Hex. Elastic Flange Nut M6

233161464

$0.83

25j

Stainless Steel Flat Washer

234062670

$1.74

25k

Head Rest

708001074

$96.89

25m

Seat Support

708001245

$27.66

25n

Hex. Flange Screw K50 X 40

250000897

Unavailable

30

Driver Buckle Side

708002061

$69.20

35

Tie Wrap 368 mm

293750008

$0.85

40

Passenger Buckle Side

708002064

$64.58

45

Rear Passenger Buckle Side

708002063

$64.58

50

Safety Belt | Model-North America, International

708001854

$272.28

55

Nylon Insert Hex. Lock Nut 7/16-20

250100135

$5.84

56

Hex. Cap Screw 7/16'' X 1'' | Europe

250000521

$1.56

70

Threaded Insert M6 X 1.0

250100242

Unavailable

110

Anchor

708001212

$18.43

115

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

120

Anchor

708001213

$23.05

125

Hex. Flange Nut M6

233061414

$1.34

126

Stainless Steel Flat Washer

234062670

$1.74

130

Seat Support

708001214

$64.58

135

Hex. Flange Screw M6 X 1.0 X 45

250000213

$2.06

136

Panel Nut M6 X 1.0

250100171

$3.21

137

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

140

Support

708001804

$46.12

150

Panel Nut M6 X 1.0

250100171

$3.21

160

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

170

Conical Spring Washer M8

234281474

$1.25

200

Nylon Insert Hex. Lock Nut 7/16-20

250100135

$5.84

210

Hex. Cap Screw 7/16'' X 1'' | Europe

250000521

$1.56

220

Safety Belt Screw

708000890

$3.68

230

Position Washer

708000891

$1.15

240

Hex. Elastic Flange Nut M6

233161464

$0.83

250

Hex. Flange Screw M6

250000672

$1.74
