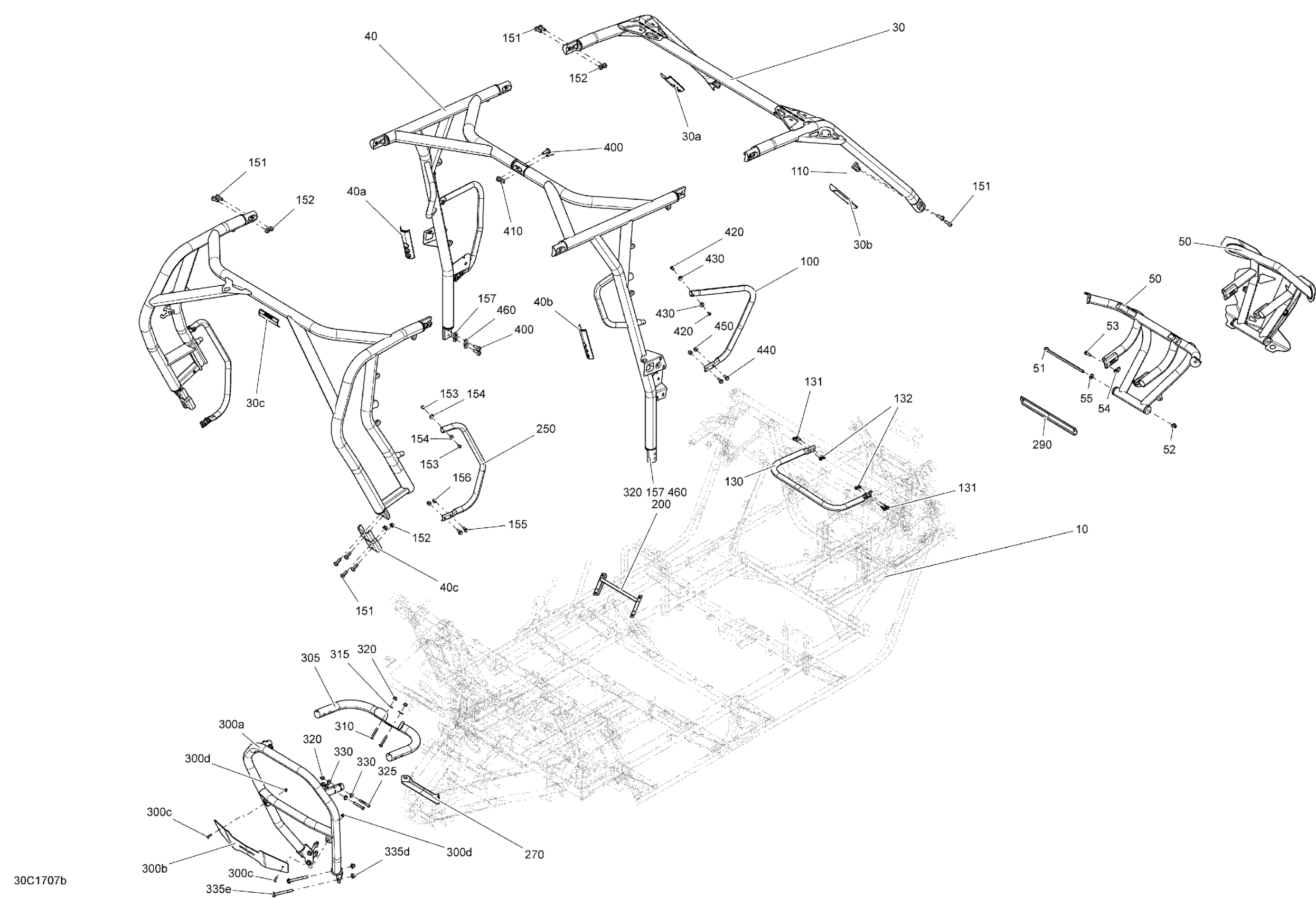

Can-Am Maverick MAX, 2017 Frame - All Models Diagram

#

Description
Price

10

Frame Kit

715003946

$2,969.99

10

FRAME KIT - Call your local BRP dealership | Package XDS XRS, XDS DPS, XDS STD

715003949

Unavailable

30

Deep Black, Cage Ass'y | Includes 2 to 8

715004812

$1,039.99

30

Can-Am Red, Cage Kit | Includes 30 to 30c This part replaces 715003427.

715004819

Unavailable

30

Gulfstream Blue, Cage Ass'y | Blue Cage Model

715004818

$1,039.99

30a

Warning Label

704903679

Unavailable

30b

Warning Label

704903680

Unavailable

30c

Warning Label

704903492

Unavailable

40

Black Central Cage Kit

715003902

$779.99

40

Red Central Cage Kit | Models with Red Cage

715003906

$779.99

40

Blue Central Cage Kit | Blue Cage Model

715003904

$779.99

40a

Warning Label

704903679

Unavailable

40b

Warning Label

704903680

Unavailable

40b

Hex. Flange Nut M8

233181414

$0.91

40c

Rear Hand Mounting

705203514

$18.43

50

FRONT BUMPER BLACK - Call your local BRP dealership

715001645

Unavailable

50

FRONT BUMPER ASS'Y - Call your local BRP dealership | Model-North America, International

705204266

Unavailable

51

Hex. Flange Screw

250000597

$10.30

52

Hex. Flange Elastic Nut M10

233201436

$1.74

53

SCREW-HEX.CAP DIN.933 S.GRIP - Call your local BRP dealership

207382544

Unavailable

54

Panel Nut M8 X 1.25

250100118

$1.63

55

Conical Spring Washer 10 mm

234201474

$1.39

100

Black RH Front Side Protector Tube

705203642

$46.12

100

Black LH Front Side Protector Tube

705203643

$46.12

100

RED RH FRONT SIDE PROTECTOR TUBE - Call your local BRP dealership | Models with Red Cage

705204069

Unavailable

100

RED LH FRONT SIDE PROTECTOR TUBE - Call your local BRP dealership | Models with Red Cage

705204068

Unavailable

100

BLUE RH FRONT SIDE PROTECTOR TUBE - Call your local BRP dealership | Blue Cage Model

705204819

Unavailable

100

BLUE LH FRONT SIDE PROTECTOR TUBE - Call your local BRP dealership | Blue Cage Model

705204818

Unavailable

110

Binding Block

705203415

$16.89

130

Black Handle

705203332

$129.20

131

Hex. Flange Screw M6 X 20

207662046

$1.74

132

Elastic Flange Nut M6 X 1.0

233261416

$1.74

151

Screw Pan M10 X 30

250000848

$1.56

152

Hex. Elastic Flange Nut , M10 X 1.5

233101464

$1.74

153

Torx Truss M6X14

250000789

$4.41

154

Offset Washer

705202223

$4.98

155

Hex. Flange Screw M8 X 20

207682044

$0.92

156

Hex. Flange Elastic Nut M8

233281414

$1.14

157

Washer

250200154

$3.58

250

Black LH Rear Side Protector Tube

705203649

$46.12

250

Black RH Rear Side Protector Tube

705203652

$46.12

250

RED LH REAR SIDE PROTECTOR TUBE - Call your local BRP dealership | Models with Red Cage

705204064

Unavailable

250

RED RH REAR SIDE PROTECTOR TUBE - Call your local BRP dealership | Models with Red Cage

705204065

Unavailable

250

SIDE PROTECT - Call your local BRP dealership | Blue Cage Model

705204820

Unavailable

250

BLUE RH REAR SIDE PROTECTOR TUBE - Call your local BRP dealership | Blue Cage Model

705204821

Unavailable

270

REINFORCEMENT - Call your local BRP dealership

705203695

Unavailable

290

FRONT SUSPENSION LINK - Call your local BRP dealership

705203454

$20.74

300a

REAR BUMPER RED - Call your local BRP dealership | Package XDSXRS

705204767

Unavailable

300b

REAR PROTECTOR - Call your local BRP dealership | Package XDSXRS

705203282

Unavailable

300c

Torx Screw M6 X 20, Stainless | Package XDSXRS

250000234

$2.90

300d

Hex. Flange Elastic Nut M6

233261494

$1.26

305

UPPER ARM RED - Call your local BRP dealership | Package XDSXRS

705204766

Unavailable

310

Torx Truss Screw M8 X 50

250000761

$6.18

315

Flat Washer 8 mm

234082410

$1.11

320

Elastic Flange Nut M8

233281464

$0.83

325

Torx Screw Scotch Grip M8X60

250000777

$7.28

330

WASHER - Call your local BRP dealership | Package XDSXRS

708300563

Unavailable

335d

Hex. Flange Elastic Nut M10

233201436

$1.74

335e

Hex. Flange Screw M10 X 90

207609046

$5.54

400

Screw Pan M10 X 30

250000848

$1.56

410

Hex. Elastic Flange Nut , M10 X 1.5

233101464

$1.74

420

Torx Truss M6X14

250000789

$4.41

430

Offset Washer

705202223

$4.98

440

Hex. Flange Screw M8 X 20

207682044

$0.92

450

Hex. Flange Elastic Nut M8

233281414

$1.14

460

Washer

250200154

$3.58
