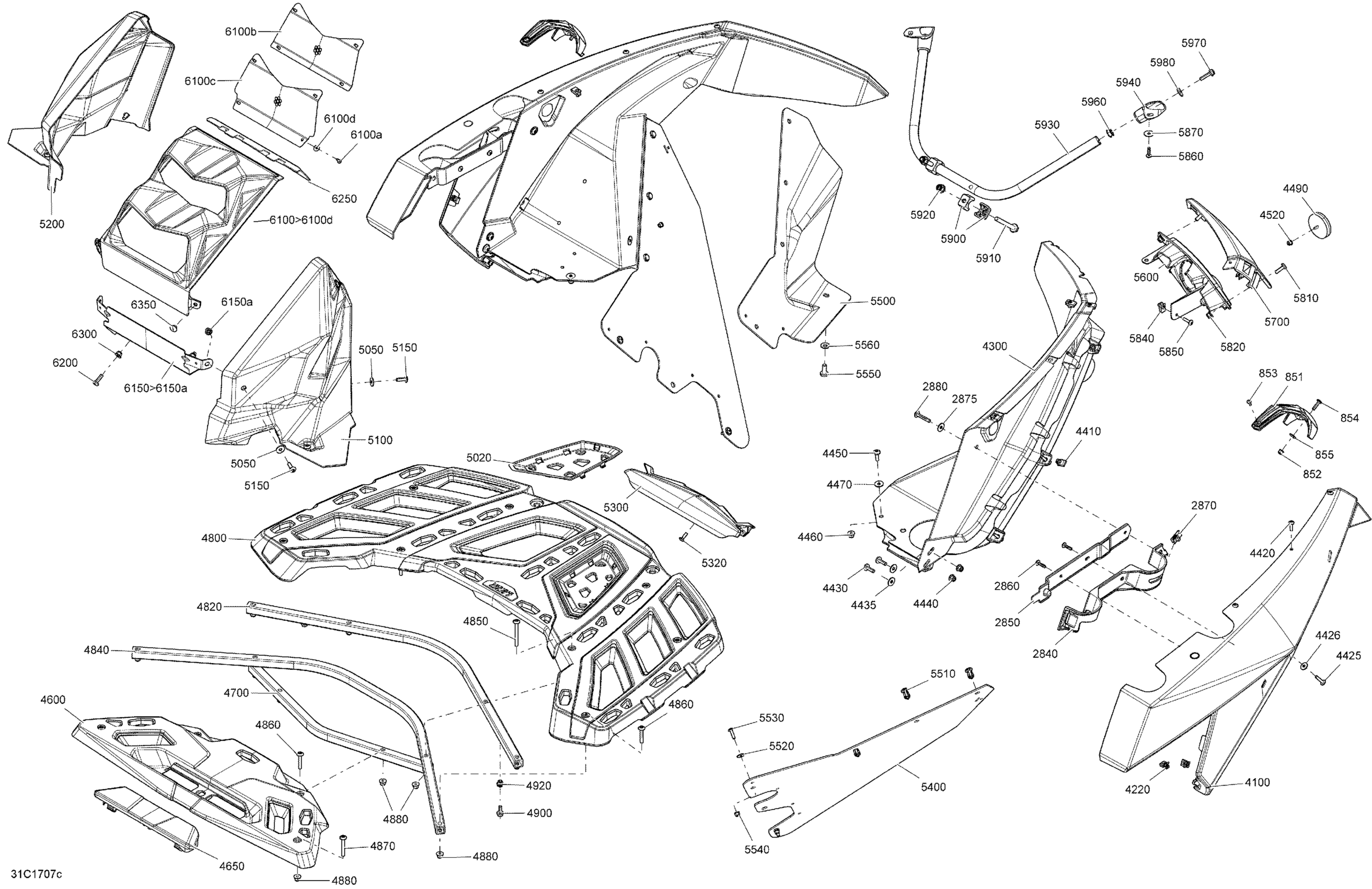

Can-Am Maverick MAX, 2017 Body And Accessories - Rear Section All Models Diagram

CAP - Call your local BRP dealership | Package XMR Silver/Black/Blue

707001943

Unavailable

Elastic Flange Nut M5

233251494

$1.74

Torx Truss Screw K40 X 12

250000577

$1.74

Torx Screw M5 X 20

250000792

$1.74

Flat Washer 5 mm, Stainless

234052600

$0.64

LH REAR FENDER SUPPORT - Call your local BRP dealership

705007918

Unavailable

RH REAR FENDER SUPPORT - Call your local BRP dealership

705007919

$11.52

Support Plate

705007917

$12.91

Torx Screw Truss Head K50X20 T20

250000760

$1.74

Panel Nut M6 X 1.0

250100198

$1.73

Stainless Steel Flat Washer

234062670

$1.74

Black, Torx Screw M6 X 35

250000646

$0.78

FENDER REAR L B-CF - Call your local BRP dealership

705008540

Unavailable

FENDER REAR R B-CF - Call your local BRP dealership

705008541

Unavailable

Hyper Silver, LH Rear Fender | Package XDSDPS Silver

705011822

$379.97

Painted Hyper Silver Rh Rear Fender | Package XDSDPS Silver

705011824

$379.97

FENDER REAR L B-365 - Call your local BRP dealership

705008949

Unavailable

Quarry Gray RH Rear Fender

705008951

$128.43

Painted Timeless Black Lh Rear Fender | Package XMR Silver

705011819

$379.97

Painted Timeless Black Rh Rear Fender | Package XMR Silver

705011820

$379.97

Edge Clip

517302785

$0.70

INNER FENDER - Call your local BRP dealership

705009445

Unavailable

LH Inner Fender

705009548

$55.35

RH Inner Fender

705009549

$55.35

Panel Nut M5 X 0.8

250000958

$3.48

Torx Screw M5 X 20

250000724

$1.39

Torx Screw M5 X 25

250000762

$1.74

Washer M5

250200025

$0.61

Torx Screw M6 X 20

250000712

$1.74

Stainless Steel Flat Washer

234062670

$1.74

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Torx Screw M6 X 20

250000712

$1.74

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Stainless Steel Flat Washer

234062670

$1.74

Red Reflector

705011221

$12.32

Elastic Flange Nut M5

233251494

$1.74

Bagage Central Rack

705006128

$50.74

Central Bagage Rack Cap

705006132

$9.29

Bagage Rack Tube

705006279

$35.35

Rear Rack KIT

715002367

Unavailable

Sectional Bent Tube

705016640

$35.35

Bent Sectional Tube

705016092

$39.20

Torx Screw M6 X 60

250000648

$6.15

Black, Torx Screw M6 X 35

250000646

$0.78

Torx Screw M6 X 45

250000647

$4.76

Flange Elastic Nut M6

233261434

$3.61

Hex. Flange Screw M6 X 16, Scotch Grip

207561634

$1.74

Threaded Insert M6 X 1.0

250100242

Unavailable

LH Bagage Rack Cover

705006713

$9.29

RH BAGAGE RACK COVER - Call your local BRP dealership

705006714

Unavailable

Stainless Steel Flat Washer

234062670

$1.74

LH INTERCOOLER COVER - Call your local BRP dealership

705009046

Unavailable

Torx Screw M6 X 20

250000722

$1.34

RH INTERCOOLER COVER - Call your local BRP dealership

705009047

Unavailable

LOGO Support

705005994

$13.83

Torx Screw K50 X 16

250000720

$1.39

Deflector

705007828

$51.51

DEFLECTOR - Call your local BRP dealership

705009143

Unavailable

Tuflok Plastic Rivet

293150230

$1.21

Washer M5

250200025

$0.61

Torx Screw M5 X 20

250000724

$1.39

Elastic Flange Nut M5

233251494

$1.74

Hex. Screw M8 X 20

236282054

$1.45

Conical Spring Washer M8

234281474

$1.25

LH Rear Facia | North America, International

705004731

$16.89

RH Rear Facia | North America, International

705004732

$16.89

PAINTED HYPER SILVER LEFT REAR TRIM - Call your local BRP dealership | Package XDSDPS Silver

705011835

Unavailable

PAINTED HYPER SILVER RIGHT REAR TRIM - Call your local BRP dealership | Package XDSDPS Silver

705011836

Unavailable

TRIM_HEADLIGHT REAR L B-CF - Call your local BRP dealership

705008542

Unavailable

TRIM_HEADLIGHT REAR R B-CF - Call your local BRP dealership

705008543

Unavailable

Painted Timeless Black Lh Rear Trim | Package XMR Silver

705011833

$116.89

TIMELESS BLACK RH TRIM - Call your local BRP dealership | Package XMR Silver

705009732

Unavailable

TRIM_HEADLIGHT REAR L B-365 - Call your local BRP dealership

705008952

$11.42

TRIM_HEADLIGHT REAR R B-365 - Call your local BRP dealership

705008953

Unavailable

Torx Screw M6 X 20

250000712

$1.74

Flange Elastic Nut M6

233261434

$3.61

Panel Nut M5 X 0.8

250000958

$3.48

Torx Screw M5 X 20

250000724

$1.39

Torx Screw Truss Head K50X20 T20

250000760

$1.74

Flat Washer

224060201

$1.15

Rear Support Facia Clip

705007044

$2.99

Hex. Flange Screw M8 X 70

207687044

$6.11

Hex. Flange Elastic Nut M8

233281414

$1.14

Body Tube

705007299

$62.28

LH Rear Facia Support

705007045

$10.14

RH Rear Facia Support

705007046

$10.14

TUBE CONNECTOR - Call your local BRP dealership

705007047

Unavailable

Hex. Flange Screw M6 X 25

207662544

$0.53

Flat Washer

224061201

$1.11

SCOOP ASS'Y - Call your local BRP dealership

705204547

$106.89

Screw K40 X 10

241140060

$1.25

Upper Grille

705009260

$54.58

Lower Grille

705009261

Unavailable

WASHER - Call your local BRP dealership

391301000

$0.65

Air Duct Support

705009262

Unavailable

Threaded Insert M6 X 1.0

250100242

Unavailable

Torx Screw M6 X 20

250000712

$1.74

REAR SUPPORT - Call your local BRP dealership

705009343

Unavailable

Flange Elastic Nut M6

233261434

$3.61

Pop Rivet 3/16"

293150103

$0.54
