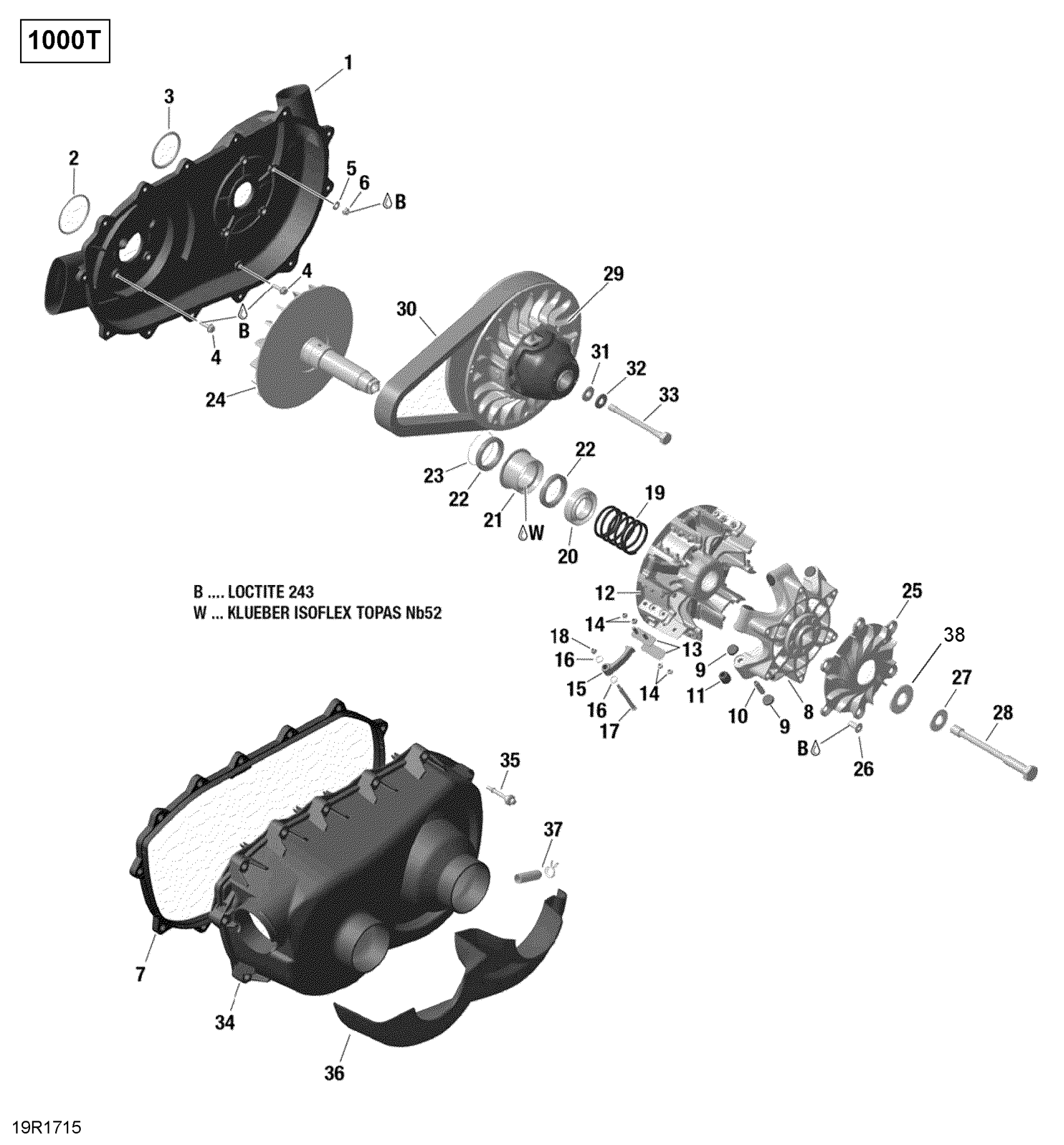

Can-Am Maverick MAX, 2017 Transmission - Turbo Diagram

#

Description
Price

1

CVT Air Guide

420612304

$194.99

2

O-Ring

420430408

$5.29

3

O-Ring

420631089

$5.29

4

Hex.Screw M6 X 20

420441311

$5.18

5

Flat Washer

224061121

$0.53

6

Elastic Stop Nut M6

232561434

$1.99

7

Gasket

420430126

$41.49

8>11

Governor Cup Ass'y | Includes 8 to 11

420280669

$439.99

9

Slider Shoe Set

420281296

$65.49

10

Not Available As Spare Part - Friction Washer

Unavailable

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Outher Haft Ass'y | Includes 12 to 14

420280464

$435.99

13

Slide Plate

420651763

$43.49

14

Elastic Stop Nut M5

232551414

$0.87

15a

Centrifugal Lever Kit (Set Of 6) | Includes 15a to 18

420248649

$340.49

15b

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Compression Spring, Drive Pulley

420238615

$36.99

20

Seat Spring

420627578

$35.99

21

Drive Pulley Clutch

420257191

$149.99

22

Ball Bearing

420632377

$49.99

23

Retaining Ring

420245951

$5.31

24

Inner Half

420280579

$328.49

25

Fan

420864910

$62.49

26

Flat Head Screw M8 X 20

420641407

$4.34

27

Washer

420245690

$4.86

28

Hex. Screw M14 X 1.5 X 153.5

420841091

$25.99

29

Not Available As Spare Part - Friction Washer

Unavailable

30

V Belt

422280367

$206.49

31

-Thrust Washer

420427770

$23.99

32

Spring Washer

420445441

$1.25

33

Hex. Screw M10 X 110

420441485

$12.18

34

Variator Cover | Includes 38

420212285

$179.99

35

Hex Screw M6 X 30

420440568

$8.58

36

Heat Protection Mat

715900358

$49.99

37

Drain Plug Kit

707001179

$9.63

38

Spring Washer

420282826

$59.49
