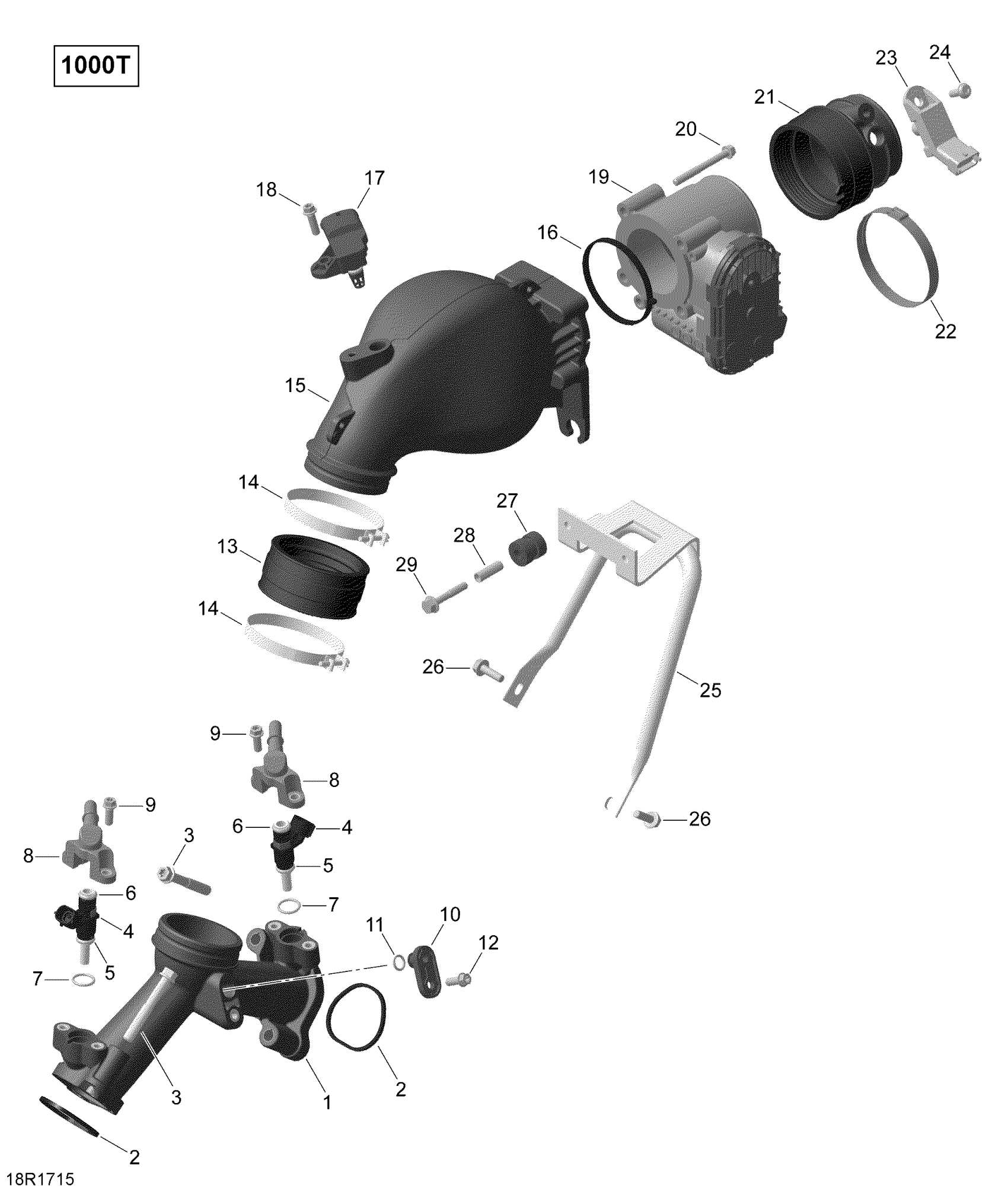

Can-Am Maverick MAX, 2017 Air Intake Manifold and Throttle Body - Turbo Diagram

#

Description
Price

1

Air Intake Manifold

420667520

$73.99

2

Gasket

420630642

$5.39

3

Torx Flange Screw M8 X 55

420641213

$7.41

4>6

Injection Valve Ass'y | Includes 4 to 6

420274255

$149.99

5

O-Ring

420431890

$7.49

6

O-Ring

420631220

$14.28

7

O-Ring

420631296

$0.76

8

Fuel Rail

420874901

$24.49

9

Torx Flange Screw M6 X 16

420641048

$2.96

10

Cover

420460980

$2.68

11

O-Ring

420230461

$2.29

12

Torx Flange Screw M6 X 16

420641048

$2.96

13

Intake Neck

420267042

$17.05

14

Clamp

420251209

$8.57

15

AIR INLET MANIFOLD - Call your local BRP dealership

420667760

$249.99

16

Gasket | Included in gasket kit

420431900

$5.40

17

Pressure Sensor And Air Temperature

515178563

$159.99

18

Torx Flange Screw M6 X 20

420441835

$3.17

19

Throttle Body Socket Ass'y

420892596

$466.49

20

Torx Flange Screw M6 X 55

420440702

$3.06

21

Connecting Socket Ass'Y

420867551

$58.49

22

Hose Clamp

420251483

$17.05

23

Pressure Sensor

420274058

$124.99

24

Torx Flange Screw M6 X 16

420641588

$2.11

25

SUPPORT - Call your local BRP dealership

420651525

Unavailable

26

Hex.Screw M6 X 20

420441311

$5.18

27

Rubber Bracket

420660090

$4.12

28

Spacer

420847971

$7.41

29

Hex. Screw M6 X 35

420441457

$3.91
