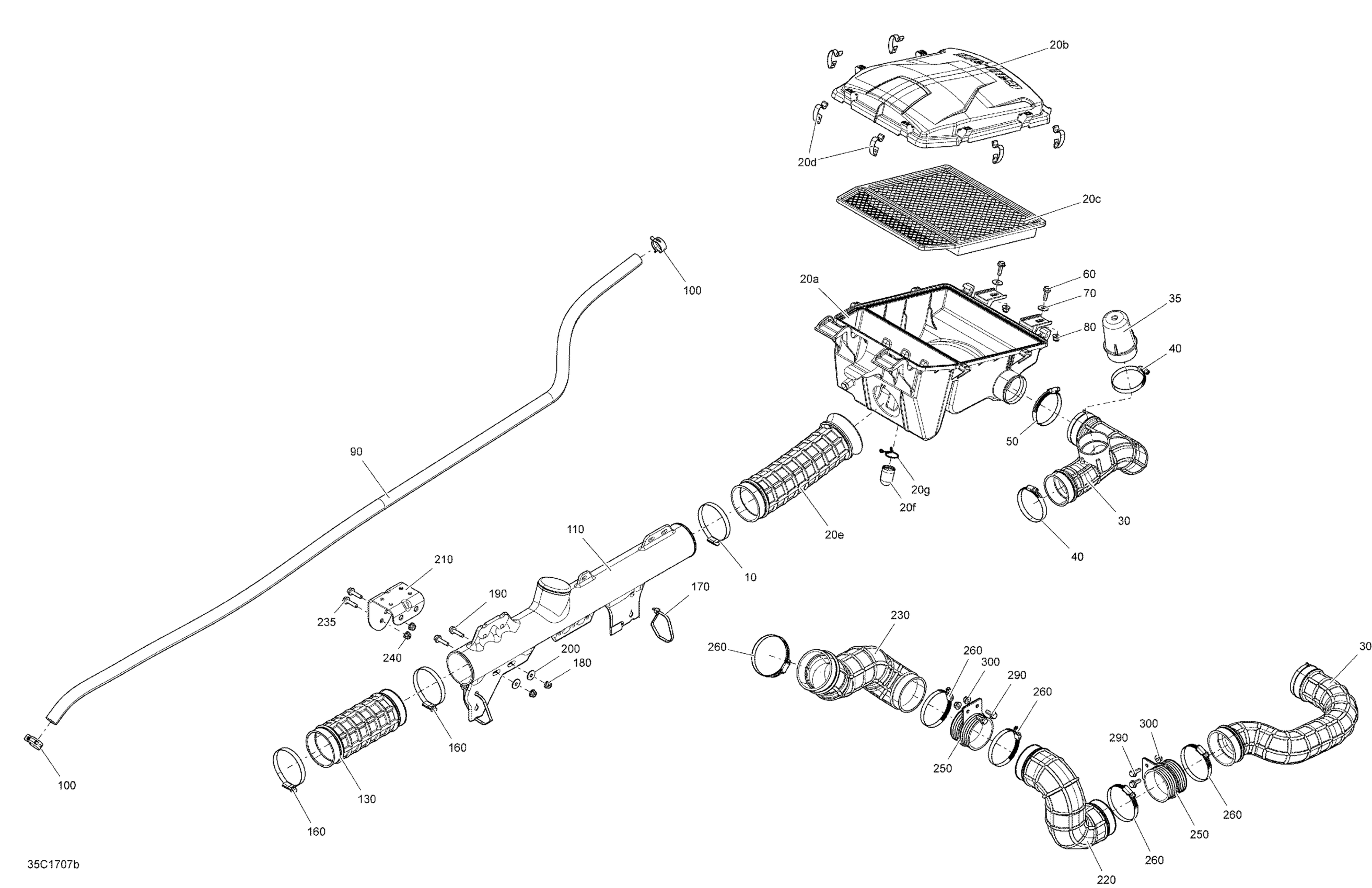

Can-Am Maverick MAX, 2017 Air Intake - 1000R EFI Diagram

#

Description
Price

10

Norma Clamp

293650091

$4.60

20a

Air Intake Silencer Base

707800517

$50.74

20b

Air Intake Silencer Cover

707800326

$32.28

20c

Air Filter

707800327

$50.34

20d

Cover Bracket

707800249

$8.45

20e

Intake Adaptor

707800329

$46.12

20f

Drain Tube

707800080

$7.37

20g

Retainer Clip

707800278

$12.91

30

Intake Adaptor

707800532

$59.97

30

Intake Adaptor

707800576

$59.97

35

Intake Adaptor Tank

707800533

$4.62

40

Norma Clamp

293650079

$8.89

50

Norma Clamp

293650079

$8.89

60

Hex. Flange Screw M6 X 20

207662044

$1.66

70

Flat Washer

250200082

$0.35

80

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

90

Was 707800411 Hose 15.88 mm

219704438

$11.98

100

Norma Spring Clamp

293650213

$3.11

110

Intake Adaptor

707800515

$64.58

130

Intake Adaptor

707800541

$59.97

160

Norma Clamp

293650091

$4.60

170

Tie Wrap 368 mm

293750008

$0.85

180

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

190

Hex. Flange Screw M6 X 25

207662544

$0.53

200

Flat Washer

250200082

$0.35

210

Rear Support

707800560

$16.12

220

Air Intake

707800577

$36.89

230

Air Intake

707800578

$36.89

235

Hex. Flange Screw M6 X 25

207662544

$0.53

240

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

250

Adaptor | XMR

707001383

$10.98

260

Norma Clamp

293650091

$4.60

290

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

300

Hex. Flange Nut M6

233061414

$1.34
