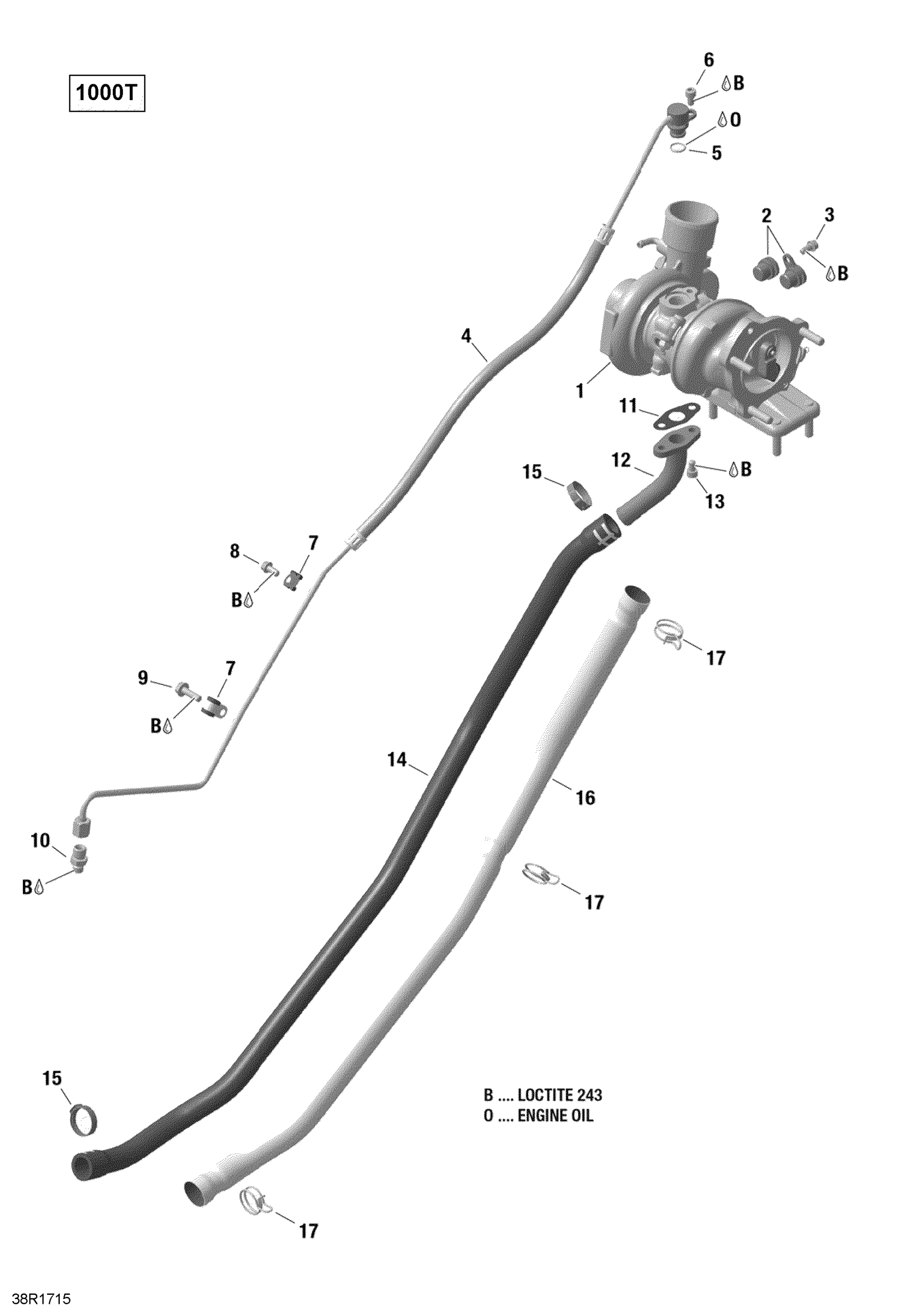

Can-Am Maverick MAX, 2017 Turbocharger Diagram

#

Description
Price

1

Turbocharger

420893840

$1,869.97

2

PLUG - Call your local BRP dealership

420622030

Unavailable

3

Hex. Flange Screw M6 X 12

420440149

$2.06

4

PRESSURE OIL LINE - Call your local BRP dealership | Include 7

420456353

Unavailable

5

O-Ring

420650928

$3.11

6

Torx Flange Screw M6 X 16

420440164

$2.31

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Hex. Flange Screw M6 X 12

420440149

$2.06

9

Hex.Screw M6 X 20

420441311

$4.24

10

Adapter M10/M12

420456420

$18.43

11

Gasket | Included in gasket kit

420631205

$3.85

12

OIL TUBE - Call your local BRP dealership

420456400

Unavailable

13

Torx Flange Screw M6 X 16

420440164

$2.31

14

RETURN OIL LINE - Call your local BRP dealership

420456360

Unavailable

15

Gear Clamp

420851668

$6.28

16

PROTECTION TUBE - Call your local BRP dealership

420860652

Unavailable

17

CLAMP - Call your local BRP dealership

420851440

Unavailable
