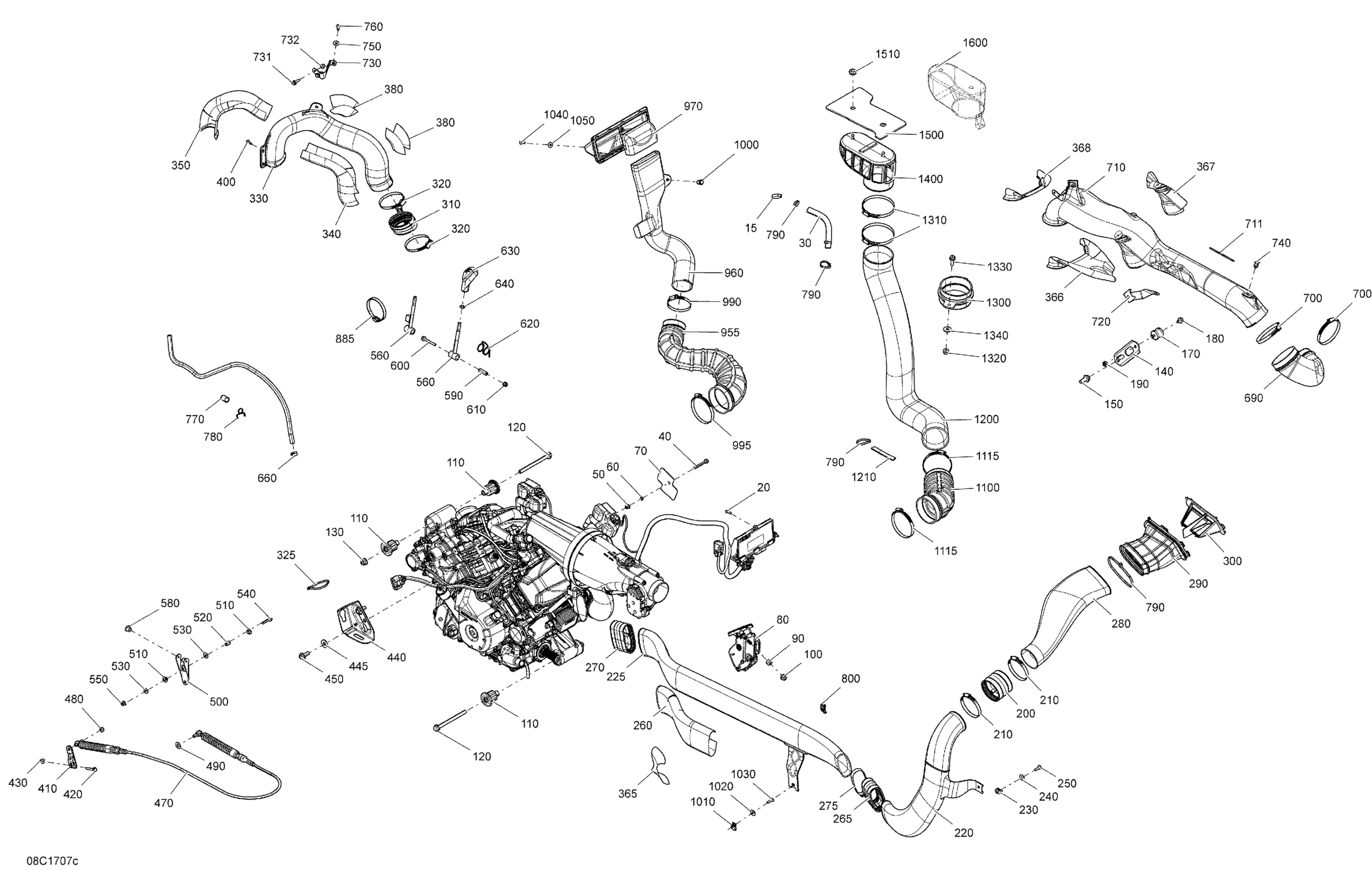

Can-Am Maverick MAX, 2017 Engine - Turbo Diagram

#

Description
Price

15

Oeticker Gear Clamp, 25.6-706R

509000442

$4.12

20

Torx Screw K50 X 16

250000720

$1.39

30

Tubing 16 Mm 1000Mm Long

219704408

$6.23

40

Hex. Flange Screw M6 X 50

207665044

$3.38

50

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

60

External Serrated Lock Washer 6 mm

234461608

$0.92

70

Insulator Pad

710000073

$11.06

80

Accelerator Pedal

707001166

$281.51

90

Bushing

707000848

$1.08

100

Hex. Flange Nut M8

233081416

$1.63

110

Anti Vibration Buffer

707001170

$23.05

120

Hex. Flange Screw M10 X 125

230602546

$6.08

130

Hex. Flange Elastic Nut M10

233201436

$1.74

140

Upper Engine Bracket

707000707

$5.54

150

Hex. Flange Screw M10 X 25

207602544

$1.33

170

Rubber Isolator

707000949

$9.00

180

Flange Screw M8 x 10, Scotch Grip

207581046

$3.99

190

Hex. Elastic Stop Nut M8

232581414

$0.47

200

Flexibale Adaptor

707002585

$14.75

210

Norma Clamp

293650091

$4.60

220

Air Inlet

707001339

$16.89

225

Air Inlet

707001228

$50.74

230

Panel Nut M6 X 1.0

250100198

$1.73

240

Flat Washer

250200082

$0.35

250

Torx Screw M6 X 20

250000722

$1.34

260

Reflector

707001346

$27.66

265

Flexibale Adaptor

707002585

$14.75

270

Flexibale Adaptor

707002585

$14.75

275

Norma Clamp

293650091

$4.60

280

Primary Air Intake

707000909

$23.05

290

Adaptor

707000908

$36.89

300

CVT Filter

707001344

$14.75

310

Adaptor

707001274

$15.35

320

Norma Gear Clamp

293650118

$9.74

325

Tie Wrap 368 mm

293750008

$0.85

330

CVT Outlet

707001243

$64.58

340

Reflector

707001284

$7.69

350

Reflector

707001360

$7.69

365

Reflective Sheet

707000991

$9.29

366

REFLECTIVE SHEET - Call your local BRP dealership

707001745

Unavailable

367

REFLECTIVE SHEET - Call your local BRP dealership

707001746

Unavailable

368

REFLECTIVE SHEET - Call your local BRP dealership

707001752

Unavailable

380

Reflective Sheet

707000991

$9.29

400

Screw M4 X 16

250000725

$2.87

410

Lever

707000911

$18.43

420

Hex. Flange Screw M6 X 35

207663544

$0.74

430

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

440

Cable Support | Engine 1000

707000919

Unavailable

445

Washer

503190439

$5.82

450

Hex. Flange Screw M10 X 25

207602544

$1.33

470

Shifting Cable

707001283

$69.20

480

Hex. Elastic Stop Nut M8

232581414

$0.47

490

Flat Washer 10 mm

234001410

$0.98

500

Lower Lever Arm

707000828

$16.89

510

Flanged Bushing

707000847

$1.00

520

Bushing

707000801

$2.48

530

Flat Washer 6 mm

234062410

$0.64

540

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

550

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

560

Upper Lever Arm

707000711

$36.89

580

Flanged Bushing

707000869

$2.20

590

Bushing

707001376

$4.22

600

Hex. Flange Screw M6 X 50

207665044

$3.38

610

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

620

Lever Arm Spring

707000750

$2.75

630

Lever Handle

707000284

$18.43

640

Hex. Jam Nut M8

232180491

$6.18

660

Spring Clamp

414415200

$0.83

690

CVT OUTLET - Call your local BRP dealership

707001732

Unavailable

700

Norma Clamp

514052924

$10.58

710

CVT OUTLET - Call your local BRP dealership

707001733

Unavailable

711

Gasket, Neoprene 2000Mm Long

219704476

$12.64

720

FRONT SUPPORT - Call your local BRP dealership

707001735

Unavailable

730

Rear Support

707001232

$8.46

731

Hex. Flange Screw M6 X 20

207662044

$1.66

732

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

740

Tuflok Plastic Rivet

293150230

$1.21

750

Flat Washer 6 mm

234062410

$0.64

760

Hex. Flange Screw M6 X 16

210261650

$1.22

770

Plug

707001185

$1.37

780

Retainer Clip

707800506

$10.98

790

Tie Wrap 368 mm

293750008

$0.85

800

Clip Tie-Rap

710002899

$8.45

885

Tie Rap 367mm | XMR

293750065

$3.85

955

Hose

707001734

$64.58

960

Air Inlet

707001401

$46.12

970

Filter

707001422

$19.20

990

Norma Clamp

293650091

$4.60

995

Norma Clamp

514052924

$10.58

1000

Tuflok Plastic Rivet

293150230

$1.21

1010

Panel Nut M6 X 1.0

250100198

$1.73

1020

Flat Washer

250200082

$0.35

1030

Torx Screw M6 X 20

250000722

$1.34

1040

Torx Screw K50 X 16

250000720

$1.39

1050

Washer M5

250200025

$0.61

1100

AIR INLET - Call your local BRP dealership

707001727

Unavailable

1115

Norma Clamp

514052924

$10.58

1200

Air Inlet

707001728

$59.20

1210

Gasket, Neoprene 2000Mm Long

219704476

$12.64

1300

AIR INLET - Call your local BRP dealership

707001729

Unavailable

1310

Norma Gear Clamp

514052983

$11.39

1320

Hex. Flange Elastic Nut M8

233281414

$1.14

1330

Hex. Flange Screw M8 X 25

207682544

$0.90

1340

Flat Washer 8 mm

234082410

$1.11

1400

AIR INLET - Call your local BRP dealership

707001730

Unavailable

1500

COVER - Call your local BRP dealership

707001741

Unavailable

1510

Grommet

709000582

$4.38

1600

CVT Filter

707001742

$39.97
