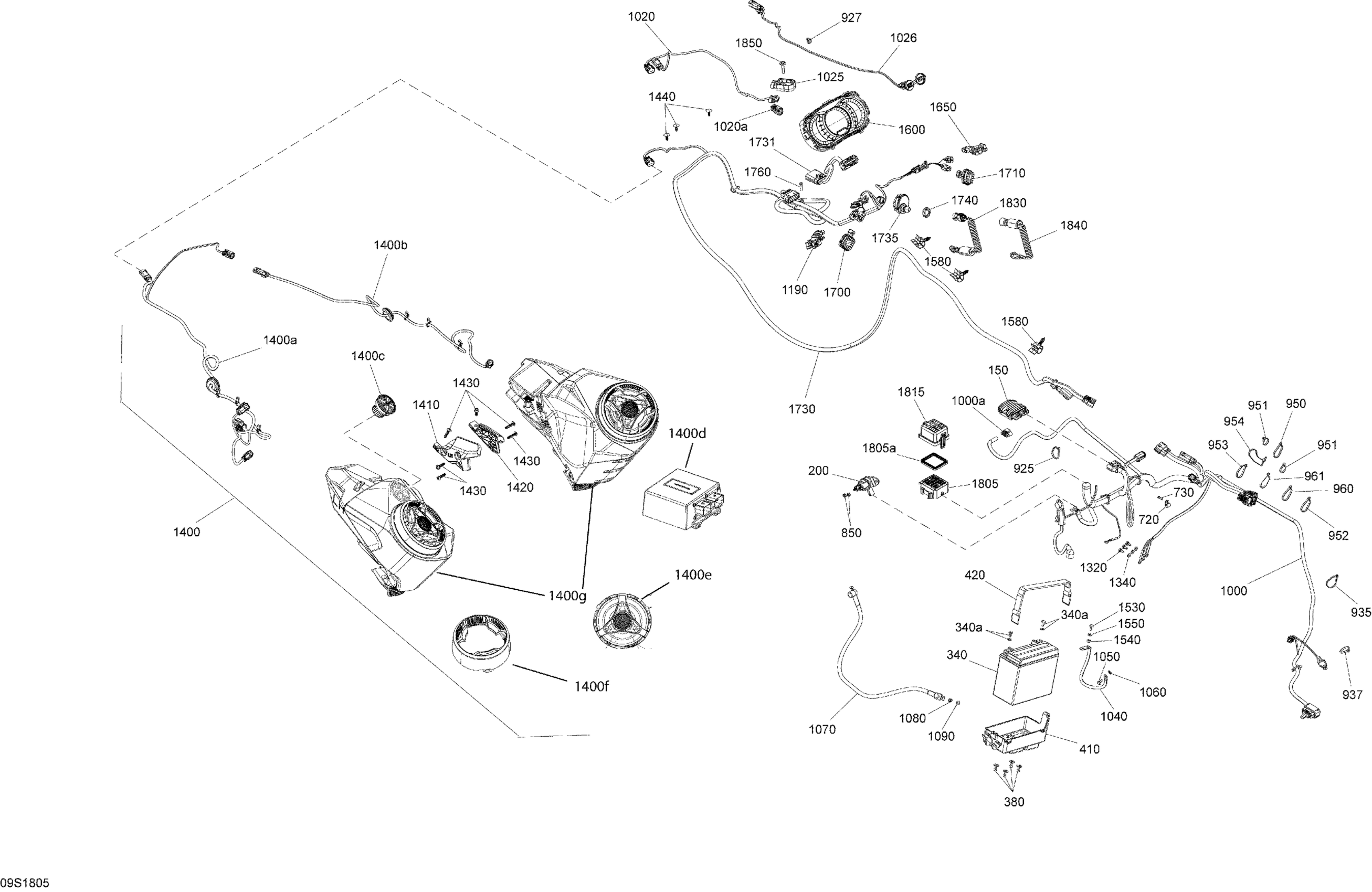

Sea-doo GTX 230, 2018 Electrical System Engine 1500 HO ACE - Package LTD Diagram

#

Description
Price

150

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$118.92

200

Starter Relay

278003012

$35.07

340>340a

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

340a

Battery Bolt Kit

250000282

$2.95

380

Pop Rivet 3/16"

293150123

$3.43

410

Battery Support

278003473

$22.72

420

Fuel Tank Strap

293850095

$14.27

720

Hose Clamp

293650257

$5.00

730

Flange Torx Screw K40 X 16

250000287

$1.74

850

Elastic Stop Nut M6, Brass

232561200

$3.51

925

Tie-Rap 180 mm

414115200

$0.09

927

Tie-Rap 180 mm

414115200

$0.09

935

Tie Rap, 533 mm

293750047

$1.84

937

Tie Wrap 142 mm

293750002

$0.88

950

Tie-Rap 180 mm

414115200

$0.09

951

Tie-Rap 180 mm

414115200

$0.09

952

Tie-Rap 180 mm

414115200

$0.09

953

Tie-Rap 180 mm

414115200

$0.09

954

Tie-Rap 180 mm

414115200

$0.09

960

Tie-Rap 180 mm

414115200

$0.09

961

Tie-Rap 180 mm

414115200

$0.09

1000>1000a

Wiring Harness | Includes 1000 to 1000a

278003420

$514.77

1000a

Female Housing, 3 Circuits

710000879

$21.42

1020>1020a

USB Charger Cable Ass'y | Includes 1020 to 1020b

295100710

$140.37

1020a

Connector USB wih Cable

710005857

$38.78

1025

USB Charger Cable Ass'y | Includes 1020 to 1020b

295100710

$140.37

1026

USB Charger Cable Ass'y | Includes 1020 to 1020b

295100710

$140.37

1040

Ground Battery Cable

278003451

$31.17

1050

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

1060

Stainless Flat Washer M6

234061600

$0.25

1070

Starter Cable

278003369

$31.17

1080

Elastic Stop Nut M6, Brass

232561200

$3.51

1090

Stainless Flat Washer M6

234061600

$0.25

1190

LH Throttle Sensor

278002284

$108.18

1320

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

1340

Stainless Flat Washer M6

234061600

$0.25

1400>1400g

Audio System BlueTooth | Includes 1400 to 1400g

295100711

$1,351.34

1400a

Amplifier Harness

278003497

$65.62

1400b

Speaker Harness

278003462

$16.22

1400c

Audio Control

278003465

$308.07

1400d

Amplifier

278003464

$371.12

1400e

Speaker

278003463

$124.12

1400f

Speaker Grille

278003466

$12.97

1400g

LH Speaker Enclosure Ass'y | Includes 1400k to 1400k4

278003735

$261.92

1400g

RH Speaker Enclosure Ass'y | Includes 1400m to 1400m4

278003736

$261.92

1410

LH Bracket

278003489

$4.54

1420

RH Bracket

278003518

$4.54

1430

Screw Torx M6.81 X 30

250001007

$1.61

1440

Black, Dart

293730011

$0.79

1530

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

1540

Elastic Stop Nut M6, Brass

232561200

$3.51

1550

Stainless Flat Washer M6

234061600

$0.25

1580

Retainer

278003564

$6.57

1600

LCD Gauge

278003649

$807.92

1650

Throttle Position Sensor

278002283

$94.22

1700

Switch | Package X

278003476

$64.97

1710

Switch | Package X

278003604

$84.47

1730

Steering Harness Ass'Y

278003634

$288.03

1731

Wiring Harness Extension

278003636

$49.97

1735

Terminal Dess One-Wire | Except Model Europe

515178840

$67.57

1740

Safety Nut (DESS Switch)

278002963

$2.72

1760

Hex. Screw 10-14 X 7/8”

211000023

$2.91

1805>1805a

Fuse Base Ass'y

278003448

$26.62

1805a

Seal

278003450

$11.54

1815

Fuse Cover

278003879

$3.68

1830

Safety Lanyard Ass'y, Learning / RFID

278003401

$58.47

1840

Safety Lanyard Ass'y, RFID | Includes 8020 to 8020j

278003402

$58.47

1850

Hexagonal Cap Screw M6 X35

250000399
