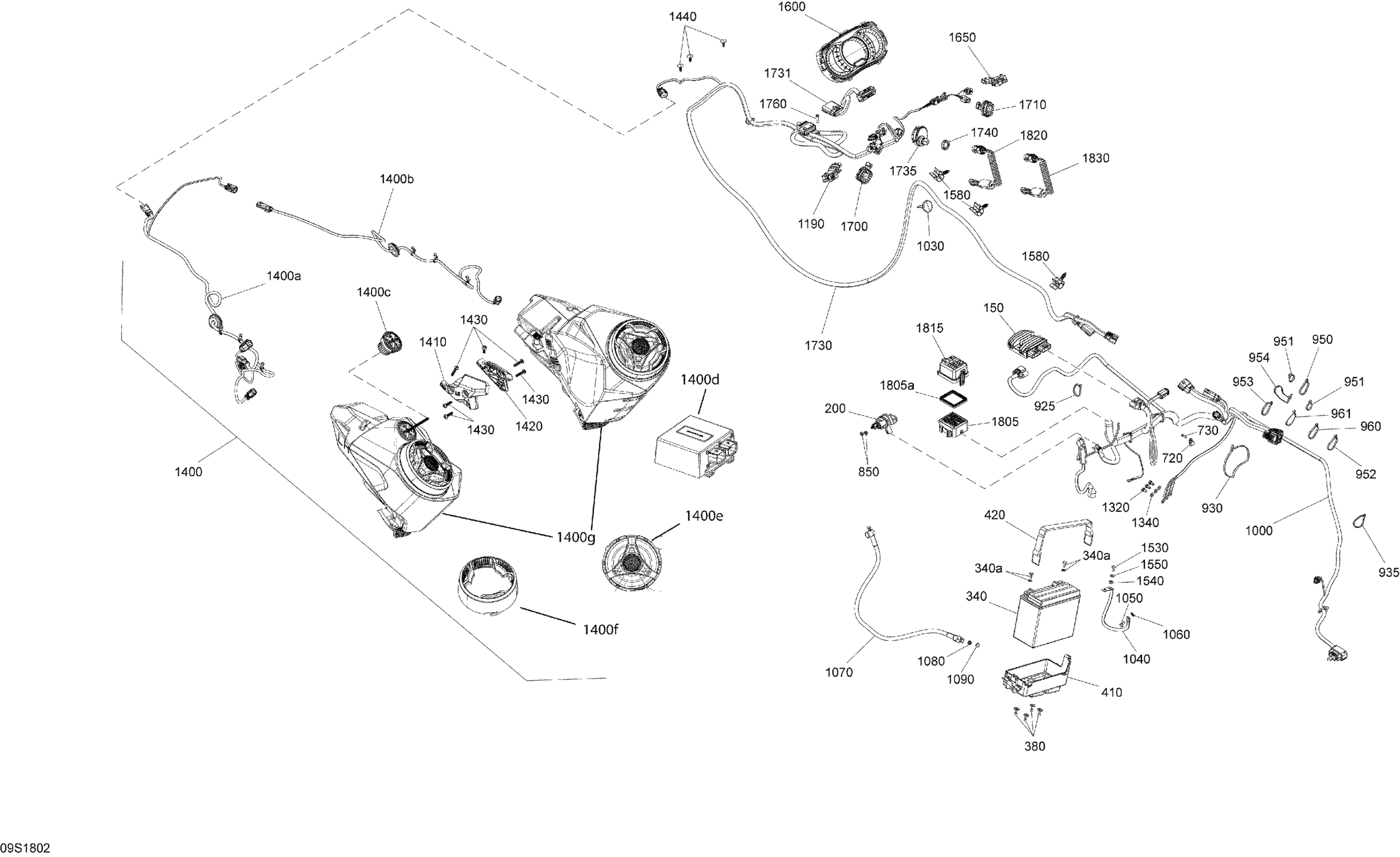

Sea-doo GTX 230, 2018 Electrical System Engine 1500 HO ACE - Except Package LTD Diagram

#

Description
Price

150

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99

200

Starter Relay

278003012

$42.49

340>340a

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

340a

Battery Bolt Kit

250000282

$7.29

380

Pop Rivet 3/16"

293150123

$4.29

410

Battery Support

278003473

$28.99

420

Fuel Tank Strap

293850095

$19.99

720

Hose Clamp

293650257

$5.99

730

Flange Torx Screw K40 X 16

250000287

$2.11

850

Elastic Stop Nut M6, Brass

232561200

$4.23

925

Tie-Rap 180 mm

414115200

$0.11

935

Tie Rap, 533 mm

293750047

$2.09

950

Tie-Rap 180 mm

414115200

$0.11

951

Tie-Rap 180 mm

414115200

$0.11

952

Tie-Rap 180 mm

414115200

$0.11

953

Tie-Rap 180 mm

414115200

$0.11

954

Tie-Rap 180 mm

414115200

$0.11

960

Tie-Rap 180 mm

414115200

$0.11

961

Tie-Rap 180 mm

414115200

$0.11

1000

Wiring Harness

278003436

$319.99

1030

USB Plug

269502324

$3.09

1040

Ground Battery Cable

278003451

$39.99

1050

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

1060

Stainless Flat Washer M6

234061600

$0.33

1070

Starter Cable

278003369

$39.99

1080

Elastic Stop Nut M6, Brass

232561200

$4.23

1090

Stainless Flat Washer M6

234061600

$0.33

1190

LH Throttle Sensor

278002284

$119.99

1320

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

1340

Stainless Flat Washer M6

234061600

$0.33

1400>1400g

Audio System BlueTooth | Includes 1400 to 1400g

295100711

$1.00

1400a

Amplifier Harness

278003497

$83.99

1400b

Speaker Harness

278003462

$22.99

1400c

Audio Control

278003465

$381.49

1400d

Amplifier

278003464

$465.99

1400e

Speaker

278003463

$153.49

1400f

Speaker Grille

278003466

$16.34

1400g

LH Speaker Enclosure Ass'y | Includes 1400k to 1400k4

278003735

$328.49

1400g

RH Speaker Enclosure Ass'y | Includes 1400m to 1400m4

278003736

$328.49

1410

LH Bracket

278003489

$5.79

1420

RH Bracket

278003518

$5.79

1430

Screw Torx M6.81 X 30

250001007

$2.54

1440

Black, Dart

293730011

$0.99

1440

Black, Dart

293730011

$0.99

1530

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

1540

Elastic Stop Nut M6, Brass

232561200

$4.23

1550

Stainless Flat Washer M6

234061600

$0.33

1580

Retainer

278003564

$8.39

1600

LCD Gauge

278003649

$1.00

1650

Throttle Position Sensor

278002283

$119.99

1700

Switch | Package X

278003476

$80.49

1710

Switch | Package X

278003604

$104.99

1730

Steering Harness Ass'Y

278003634

$319.99

1731

Wiring Harness Extension

278003636

$53.99

1735

Terminal Dess One-Wire | Except Model Europe

515178840

$83.49

1740

Safety Nut (DESS Switch)

278002963

$3.28

1760

Hex. Screw 10-14 X 7/8”

211000023

$3.59

1805>1805a

Fuse Base Ass'y

278003448

$31.99

1805a

Seal

278003450

$13.18

1815

Fuse Cover

278003879

$4.44

1820

Safety Lanyard Ass'y, RFID

278003400

$84.99

1830

Safety Lanyard Ass'y, Learning / RFID

278003401

$84.99
