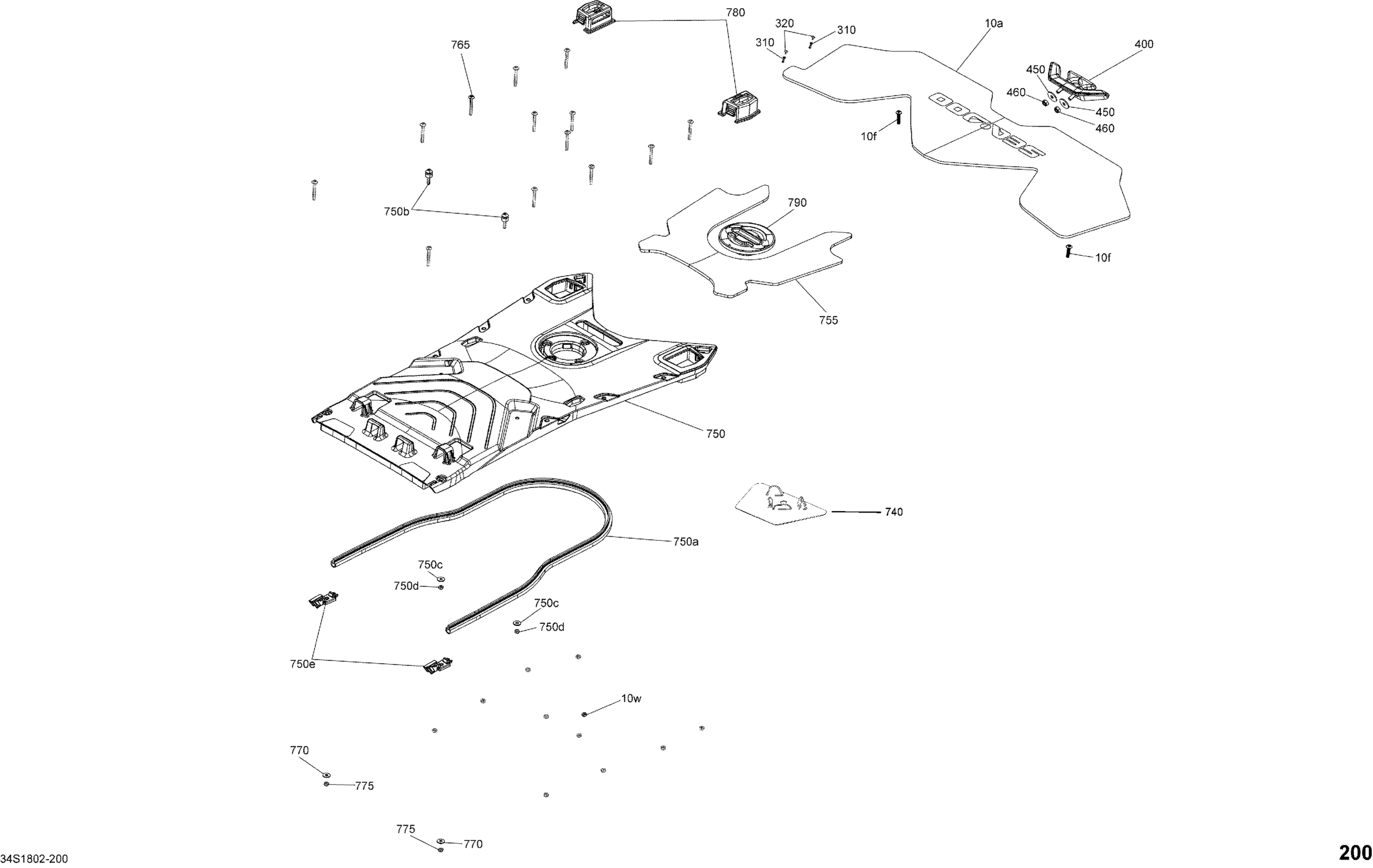

Sea-doo GTX 230, 2018 Body Rear Part - GTX Package LTD Diagram

Description

Price

10a

Rear Plat-Form Carpet

291004614

$115.67

10f

Plastite Screw Torx Cone HD.M6.81X3

250001194

$3.87

10w

Nut Housing M6 Ass'y | Includes 10b to 10b1a

291006093

$1.87

310

Rivet 1/8"

293150016

$0.29

320

Black, Snap Cap

293000014

$0.85

400

Cleat

291004597

$19.47

450

Flat Washer 8 mm, Stainless

234082600

$1.98

460

Hex. Elastic Nut M8 Brass

232581200

$1.29

740

Hose Protector

291004941

$4.22

750 > 750e

Access Cover Ass'y | Includes 750 to 750f

291005189

$172.22

750a

Was 293200062 Seal

219704366

$61.72

750b

STUD - Call your local BRP dealership This part replaces 291004611.

291004611

Unavailable

750c

Flat Washer M6, Stainless

234062600

$0.64

750d

Elastic Stop Nut M6, Brass

232561200

$3.51

750e

Seal

291004717

$9.04

755

Cover B-421 | Package LTD

291004603

$66.39

765

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.33

770

Flat Washer M6, Stainless

234062600

$0.64

775

Elastic Stop Nut M6, Brass

232561200

$3.51

780

Cargo Base

291005157

Unavailable

790

Access Cap Ass'y

291004481

$7.15
