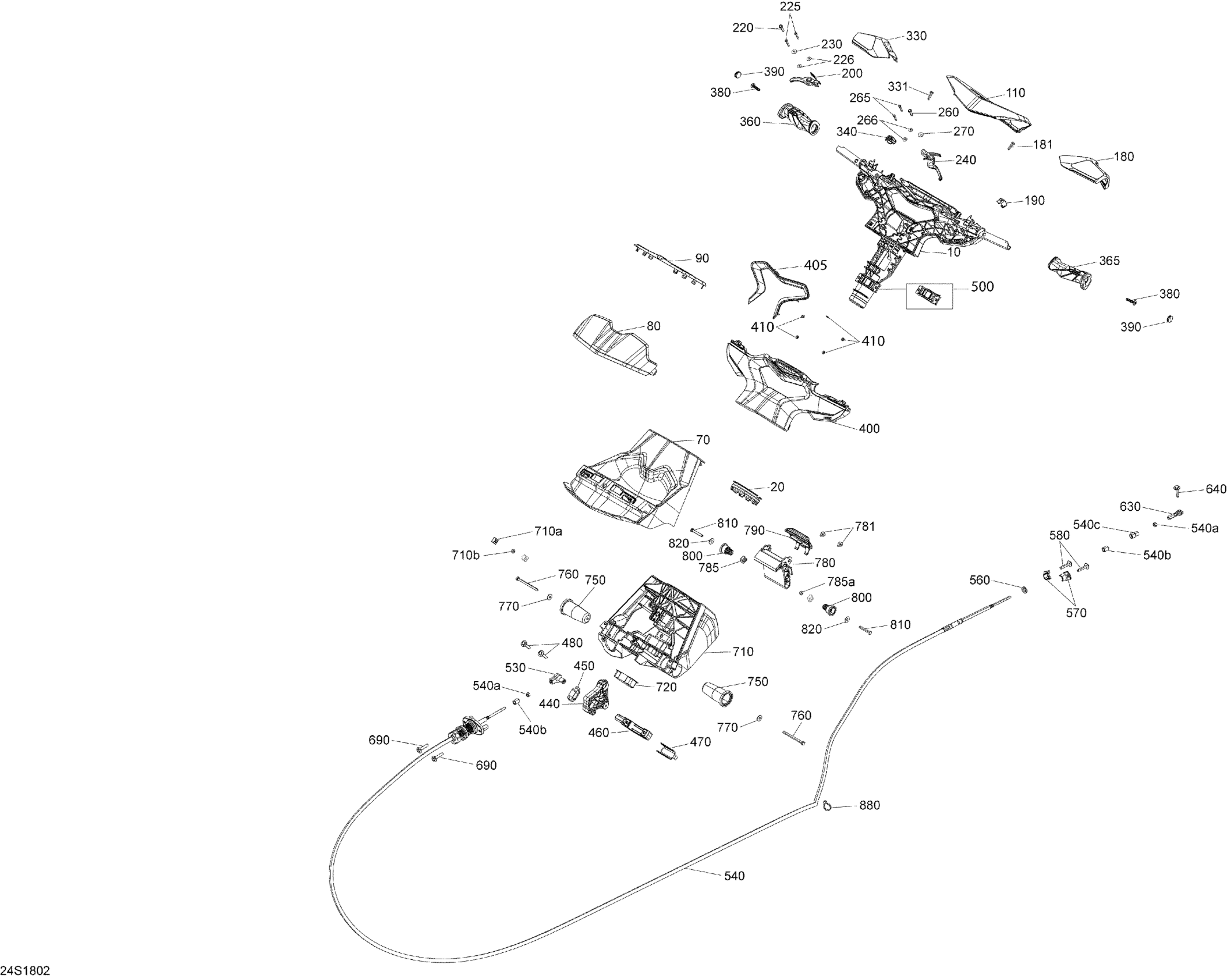

Sea-doo GTX 230, 2018 Steering GTX - LTD Diagram

#

Description
Price

10

Steering Column

277001979

$214.99

20

Wear Ring

277001874

$12.17

70

Cluster Support

277002072

$58.99

80

Deep Black, Cluster Support Cover | Built Before Oct 2020

277001981

$26.99

90

BEZEL FOR SPEED INDICATOR - Call your local BRP dealership

277002074

Unavailable

110

B-418, Handlebar Trim | Package LTD This part replaces 277002026.

277002245

$27.99

180

LH Cover

277002233

$18.99

181

Hex. Screw 10-14 X 7/8”

211000023

$3.59

190

Red Button Switch

277002327

$9.21

200

Throttle Handle

277001944

$38.99

220

Hex. Screw 10-14 X 7/8”

211000023

$3.59

225

Hex. Flange Screw K40 X 25

241142560

$2.64

226

Flat Washer 4 mm, Stainless

234042600

$1.15

230

Flat Washer 5 mm, Stainless

234052600

$0.77

240

Reverse Handle

277001945

$43.99

260

Hex. Screw 10-14 X 7/8”

211000023

$3.59

265

Hex. Flange Screw K40 X 25

241142560

$2.64

266

Flat Washer 4 mm, Stainless

234042600

$1.15

270

Flat Washer 5 mm, Stainless

234052600

$0.77

330

RH Housing Cover | Model VIP High End Cluster

277001984

$18.99

331

Hex. Screw 10-14 X 7/8”

211000023

$3.59

340

Push Button Grey

277002053

$9.21

360

LH Handle Grip | Package LTD

277002058

$20.99

365

RH Handle Grip | Package LTD

277002057

$20.99

380

Screw Torx M6.81 X 30

250001007

$2.54

390

Black, Cap

277000203

$9.39

400

Steering Cover

277001985

$68.99

405

Limited Trim- Chrome | Model Liquid Metal

277002061

$56.99

410

Push Nut

250100206

$1.01

440

Steering Arm Kit

295501183

$10.99

450

Steering Arm Kit

295501183

$10.99

460

Arm

277001987

$10.99

470

Spacer

277001654

$15.99

480

Hexagonal Cap Screw M6 X35

250000399

$4.44

530

End Fitting

277002011

$20.99

540

Steering Cable | Includes 540 to 540b

277002448

$275.49

540a

Hex. Nut 1/4"-28

211100056

$0.69

540b

Wiper Rod

277001582

$11.11

540c

End Piece

277001583

$14.49

560

Rubber Washer

293830063

$1.90

570

Ring Halves

277001856

$12.99

580

Hexagonal Cap Screw M6 X35

250000399

$4.44

630

Ball Joint

277000775

$51.99

640

Hex Sems Screw M6X35

250000970

$2.11

690

Hexagonal Cap Screw M6 X35

250000399

$4.44

710 > 710b

Steering Support Ass'y | Includes 710 to 710c

277002087

$114.99

710a

Housing Nut M6 | Included 550f to 550f2

269502408

$6.74

710b

Elastic Stop Nut M6, Brass

232561200

$4.23

720

Wear Ring

277002318

$15.99

750

Steering Support Pivot

277001605

$20.99

760

Hex Screw M6 X 80

207168060

$6.77

770

Flat Washer M6, Stainless

234062600

$0.77

780

Adjustment Handle

277001996

$10.38

781

Rubber Bumper

293830005

$8.09

785 > 785b

Housing Nut M6 | Included 550f to 550f2

269502408

$6.74

785a

Elastic Stop Nut M6, Brass

232561200

$4.23

790

Lock

277002010

$6.49

800

Pivot

277001652

$15.99

810

Hex. Screw M6 X 40

207064060

$1.69

820

Flat Washer M6, Stainless

234062600

$0.77

880

Tie-Rap 180 mm

414115200

$0.11

500

C Clamp

277002085

$9.19
