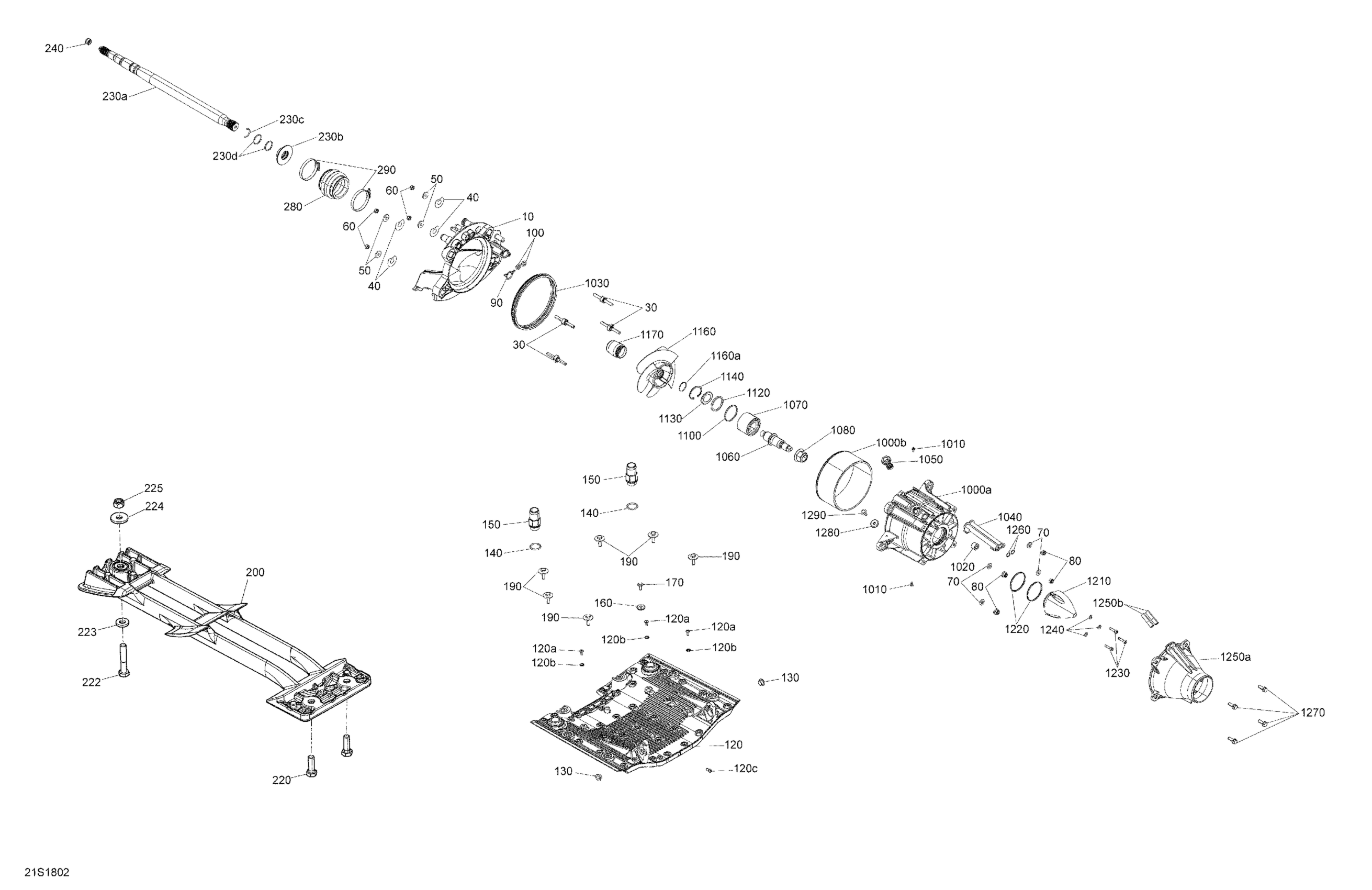

Sea-doo GTX 230, 2018 Propulsion - Engine 1500 HO ACE Diagram

#

Description
Price

10

Pump Support

271001976

$41.57

30

Square Stud

250300046

$11.91

40

Shim 0.3 mm

272000053

$8.02

50

Flat Washer

279000336

$8.35

60

Hex. Elastic Nut M8 Brass

232581200

$1.29

70

Flat Washer M8.5 x 18

293050001

$1.29

80

Hex. Elastic Nut M8 Brass

232581200

$1.29

90

Gasket

271002033

$1.20

100

Watertight Seal

293250084

$5.81

120

KIT PLATE_RIDE ASSY | Includes 120 to 120g This part replaces 271001977.

295501264

Unavailable

120a

Torx Screw M6 X 14

250000384

$6.15

120b

Sealing Washer

250200114

$3.61

120c

Socket Drain Plug M6 X 12

250500005

$11.74

130

Venturi Bushing

293900007

$3.71

140

O-Ring

293300121

$6.18

150

Strait Fitting

293710124

$12.91

160

Anode Zinc

271001920

$11.43

170

Hex Screw M6 X 20

250000965

$1.74

190

Hex Sems Screw M8 X 30

250000967

$2.35

200

Intake Grate - Anodized

271001983

$51.97

220

Hex Sems Screw M8 X 25

250000968

$2.35

222

Hexagonal Head Cap Screw M8 X 45

250000782

$2.35

223

Flat Washer M8.5 x 18

293050001

$1.29

224

Flat Washer

279000336

$8.35

225

Hex. Elastic Nut M8 Brass

232581200

$1.29

230a

Drive Shaft

271001974

$349.02

230b

Carbon Ring Kit | Includes 280b to 280b4

295501204

$66.27

230c

C-Clip

271001577

$2.68

230d

O-Ring

293300107

$0.83

240

Drive Shaft Plug

272000173

$7.02

280

Bellow This part replaces 271001422.

271001933

$18.82

290

Norma Clamp

293650079

$8.89

1000a

Impeller Housing

271002018

$227.47

1000b

Wear Ring

267000372

$68.87

1020

Black, Plastic Plug

267000469

$5.99

1030

Neoprene Seal

293200087

$9.19

1040

Water Outlet

271000785

$3.04

1050

Plug | Includes 370z to 370z1

267000282

$14.27

1050a

Plug | Includes 370z to 370z1

267000282

$14.27

1060

Impeller Shaft

267000388

$94.22

1070

Angled Bearing This part replaces 267000030.

267000900

$66.27

1080

Elastic Flange Nut M20

250100104

$9.71

1100

O-Ring

293300090

$5.97

1110

Seal

271002071

$26.62

1120

Spacer

271001393

$6.12

1130

Oil Seal

293200089

$15.57

1140

Circlip

293370038

$7.12

1160

Impeller Ass'y | Includes 1160 to 1160a

267001021

$402.97

1160a

O-Ring

293300044

$0.86

1170

Guard

271002228

$9.85

1210

Impeller Cover

267000428

$14.27

1220

O-Ring

293300086

$2.90

1230

Socket Head Screw M6 X 25, Scotch Grip

205562560

$1.70

1240

Stainless Flat Washer M6

234061600

$0.25

1250a

Venturi Anodized

271001999

$31.82

1250b

Siphon Tube

271001885

$1.46

1260

O-Ring

293300013

$5.69

1270

Hex Sems Screw M8 X 25

250000968

$2.35

1280

Anode Zinc

271001920

$11.43

1290

Hex Screw M6 X 20

250000965

$1.74
