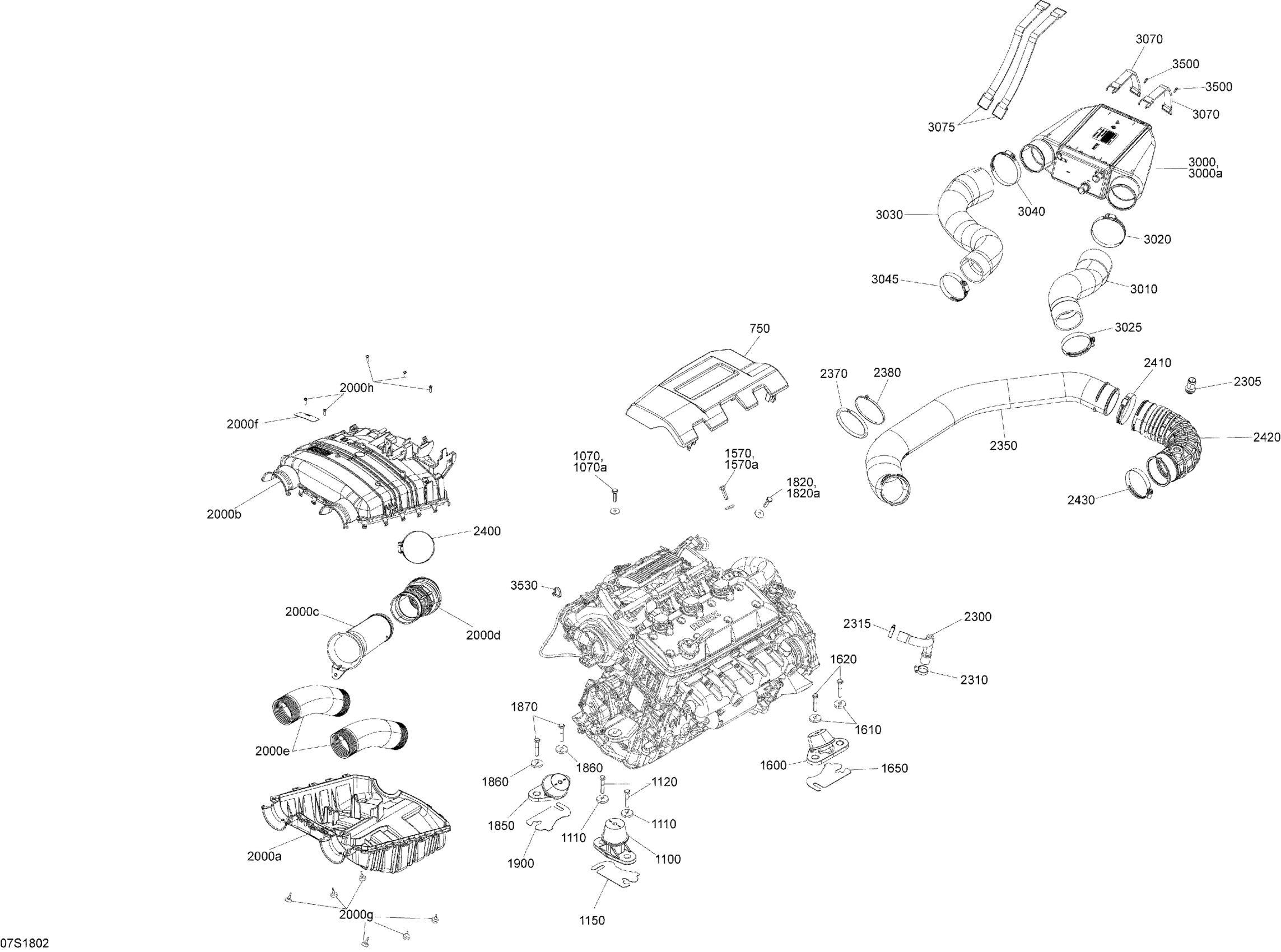

Sea-doo GTX 230, 2018 Engine 1500 HO ACE Diagram

#

Description
Price

750

Engine Cover Ass'y | Includes 750 TO 750b

270001002

$57.82

1070 > 1070a

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

250000933

$2.35

1070a

Hexagonal Screw M8 X 30

250000888

$3.00

1100

Engine Support Ass'y

270001096

$77.32

1110

Cone Washer

250200018

$4.64

1120

Hexagonal Head Cap Screw M8 X 45

250000782

$2.35

1150

Shim 1.3 mm

270000762

$9.04

1570 > 1570a

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

250000933

$2.35

1570a

Hexagonal Screw M8 X 30

250000888

$3.00

1600

Engine Support Ass'y

270001081

$84.47

1610

Cone Washer

250200018

$4.64

1620

Hexagonal Head Cap Screw M8 X 45

250000782

$2.35

1650

Shim 1.3 mm

270000762

$9.04

1820 > 1820a

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

250000933

$2.35

1820a

Hexagonal Screw M8 X 30

250000888

$3.00

1850

Engine Support Ass'y

270001081

$84.47

1860

Cone Washer

250200018

$4.64

1870

Hexagonal Head Cap Screw M8 X 45

250000782

$2.35

1900

Shim 1.3 mm

270000762

$9.04

2000a

Airbox Base

273000342

$44.00

2000b

INTAKE SILENCER COVER - Call your local BRP dealership

273000381

Unavailable

2000c

Intake Hose

273000359

$44.00

2000d

Hose Connector

273000375

$65.64

2000e

Air Silencer Hose

273000290

$20.12

2000f

Air Silencer Notice Decal

219903177

Unavailable

2000g

Rubber Stopper

708000759

$3.61

2000h

Flange Torx Screw K40 X 16

250000287

$1.74

2300

Formed Hose

270000950

$8.54

2305

Breather Valve

273000234

$10.63

2310

Tridon Gear Clamp

293650051

$3.61

2315

Tridon Gear Clamp

293650051

$3.61

2350

Central Intake Duct

273000376

$40.27

2370

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$114.15

2380

Tie Wrap 368 mm

293750008

$0.85

2400

Tridon Clamp

293650179

$8.81

2410

Tridon Clamp

293650179

$8.81

2420

Intake Hose

273000380

$28.33

2430

Tridon Clamp

293650179

$8.81

3000 > 3000a

Intercooler

276000406

$419.87

3000a

Anode Zinc

271001942

$13.62

3010

Formed Hose

273000418

$64.97

3020

Tridon Gear Clamp

293650244

$7.22

3025

Tridon Clamp

293650179

$8.81

3030

Oultet Hose

273000419

$74.72

3040

Tridon Gear Clamp

293650244

$7.22

3045

Tridon Clamp

293650179

$8.81

3070

Fuel Tank Strap

293850094

$17.52

3075

Fuel Tank Strap

293850095

$14.27

3500

Tie Wrap 94 mm | 4X4

293750001

$0.83

3530

Tie-Rap 180 mm

414115200

$0.09
