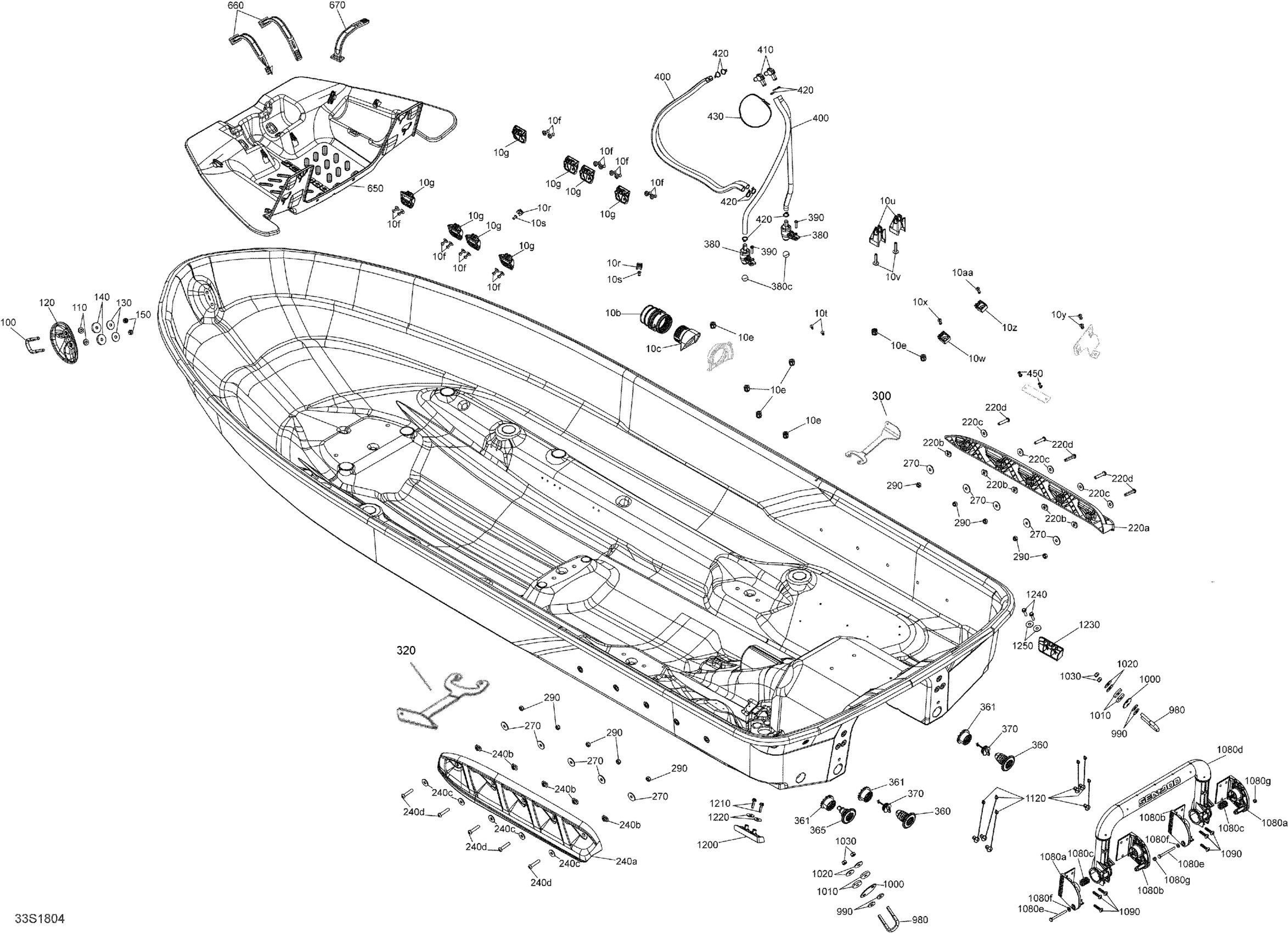

Sea-doo GTI 130, 2018 Hull GTI Diagram

#

Description
Price

10b

Hull Insert

293450340

$24.60

10c

Hull Insert

293450335

$16.22

10e

Hull Insert

293450356

$8.21

10f

Pop Rivet 3/16"

293150123

$3.43

10g

Strap Retaining

270000933

$5.47

10r

Tie Rap Mount

293750026

$2.41

10s

Avdel Rivet 3/16"

293150037

$0.47

10t

Dart

293730062

$1.63

10u

Strap Anchor

270000988

$8.06

10v

Hexagonal Cap Screw M6 X35

250000399

$3.61

100

U-Clamp

292000933

$32.47

110

Flat Washer M8.5 x 18

293050001

$1.29

120

Black Shell

292001837

$14.92

130

Flat Washer 8 mm, Stainless

250200175

$1.29

140

Rubber Washer

293830037

$2.68

150

Hex. Elastic Nut M8 Brass

232581200

$1.29

220a

RH Sponson

292001878

$72.77

220b

Spacer Sponson

292001349

$9.84

220c

Flat Washer 8 mm, Stainless

234082600

$1.98

220d

Torx Screw M8 X 40, Stainless

250000452

$3.73

240a

LH Sponson

292001877

$72.77

240b

Spacer Sponson

292001349

$9.84

240c

Flat Washer 8 mm, Stainless

234082600

$1.98

240d

Torx Screw M8 X 40, Stainless

250000452

$3.73

270

Flat Washer 8 mm, Stainless

250200175

$1.29

290

Hex. Elastic Nut M8 Brass

232581200

$1.29

300

Hull Support RH

292002164

$52.21

320

Hull Support LH

292002163

$52.21

360

Drain Ass'y

292001580

$12.86

361

Bushing

292001371

$12.57

363

Plastic Nut

292001825

$6.37

365

Drain Neck Ass'y

292001317

$21.42

370

Plug Ass'y | Includes 300f to 300f2

292002022

$11.14

380

Bailer Pick-up Ass'y | Includes 540 to 540c

292001636

$20.12

380c

Floating Ball

293830080

$5.56

390

Hex. Screw 10-14 X 7/8”

211000023

$2.91

400

Polyurethane Hose 1000Mm Long | Not Shown

219704393

$5.94

410

Fitting Elbow 90°

293710152

$14.92

420

Tie Wrap 94 mm | 4X4

293750001

$0.83

430

Tie Wrap 368 mm

293750008

$0.85

450

Avdel Rivet 3/16"

293150037

$0.47

650

Trunk Shield

292001868

$39.52

660

Strap

269502417

$14.27

670

Strap

269502417

$14.27

980

U-Clamp

292000933

$32.47

990

Flat Washer

279000336

$8.35

1000

Black, Finition Plate

291001386

$8.57

1010

Rubber Washer

293830037

$2.68

1020

Flat Washer 8 mm, Stainless

250200175

$1.29

1030

Hex. Elastic Nut M8 Brass

232581200

$1.29

1080a

A Section Support

292001509

$58.47

1080b

B Section Support

292001510

$58.47

1080c

Spring

292001259

$21.42

1080d

Overmolded Bar

292001204

$122.82

1080e

Hex. Screw M6 x 65 | Produced Before February 01 2010

207066560

$1.55

1080f

Stainless Flat Washer M6

234061600

$0.25

1080g

Hex. Elastic Stop Nut M6

232561600

$0.92

1090

Screw Torx M6.81 X 30

250001007

$1.61

1200

LH Trim Tab

292001811

$16.39

1210

Hex. Flange Screw M6.81 X 25, Plastite

243162560

$1.46

1220

Flat Washer 8 mm, Stainless

234082600

$1.98

1230

RH Trim Tab

292001812

$16.39

1240

Hex. Flange Screw M6.81 X 25, Plastite

243162560

$1.46

1250

Flat Washer 8 mm, Stainless

234082600

$1.98
