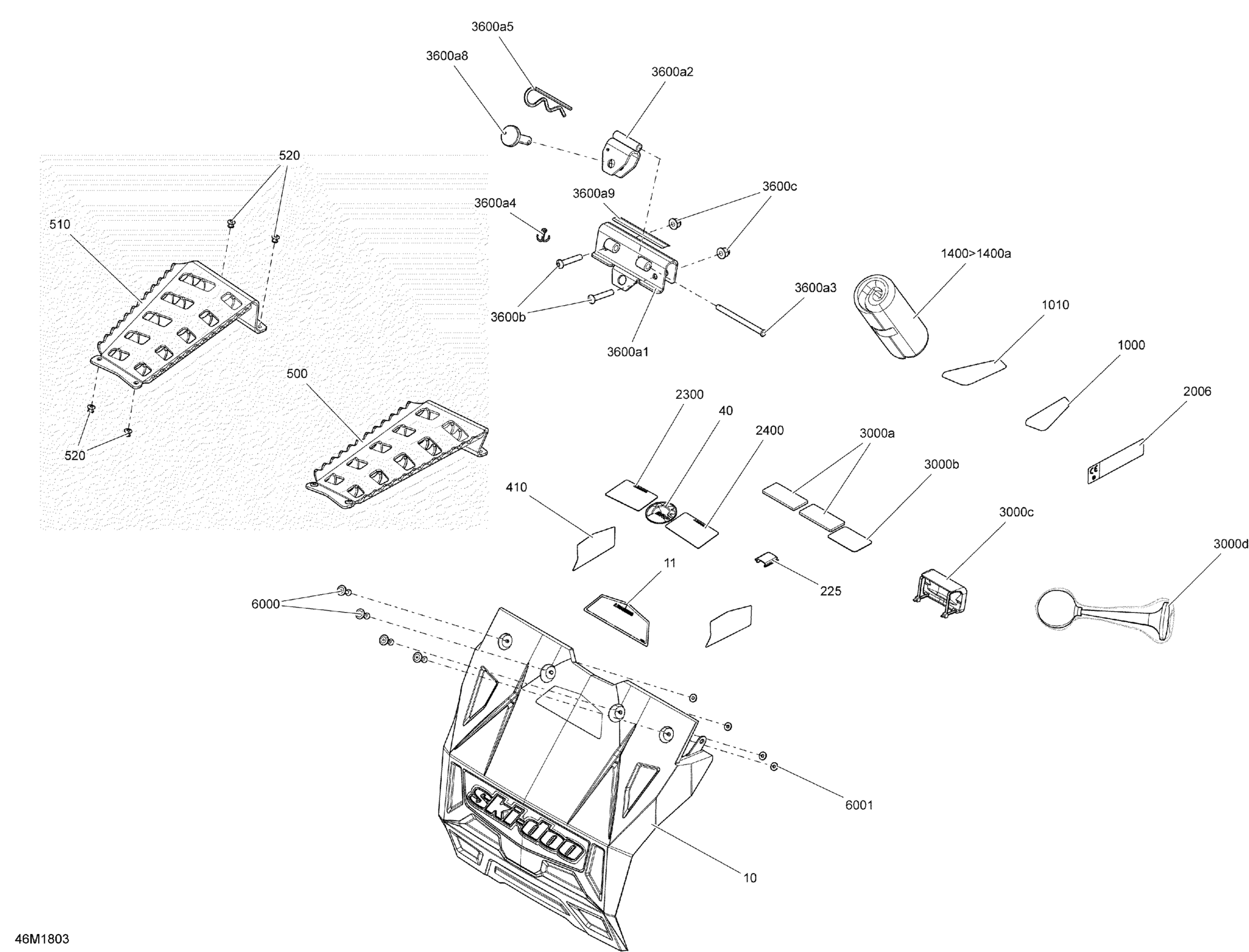

Ski-Doo GRAND TOURING 600 ACE, 2018 Utilities Grand Touring - 600 ACE Diagram

#

Description
Price

10

Snow Guard, Black W Alloy Grey Insert

520001342

$110.99

11

Warning Decal, Track

516005175

Unavailable

40

BRP Logo 48mm

516008738

$16.99

225

Radiator Trim

520000829

$21.99

400

Red, RH Rear Reflector

520000881

$16.99

400

Yellow, RH Rear Reflector

520000883

$16.99

410

Red, LH Rear Reflector

520000880

$16.99

410

Yellow, LH Rear Reflector

520000882

$16.99

500

RH Footrest

520000887

$83.99

510

LH Footrest

520000888

$83.99

520

Pop Rivet 3/16"

390402200

$0.35

1000

Yellow, RH Front Reflector

520001237

$23.99

1010

Yellow, LH Front Reflector

520001236

$23.99

1400

Tools Kit

520001591

$50.99

1400a

FORK WRENCH, 10/13 MM - Call your local BRP dealership

529000002

Unavailable

2006

Europe Decal

516008823

$12.99

2300

Warning Decal

516006908

Unavailable

2400

RH Warning Decal, Safety

516005587

Unavailable

3000a

Amber, Reflector

520000271

$19.99

3000b

White, Reflector

415037900

$22.99

3000c

Deep Black, Reflector Support

520000871

$5.79

3000d

Horn

549011291

$35.99

3600a1

Support

511000768

$31.99

3600a1

Support

511000554

$19.49

3600a2

Hitch Plate Welded

511000521

$16.33

3600a2

HITCH PLATE - Call your local BRP dealership

511000588

Unavailable

3600a3

Lock Pin

511001451

$9.49

3600a4

Cotter Pin

371800200

$0.53

3600a5

Hair Pin

114045200

$11.11

3600a8

Pin

511000555

$19.49

3600a9

WARNING DECAL, SECURITY - Call your local BRP dealership

516004568

Unavailable

3600b

Socket Head Screw M8 X 45 | Traxter XT.

205484546

$8.01

3600c

Elastic Flange Nut M8

233281466

$1.01

3600c

Hex. Flange Elastic Nut M8

233281414

$1.47

6000

Pop Rivet 3/16”

293150108

$1.19

6001

Washer

517124300

$0.19
