Description

Price

10.001

Front Seat Base

510004775

$85.79

10.002

Seat Cover

510005181

$224.99

10.003

Front Seat Foam

510004777

$224.99

10.005

Rubber Stopper

708000759

$4.15

20.001

Seat Base Ass'y | Includes 20a to 20a3

510005535

$429.99

20,001a

Foam Support

510004423

$35.04

20,001b

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

20,001c

Pop Rivet 3/16"

390402300

$0.73

20.002

Rear Seat Cover

510005399

$234.99

20.003

Rear Seat Foam

510004791

$299.99

20.004

Black, Dart

414644300

$0.90

20.008

Backrest Foam

510004782

$129.99

20.009

Backrest Cover | Not Shown

510005309

$179.99

20,010

Upper Backrest Axle

510004377

$44.00

20.011

Washer

510004379

$8.69

20.012

Rubber Shim

510004378

$8.36

20.013

RH Arm, Black

510005539

$28.99

20.014

LH Arm, Black

510005538

$28.99

20.0145

Hex Torx Truss M8 X30

250000745

$2.96

20.015

Hex Torx Truss M8 X30

250000745

$2.96

20.016

Flat Washer 8 mm

250200128

$2.00

20.031

Tie Wrap 368 mm

293750008

$0.97

20,040

Seat Harness

515176766

$37.28

20.041

Tie-Rap 180 mm

414115200

$0.10

20.043

Housing Support

515175283

$8.18

20.046

Spacer

271000558

$8.13

140

RH Handle Ass'y | Includes 140a to 140a9

510006708

$244.99

140.002

Torx Truss Screw M6 X 16

250000721

$1.60

140.003

Nut Welded, M6

293100003

$7.25

140.004

Handle Grip

510004449

$10.33

140.005

RH Air Deflector

510005009

$26.84

140.007

Heated Element

515176999

$66.39

140.0075

Was 515175506 Tubing

219704426

$132.06

140.0115

Screw M4 X 16

250000725

$3.30

140.02

Reinforcement Handle

510005814

$17.88

140.04

Male Housing, 3 Circuits

515175494

$14.90

150

LH Handle Ass'y | Includes 150a to 150a16

510006709

$244.99

150.002

Torx Truss Screw M6 X 16

250000721

$1.60

150.003

Nut Welded, M6

293100003

$7.25

150.004

Handle Grip

510004449

$10.33

150.005

LH Air Deflector

510005010

$26.84

150.007

Heated Element

515176999

$66.39

150.0075

Was 515175506 Tubing

219704426

$132.06

150,010

Switch Housing

510005036

$17.13

150.011

Torx Screw K50 X 16

250000720

$1.60

150.0115

Screw M4 X 16

250000725

$3.30

150.012

Rocker Switch

510004413

$8.31

150.013

Switch Protector

510004414

$7.15

150.014

Handle Harness

515176697

$27.58

150,020

Reinforcement Handle

510005814

$17.88

150.021

Connector Decal

516003937

$15.64

150.022

Heated Handle Decal

516003816

$10.04

150.04

Male Connector

515176033

$14.90

155

Passenger Handle Trim

510006602

$11.36

160

Hex Torx Truss M8 X30

250000745

$2.96

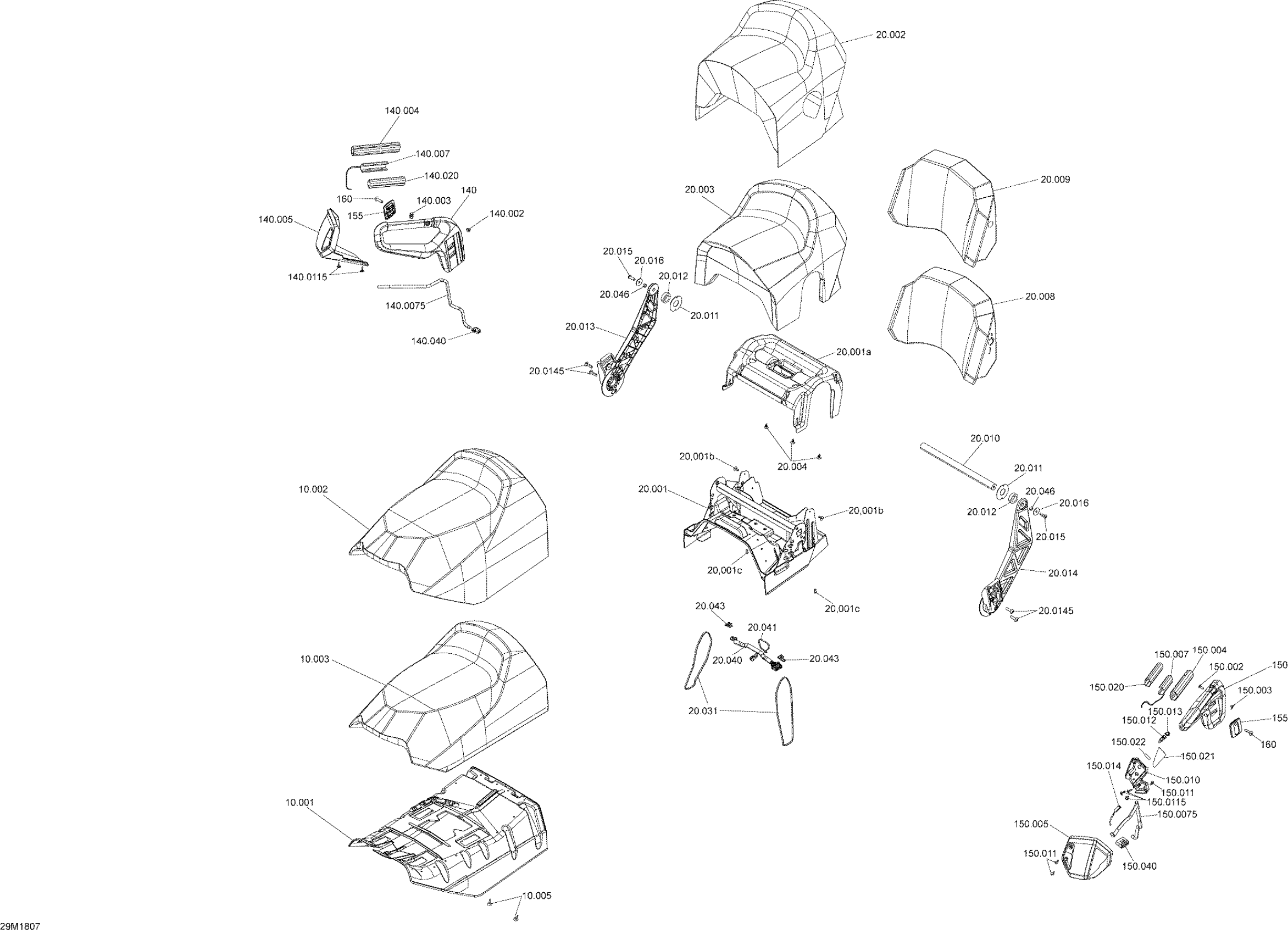

Ski-Doo GRAND TOURING 600 ACE, 2018 Seat Grand Touring Sport Diagram

Front Seat Base

Seat Cover

Front Seat Foam

Rubber Stopper

Seat Base Ass'y | Includes 20a to 20a3

Foam Support

Pop Rivet 3/16" | DS 650 X

Pop Rivet 3/16"

Rear Seat Cover

Rear Seat Foam

Black, Dart

Backrest Foam

Backrest Cover | Not Shown

Upper Backrest Axle

Washer

Rubber Shim

RH Arm, Black

LH Arm, Black

Hex Torx Truss M8 X30

Hex Torx Truss M8 X30

Flat Washer 8 mm

Tie Wrap 368 mm

Seat Harness

Tie-Rap 180 mm

Housing Support

Spacer

RH Handle Ass'y | Includes 140a to 140a9

Torx Truss Screw M6 X 16

Nut Welded, M6

Handle Grip

RH Air Deflector

Heated Element

Was 515175506 Tubing

Screw M4 X 16

Reinforcement Handle

Male Housing, 3 Circuits

LH Handle Ass'y | Includes 150a to 150a16

Torx Truss Screw M6 X 16

Nut Welded, M6

Handle Grip

LH Air Deflector

Heated Element

Was 515175506 Tubing

Switch Housing

Torx Screw K50 X 16

Screw M4 X 16

Rocker Switch

Switch Protector

Handle Harness

Reinforcement Handle

Connector Decal

Heated Handle Decal

Male Connector

Passenger Handle Trim

Hex Torx Truss M8 X30
