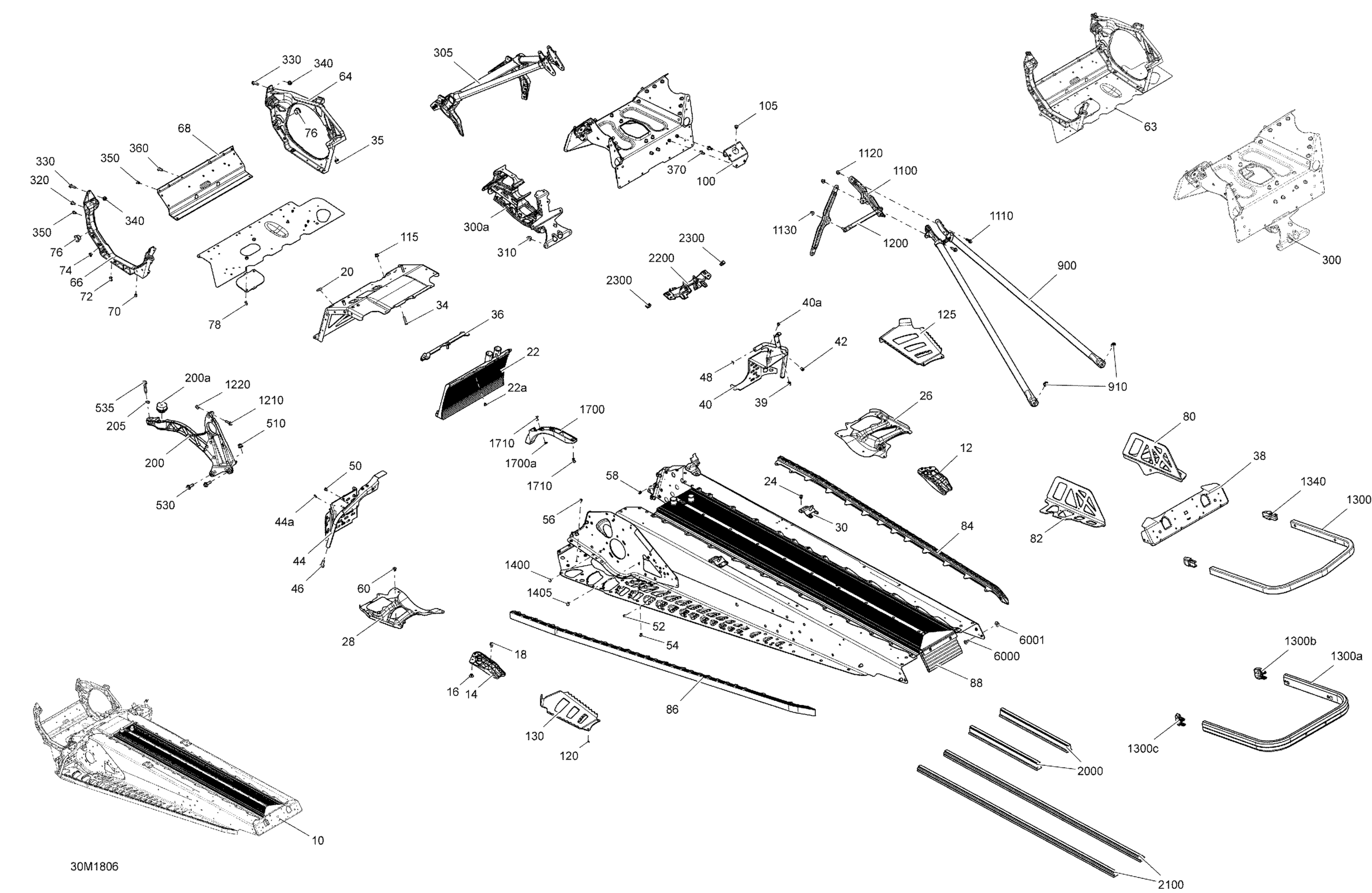

Ski-Doo GRAND TOURING 600 ACE, 2018 Frame Grand Touring - 600 ACE Diagram

#

Description
Price

10

FRAME GTX - Call your local BRP dealership | Includes 10 to 10aw

415130265

Unavailable

12

RH Deflector, Black Polypropylene

518325782

$11.42

14

LH Deflector, Black Polypropylene

518325783

$11.42

16

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

18

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.79

20

Adhesive Patch

518325560

$4.21

22

Front Radiator Ass'y | Includes 10a to 10b

518327907

$502.21

22a

Rivet Avibulb 3/16

293150203

$0.28

23

Clinch Stud M6 X 20

250300027

$1.87

24

Hemlock Rivet, 6.4 mm

293150174

$6.24

26

RH Reinforcement, Running Board

518326937

$24.60

28

LH Reinforcement, Running Board

518326938

$24.60

30

RH Rear Base

518325973

$17.88

30

LH Rear Base | Includes 10v to 10x

518325974

$17.88

34

Clinch Stud M6 X 30

250300031

$1.87

35

Insert

293450275

$11.36

36

Seal

518326656

$8.18

38

Rear Cap

518327105

$20.12

39

Insert

293450275

$11.36

40

RH Stirup | Includes 10p to 10q

518328942

$155.94

40a

Avex Rivet

390909200

$0.28

42

Insert M5 X 0.8

293450268

$1.90

44

LH Stirup | Includes 10s to 10t

518328528

$155.94

44a

Avex Rivet

390909200

$0.28

46

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.81

48

Full Moon Dart 5 mm

293730042

$2.06

50

Insert M5 X 0.8

293450268

$1.90

52

Rivet Avibulb 3/16

293150203

$0.28

54

Avex Rivet

390909100

$0.28

56

Stavex Rivet

293150144

$0.75

58

Henrob Rivet

293150146

$1.87

60

Hemlock Rivet, 6.5 mm

293150119

$3.88

63

E Module | Includes 10ad to 10ap

518328078

$461.16

64

RH Side Member

518326328

$252.21

66

LH Side Member

518326330

$252.21

68

Front Member

518326198

$58.18

70

Stavex Rivet

293150144

$0.75

72

Hemlock Rivet 6.5 mm

293150120

$7.01

74

Hemlock Rivet, 6.5 mm

293150119

$3.88

76

Leg Cushion

505073317

$5.75

78

Torx Truss Screw M6 X 12

250000767

$1.91

80

RH Bracket | Sport

518328787

$73.10

82

LH Bracket | Sport

518328788

$71.61

84

RH Roller

518328124

$170.12

86

LH ROLLER - Call your local BRP dealership

518328125

Unavailable

88

Rear Radiator Ass'y, 137" | SPORT

518326641

$679.07

100

Engine Support

518326178

$61.16

105

Hemlock Rivet, 6.4 mm

293150174

$6.24

115

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

200

ASS'Y BRACE KIT - Call your local BRP dealership | Includes 200 to 200a This part replaces 518327535.

415130014

$252.21

200a

Vibration Damper

512061516

$55.94

205

Conical Spring Washer M8

234281474

$1.43

300

Cross Member S Module | Includes 300a to 300b

518328320

$445.49

300a

Front Suspension Support

518327487

$259.67

305

Front Member

518327565

$306.69

310

Hex. Flange Elastic Nut M8

233281414

$1.31

320

Screw-Forming Hex.HD.FL. M6 X 16

250001051

$1.15

330

Hex. Flange Screw M6 X 25

207662544

$0.61

340

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

350

Monobolt Rivet, 4.8 mm

293150191

$0.93

360

Monobolt Rivet 6.4

293150182

$2.82

370

Hex. Flange Screw M6 X 16

207661644

$0.70

510

Hex. Flange Elastic Nut M8

233281414

$1.31

530

Hex. Flange Screw M8 X 25, Nylon

250000351

$2.00

535

Hex. Flange Screw, Scotch Grip

207584034

$2.00

900

Rear Member

518326559

$237.28

910

Hex. Flange Elastic Nut M8

233281414

$1.31

1100

Upper Column Support

518326848

$12.67

1110

Hex. Flange Screw M6 X 20

207662044

$1.91

1120

Elastic Flange Nut M6 X 1.0

233261416

$2.00

1130

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

1200

Center Column Support

518326355

$20.12

1210

Hex. Flange Screw M6 X 25

207662544

$0.61

1220

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

1300

Clear Rear Bumper

518324980

$94.00

1300a

Clear Rear Bumper | Sport

518325577

$106.69

1300b

Full Moon RH Cap

520000711

$8.34

1300c

Full Moon LH Cap

520000712

$8.34

1340

Full Moon Cap

520000567

$8.36

1400

Full Moon Dart 8 mm

293730041

$2.06

1405

Full Moon Dart 10 mm

293730059

$4.28

1700

Front Tunnel Protector | Includes 1700 to 1700a

518326973

$17.13

1700a

Washer

517124300

$0.18

1710

Pop Rivet 3/16”

293150108

$1.19

2000

Tunnel Prot. - Call Your Local BRP Dealership This part replaces 860200267.

860200802

Unavailable

2100

Tunnel Prot. - Call Your Local BRP Dealership This part replaces 860200267.

860200802

Unavailable

2200

Sub A Support

518327145

$76.84

2300

Panel Nut M5 X 0.8

250000958

$4.00

6000

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.00

6001

Flat Washer

224061201

$1.27
