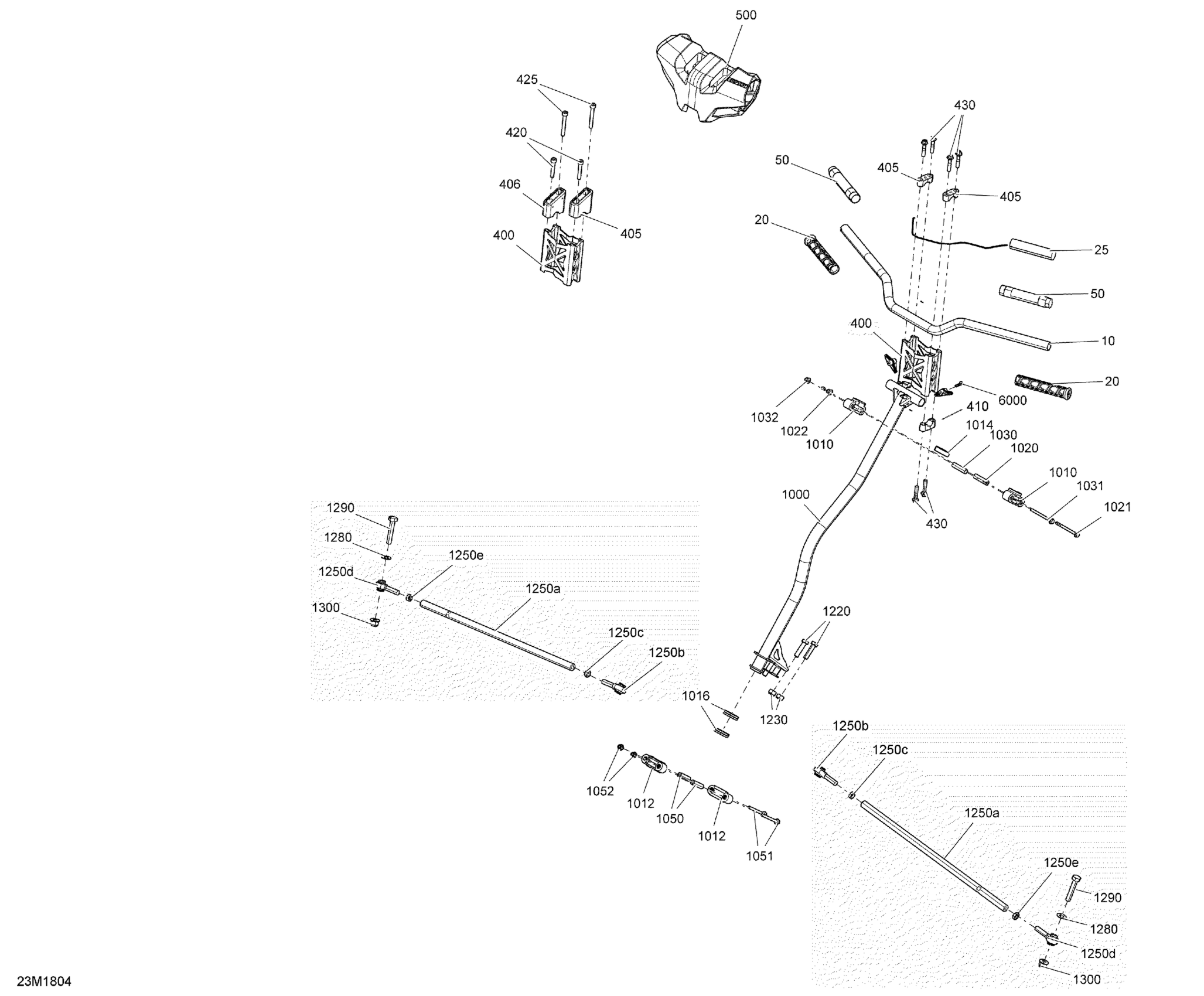

Ski-Doo GRAND TOURING 600 ACE, 2018 Steering Grand Touring - 600 ACE Diagram

Handle Bar, Non Dyed Clear Anodizing

506152709

$79.07

Grip 148mm

506152560

$15.64

Heating Element 32 Watt 2 Wires

506152758

$42.51

RH Heating Element 32 Watt

506152799

$34.30

Thermal Insulation

506153176

$5.54

Handlebar Extension Kit (115mm) This part replaces 506152571.

860200819

Unavailable

Steering Support | Includes 40 to 40a

506152751

$11.58

Steering Support | Includes 40 to 40a

506152751

$11.58

Hex. Flange Screw M8 X 1.25 x 40

250000852

$2.00

Hex. Flange Screw M8 X 1.25 x 40

250000852

$2.00

Deep Black, Steering Pad

506152541

$41.01

Steering Column

506152964

$183.55

Upper Half-Housing

506152508

$7.18

Lower Half-Housing

506152217

$5.40

Upper Anti-Vibration Gasket

506152509

$4.39

Lower Vibration Ring

506152518

$4.39

Housing Bushing

506152297

$9.93

Hex. Flange Screw M6 X 70

207667056

$4.15

Elastic Flange Nut M6 X 1.0

233261416

$2.00

Housing Bushing

506152297

$9.93

Hex. Flange Screw M6 X 70

207667056

$4.15

Elastic Flange Nut M6 X 1.0

233261416

$2.00

Housing Bushing

506152297

$9.93

Hex. Flange Screw M6 X 70

207667056

$4.15

Elastic Flange Nut M6 X 1.0

233261416

$2.00

Housing Bushing

506152297

$9.93

Hex. Flange Screw M6 X 70

207667056

$4.15

Elastic Flange Nut M6 X 1.0

233261416

$2.00

Plate

506152163

$9.93

Hex. Screw M10 X 1.5 X 40

207004034

$2.00

Elastic Locking Nut M10

233601466

$2.00

Tie-Rod Ass'y

506152496

$58.18

LH Thread Ball Joint

506152081

$38.78

LH Threaded Hex. Jam Nut M10

250100016

$0.70

RH Threaded Ball Joint

506152019

$38.78

RH Threaded Hex. Jam Nut M10

732610010

$0.70

Washer

506152582

$4.28

Hex Screw M10 X 1.5 X 55

207005554

$7.09

Hex. Flange Elastic M10 x 1.5

233201464

$7.09

Torx Screw Truss Head K50X20 T20

250000760

$2.00
