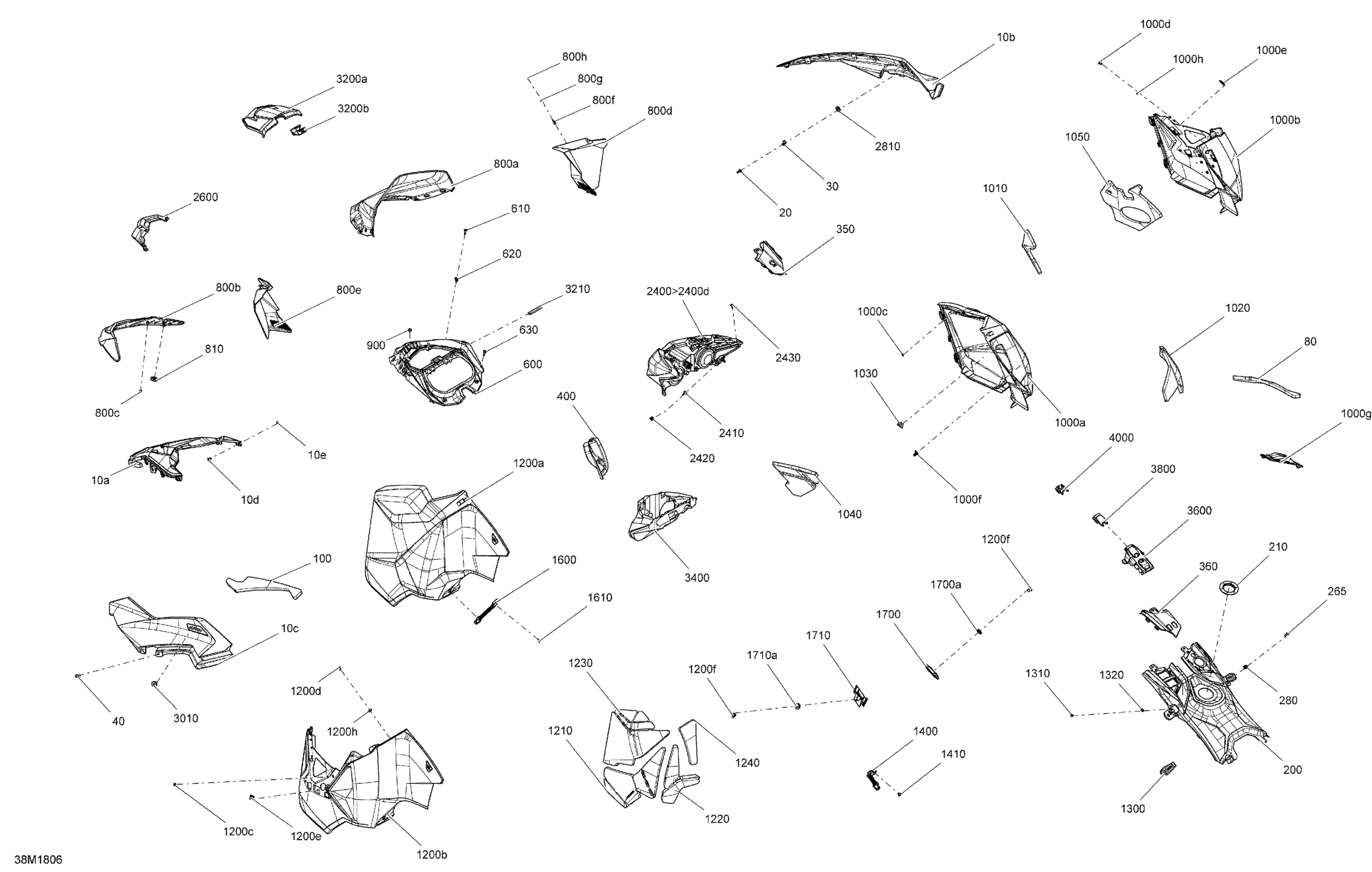

Ski-Doo EXPEDITION SPORT 600 ACE, 2018 Hood Expedition - 600 & 900 ACE Diagram

#

Description
Price

10a

Deep Black Center Hood

517305011

$214.99

10b

Bright White, RH Hood

517305284

$214.99

10c

Bright White, LH Hood

517305285

$219.99

10d

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

10e

Washer

517124300

$0.19

20

Torx Screw M5 X 20

250000528

$2.11

30

Panel Nut M5 X 0.8

250000958

$4.23

40

Torx Screw M5 X 26

250000587

$4.44

80

RH Rear Hood Foam

517305090

$16.49

100

LH Rear Hood Foam

517305091

$16.49

200

White, Rear Console

517305557

$234.99

210

Console Nut

517304518

$15.29

265

Torx Truss Screw M6 X 20

250000705

$2.11

280

Panel Nut M6 X 1.0

250100198

$2.11

350

Deep Black, RH Front Console

517305549

$21.99

360

LH Front Console

517306022

$31.99

400

Deep Black RH Console

517305061

$28.99

600

Deep Black, Indicator Support

517305511

$60.99

610

Torx Screw M5 X 20

250000528

$2.11

620

Panel Nut M5 X 0.8

250000958

$4.23

630

Torx Screw M5 X 26

250000587

$4.44

800a

Windshield 450mm

860200928

$159.99

800b

Windshield Support Long, Yellow 2000

860200944

$38.49

800c

Push Nut

732610072

$2.19

800d

RH Air Deflector, Black 63% Transm.

517304928

$32.99

800e

LH Air Deflector, Black 63% Transm.

517304929

$40.99

800f

Torx Screw K50 X 16

250000720

$1.69

800g

Washer M5

250200025

$0.74

800h

Rubber Washer 5 mm

250200024

$2.19

810

Grommet

517303756

$4.09

900

Rubber Bumper

293830005

$8.09

1000a

White, RH Panel

517305400

$209.99

1000b

Black, RH Panel Trim

517305058

$249.99

1000c

Push Nut

250100158

$2.11

1000d

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

1000e

Rivet Plate

517305109

$4.99

1000f

Pin

517305734

$3.49

1000g

Deep Black, RH Panel Vent Grid

517304935

$31.99

1000h

Washer

517124300

$0.19

1010

RH Foam Central

517305197

$16.49

1020

RH Foam Rear

517305199

$21.99

1030

Heat Shield | Europe

517305451

$2.29

1040

RH Foam Upper

517305196

$30.99

1050

RH Foam Lower

517305198

$28.99

1200a

White, LH Panel

517305407

$214.99

1200b

Black, LH Flashing Panel

517304805

$189.99

1200c

Push Nut

250100158

$2.11

1200d

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

1200e

Rivet Plate

517305109

$4.99

1200f

Pin

517305734

$3.49

1200g

Washer

517124300

$0.19

1210

LH Center Panel Foam

517305201

$14.49

1220

LH Lower Panel Foam

517305202

$21.99

1230

LH Upper Panel Foam

517305200

$21.99

1240

LH Rear Panel Foam

517305203

$21.99

1300

Panel Latch

517305279

$18.99

1310

Hexalob Screw M4 X 10

250000565

$2.11

1320

Weld Nut M4

250100156

$4.34

1400

RH Panel Latch

517304919

$16.49

1410

Pop Rivet 3/16”

293150108

$1.19

1600

LH Panel Latch

517303808

$11.49

1610

Pop Rivet 3/16”

293150108

$1.19

1700

RH Panel Clip Ass'y, Black | Includes 1700 to 1700a

517305724

$16.49

1700a

Ring

517305723

$3.49

1710

LH Panel Clip Ass'y, Black | Includes 1710 to 1710a

517305722

$16.49

1710a

Ring

517305723

$3.49

2400

Headlamp

517306180

$249.99

2400a

Cap

219400070

$18.49

2400b

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

2400c

Holder Bracket

219800282

$5.89

2400d

Spring

219800281

$3.49

2400e

Harness

415130194

Unavailable

2400f

Connector Holder

710002033

$3.39

2410

Torx Screw M5 X 20

250000528

$2.11

2420

Jack Nut M5

250100035

$6.99

2430

Screw M4 X 16

250000725

$3.49

2600

Headlight Trim Cap

517305010

$37.99

2810

Grommet

517302841

$7.89

3010

Grommet

517302841

$7.89

3200a

Deep Black, Upper Storage Access Cover

517304912

$18.49

3200b

Cover Latch

517304917

$12.99

3210

Seal Joint

517305157

$2.39

3400

Deep Black, Trunk

517305095

$21.99

3600

Deep Black, Console Support

517304970

$14.49

3800

Deep Black, Support Console Cap

517305180

$4.99

4000

Deep Black, Support Console Cap

517305148

$4.99
