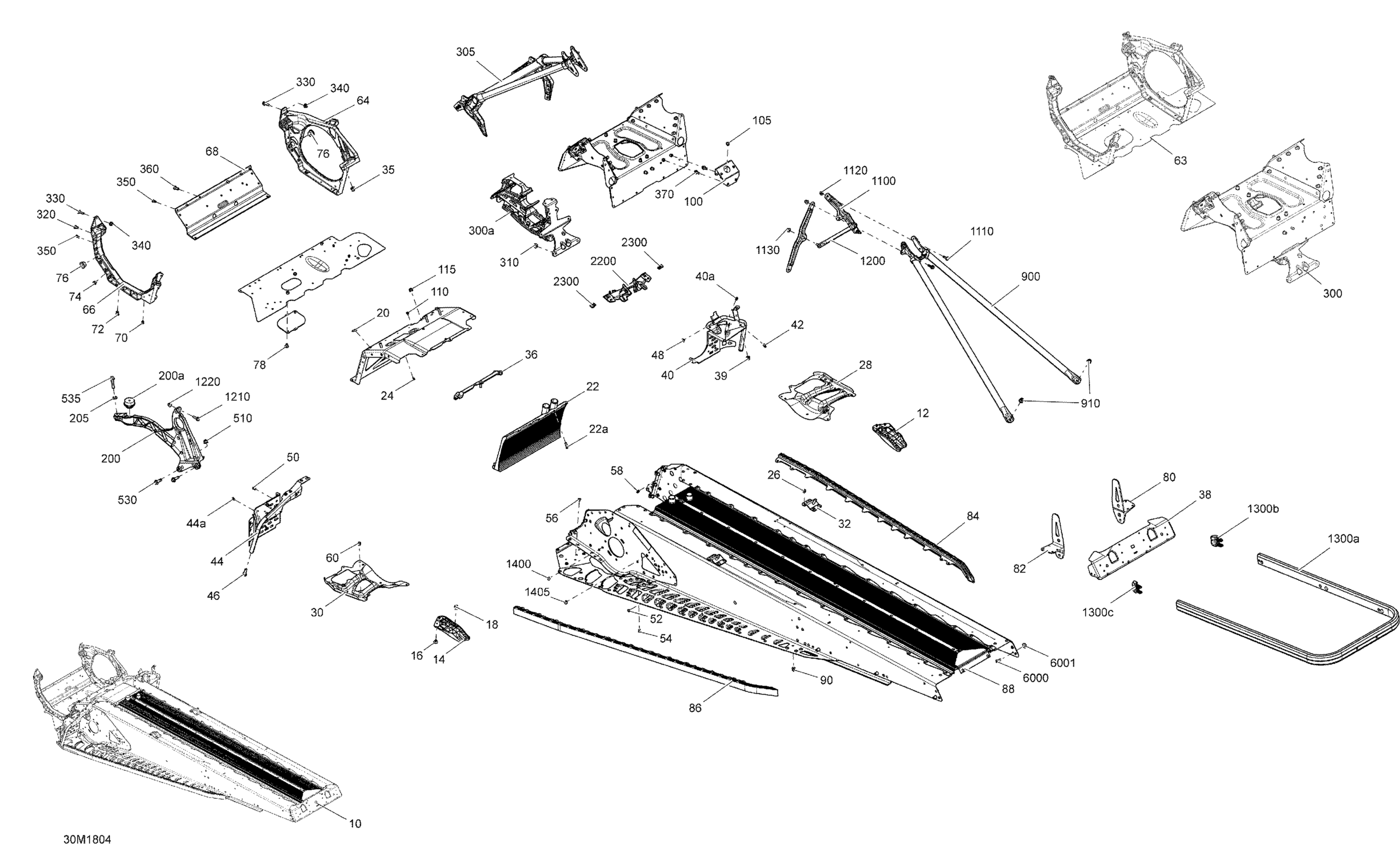

Ski-Doo EXPEDITION SPORT 600 ACE, 2018 Frame Expedition - 600 ACE Diagram

FRAME 154 EXPEDITION - Call your local BRP dealership | Includes 10 to 10aw

415130266

Unavailable

RH Deflector, Black Polypropylene

518325782

$11.77

LH Deflector, Black Polypropylene

518325783

$11.77

Pop Rivet 3/16" | DS 650 X

293150104

$1.37

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

Adhesive Patch

518325560

$4.34

Front Radiator Ass'y | Includes 10a to 10b

518327907

$517.66

Clinch Stud M6 X 20

250300027

$1.92

Rivet Avibulb 3/16

293150203

$0.29

Hemlock Rivet, 6.4 mm

293150174

$6.43

RH Reinforcement, Running Board

518326937

$25.35

LH Reinforcement, Running Board

518326938

$25.35

RH Rear Base

518325973

$18.43

LH Rear Base | Includes 10v to 10x

518325974

$18.43

Insert

293450275

$9.89

Seal

518326656

$8.43

Rear Cap

518327105

$20.74

Insert

293450275

$9.89

RH Stirup | Includes 10p to 10q

518328942

$166.12

Avex Rivet

390909200

$0.29

Insert M5 X 0.8

293450268

$1.95

LH Stirup | Includes 10s to 10t

518328528

$166.12

Avex Rivet

390909200

$0.29

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.70

Full Moon Dart 5 mm

293730042

$2.12

Insert M5 X 0.8

293450268

$1.95

Rivet Avibulb 3/16

293150203

$0.29

Avex Rivet

390909100

$0.29

Stavex Rivet

293150144

$0.77

Henrob Rivet

293150146

$1.92

Hemlock Rivet, 6.5 mm

293150119

$4.00

E Module | Includes 10ad to 10ap

518328078

$475.35

RH Side Member

518326328

$259.97

LH Side Member

518326330

$259.97

Front Member

518326198

$59.97

Stavex Rivet

293150144

$0.77

Hemlock Rivet 6.5 mm

293150120

$7.23

Hemlock Rivet, 6.5 mm

293150119

$4.00

Leg Cushion

505073317

$5.92

Torx Truss Screw M6 X 12

250000767

$1.66

RH Suspension Bracket

518327605

$45.99

LH Suspension Bracket

518327606

$45.99

RH Roller

518328098

$180.74

LH Roller

518328099

$180.74

Rear Radiator Ass'y, 154" | Includes 10bm to 10bn

518326692

$699.97

Ornit Rivet 6,5 X 14.5

293150266

$1.94

Engine Support

518326178

$63.05

Hemlock Rivet, 6.4 mm

293150174

$6.43

Pop Rivet 3/16"

390402400

$0.25

Hex. Flange Nut M6

233161414

$1.74

ASS'Y BRACE KIT - Call your local BRP dealership | Includes 200 to 200a This part replaces 518327535.

415130014

$259.97

Vibration Damper

512061516

$57.66

Conical Spring Washer M8

234281474

$1.25

Cross Member S Module | Includes 300a to 300b

518328320

$459.20

Front Suspension Support

518327487

$267.66

Front Member

518327565

$316.12

Hex. Flange Elastic Nut M8

233281414

$1.14

Screw-Forming Hex.HD.FL. M6 X 16

250001051

$1.00

Hex. Flange Screw M6 X 25

207662544

$0.53

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Monobolt Rivet, 4.8 mm

293150191

$0.95

Monobolt Rivet 6.4

293150182

$2.91

Hex. Flange Screw M6 X 16

207661644

$0.61

Hex. Flange Elastic Nut M8

233281414

$1.14

Hex. Flange Screw M8 X 25, Nylon

250000351

$1.74

Hex. Flange Screw, Scotch Grip

207584034

$2.06

Rear Member

518326559

$244.58

Hex. Flange Elastic Nut M8

233281414

$1.14

Upper Column Support

518326848

$13.06

Hex. Flange Screw M6 X 20

207662044

$1.66

Elastic Flange Nut M6 X 1.0

233261416

$1.74

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Center Column Support

518326355

$20.74

Hex. Flange Screw M6 X 25

207662544

$0.53

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Clear Rear Bumper

518325579

$109.97

Full Moon RH Cap

520000711

$8.60

Full Moon LH Cap

520000712

$8.60

Full Moon Dart 8 mm

293730041

$2.12

Full Moon Dart 10 mm

293730059

$4.42

Sub A Support

518327145

$79.20

Panel Nut M5 X 0.8

250000958

$3.48

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$1.74

Flat Washer

224061201

$1.11
