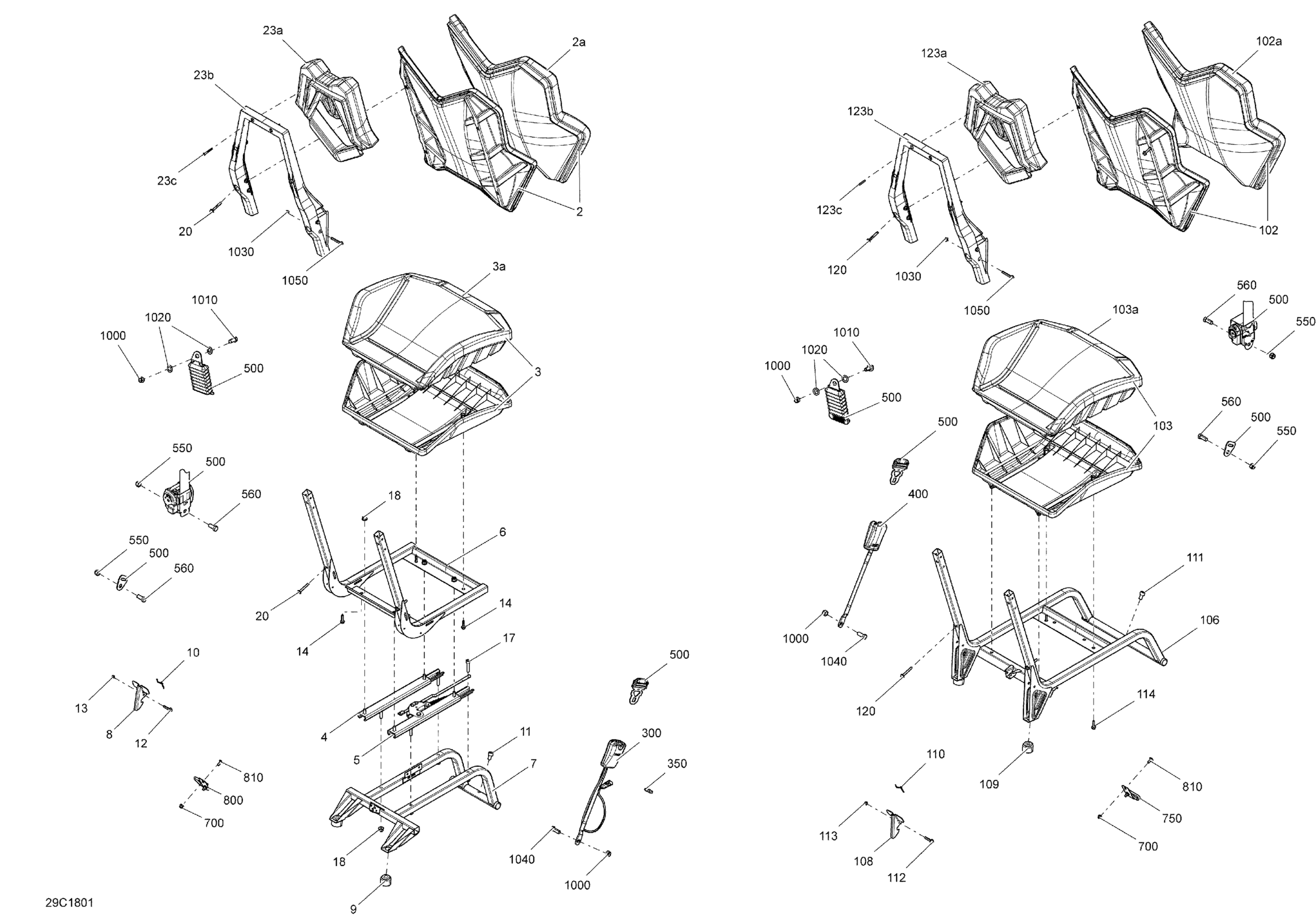

Can-Am Commander 1000R EFI, 2018 Seat Commander Non MAX Diagram

#

Description
Price

2

Backrest Ass'y | Includes 2 to 3

703500945

$378.43

2

Backrest Ass'y | Includes 2 to 3

703500945

$378.43

2

Backrest Ass'y | Includes 2 to 3

703500945

$378.43

2

Backrest Ass'y Black | XTP

708002246

$332.28

2

Backrest Ass'y | Package LTD

708002616

$415.35

2a

Backrest Cover

708000675

$92.28

2a

Backrest Cover

708000675

$92.28

2a

Backrest Cover

708000675

$92.28

2a

Backrest Cover Black | XTP

708002248

$124.58

2a

Backrest Cover | Package LTD

708002618

$152.28

3

Cushion Ass'y | Includes 4 to 5

703500943

$332.28

3

Cushion Ass'y | Includes 4 to 5

703500943

$332.28

3

Cushion Ass'y | Includes 4 to 5

703500943

$332.28

3

Cushion Ass'y Black | XTP

708002247

$295.35

3

Cushion Ass'y | Package LTD

708002617

$295.35

3a

Seat Cover

708001103

$110.74

3a

Seat Cover

708001103

$110.74

3a

Seat Cover

708001103

$110.74

3a

Cushion Cover Black | XTP

708002249

$78.43

3a

Seat Cover | Package LTD

708002619

$96.89

4

LH Rail

708000848

$50.74

5

RH Rail

708001739

$36.89

6

Operator Seat Frame

708001356

$313.82

7

Seat Member

708000667

$55.35

8

Seat Latch

708001355

$2.75

9

Rubber Bumper

708001671

$2.31

10

Spring

708000921

$1.15

11

Socket Screw M10 X 16

205501644

$3.38

12

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

13

Hex. Elastic Stop Nut M6

232561600

$0.92

14

Hex. Flange Screw M6 X 25

207562544

$1.39

17

Socket Head Screw M8 X 1.25 X 40

205084044

$2.80

18

Hex. Flange Elastic Nut M8

233281414

$1.14

20

Hex. Flange Screw M6

250000672

$1.74

23a

Head Rest

708001074

$96.89

23b

Seat Support

708001245

$27.66

23c

Hex. Flange Screw K50 X 40

250000897

Unavailable

102

Backrest Ass'y | Includes 2 to 3

703500945

$378.43

102

Backrest Ass'y Black | XTP

708002246

$332.28

102

Backrest Ass'y | Package LTD

708002616

$415.35

102a

Backrest Cover

708000675

$92.28

102a

Backrest Cover Black | XTP

708002248

$124.58

102a

Backrest Cover | Package LTD

708002618

$152.28

103

Cushion Ass'y | Includes 4 to 5

703500943

$332.28

103

Cushion Ass'y Black | XTP

708002247

$295.35

103

Cushion Ass'y | Package LTD

708002617

$295.35

103a

Seat Cover

708001103

$110.74

103a

Cushion Cover Black | XTP

708002249

$78.43

103a

Seat Cover | Package LTD

708002619

$96.89

106

Passenger Seat Frame

708001357

$304.58

108

Seat Latch

708001355

$2.75

109

Rubber Bumper

708001671

$2.31

110

Spring

708000921

$1.15

111

Socket Screw M10 X 16

205501644

$3.38

112

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

113

Hex. Elastic Stop Nut M6

232561600

$0.92

114

Hex. Flange Screw M6 X 25

207562544

$1.39

120

Hex. Flange Screw M6

250000672

$1.74

123a

Head Rest

708001074

$96.89

123b

Seat Support

708001245

$27.66

123c

Hex. Flange Screw K50 X 40

250000897

Unavailable

300

Driver Buckle Side

708002061

$69.20

400

Passenger Buckle Side | Model-North America, International

708002062

$50.74

500

Safety Belt

708002644

$272.28

550

Nylon Insert Hex. Lock Nut 7/16-20

250100135

$5.84

560

Hex. Cap Screw 7/16'' X 1'' | Europe

250000521

$1.56

700

Threaded Insert M6 X 1.0

250100242

Unavailable

750

Retaining Rod RH

708002303

$14.37

800

Retaining Rod LH

708002302

$14.75

810

Torx Head Screw M6 X 16

250000717

$1.74

1000

Nylon Insert Hex. Lock Nut 7/16-20

250100135

$5.84

1010

Safety Belt Screw

708000890

$3.68

1020

Position Washer

708000891

$1.15

1030

Hex. Elastic Flange Nut M6

233161464

$0.83

1040

Hex. Cap Screw 7/16'' X 1'' | Europe

250000521

$1.56

1050

Hex. Flange Screw M6

250000672

$1.74
