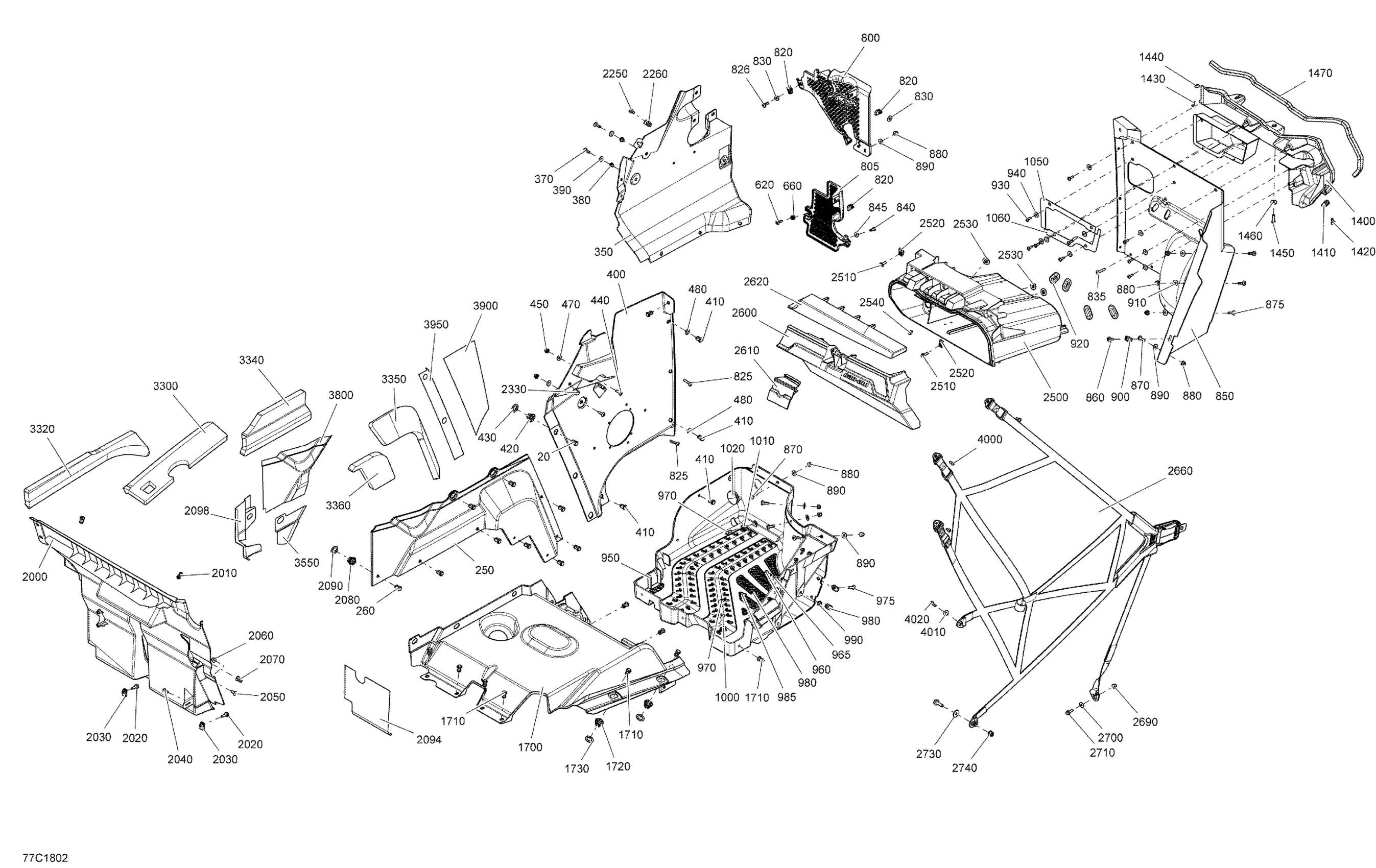

Can-Am Commander 1000R EFI, 2018 Cab Interior Commander Non MAX - Side Panels All Models Diagram

#

Description
Price

20

Tuflok Plastic Rivet

293150230

$1.39

250

RH Side Console

707900002

$32.81

260

Tuflok Plastic Rivet

293150230

$1.39

350

Front Side Dash Panel

707900193

$62.66

370

Torx Screw M6 X 20

250000722

$1.54

380

Threaded Insert M6 X 1.0

250100242

Unavailable

390

Stainless Steel Flat Washer

234062670

$2.00

400

RH Fixe Side Console

707900021

$68.63

400

RH Fixe Side Console

707900021

$68.63

400

RH Fixe Side Console | LTD Model

707900098

$79.07

410

Tuflok Plastic Rivet

293150230

$1.39

420

Insert

707900133

$2.89

430

Washer

503189273

$3.10

440

Torx Screw M6 X 20

250000722

$1.54

450

Threaded Insert M6 X 1.0

250100242

Unavailable

470

Stainless Steel Flat Washer

234062670

$2.00

480

Washer

506151252

$3.01

620

Torx Screw M6 X 20

250000722

$1.54

660

Threaded Insert M6 X 1.0

250100242

Unavailable

800

Grille

707900178

$8.91

805

Grille

707900180

$8.91

820

Panel Nut M6 X 1.0

250100198

$1.99

825

Torx Truss Screw M6 X 30

250000843

$2.00

826

Torx Screw M6 X 20

250000722

$1.54

830

Stainless Steel Flat Washer

234062670

$2.00

835

Torx Truss Screw M6 X 30

250000843

$2.00

840

Torx Screw K50 X 16

250000720

$1.60

845

Washer M5

250200025

$0.70

850

RH Front Floor

707900004

$74.60

860

Torx Screw M6 X 20

250000722

$1.54

870

Torx Screw M6 X 20

250000712

$2.00

875

Torx Screw M6 X 25

250000758

$2.00

880

Hex. Flange Elastic Nut M6

233261494

$1.45

890

Stainless Steel Flat Washer

234062670

$2.00

900

Panel Nut M6 X 1.0

250100198

$1.99

910

Stainless Steel Flat Washer

234062670

$2.00

920

Oblong Grommet

705003668

$5.21

930

Torx Screw K50 X 16

250000720

$1.60

940

Flat Washer 6 mm

234062410

$0.73

950

RH Lower Floor

707900023

$172.36

960

Torx Screw M6 X 20

250000712

$2.00

965

Stainless Steel Flat Washer

234062670

$2.00

970

Torx Screw M6 X 20

250000722

$1.54

975

Torx Truss Screw M6 X 25

250000807

$2.00

980

Panel Nut M6 X 1.0

250100198

$1.99

985

Torx Screw M6 X 20

250000722

$1.54

990

Hex. Flange Elastic Nut M6

233261494

$1.45

1000

Stainless Steel Flat Washer

234062670

$2.00

1010

Threaded Insert M6 X 1.0

250100242

Unavailable

1020

Rubber Cover

293250242

$5.18

1050

Upper Seal

293250252

$2.59

1060

Bottom Seal

293250253

$2.79

1400

SUPPORT_PANEL RH - Call your local BRP dealership

707900030

Unavailable

1410

Panel Nut M6 X 1.0

250100198

$1.99

1420

Torx Screw M6 X 20

250000722

$1.54

1430

Torx Screw K50 X 16

250000720

$1.60

1440

Flat Washer

224060201

$1.12

1450

Hex. Screw M6 X 25

207162544

$1.01

1460

Flat Washer

224061201

$1.27

1470

Was 293200017 Neoprene Seal

219704365

$135.79

1700

RH Under Seat Plate

707900006

$100.72

1710

Tuflok Plastic Rivet

293150230

$1.39

1720

Insert

707900133

$2.89

1730

Washer

503189273

$3.10

2000

DEFLECTOR_BODY PANEL REAR R - Call your local BRP dealership

707900166

Unavailable

2010

Tuflok Plastic Rivet

293150230

$1.39

2020

Hex. Flange Screw M6 X 20

207662034

$2.00

2030

Panel Nut M6 X 1.0

250100198

$1.99

2040

Torx Screw K50 X 16

250000720

$1.60

2050

Torx Screw M6 X 16

250000755

$0.82

2060

Hex. Flange Elastic Nut M6

233261494

$1.45

2070

Tuflok Plastic Rivet

293150230

$1.39

2080

Insert

707900133

$2.89

2090

Washer

503189273

$3.10

2094

Heat Shield

707900167

$7.67

2098

Heat Shield

707900184

$4.76

2250

Torx Screw M6 X 20

250000722

$1.54

2260

Panel Nut M6 X 1.0

250100198

$1.99

2330

Tuflok Plastic Rivet

293150230

$1.39

2500

Storage Bin

707900009

$103.70

2500

Storage Bin | XT

707900046

$91.01

2510

Hex. Flange Screw M6 X 20

207662034

$2.00

2520

Panel Nut M6 X 1.0

250100198

$1.99

2530

CAP - Call your local BRP dealership

414859400

Unavailable

2540

Rubber Bumper

293830005

$6.12

2600

LUGGAGE COVER KIT - Call your local BRP dealership

707900221

Unavailable

2610

Latch

707900031

$7.57

2620

Trim Glove Box

707900062

$16.39

2660

Trim Glove Box

707900062

$16.39

2690

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

2700

Flat Washer 6 mm

234062410

$0.73

2710

Hex. Flange Screw M6 X 20

207662044

$1.91

2730

Flat Washer 8 mm

234082410

$1.27

2740

Hex. Flange Elastic Nut M8

233281414

$1.31

3300

Front Central Console Foam

707900619

$15.64

3320

Left Upper Lateral Console Foam

707900620

$14.76

3340

RH Lateral Console Foam

707900622

$14.49

3350

RH Lateral Console Foam

707900623

$14.49

3360

RH Lateral Console Foam

707900624

$14.49

3550

Heat Sheet

707900148

$6.72

3800

Heat Sheet

707900147

$8.66

3900

Heat Sheet

707900190

$7.67

3950

Heat Sheet

707900191

$0.97

4000

Torx Screw M5 X 14

250000742

$1.37

4010

Flat Washer

250200040

$1.76

4020

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.00
