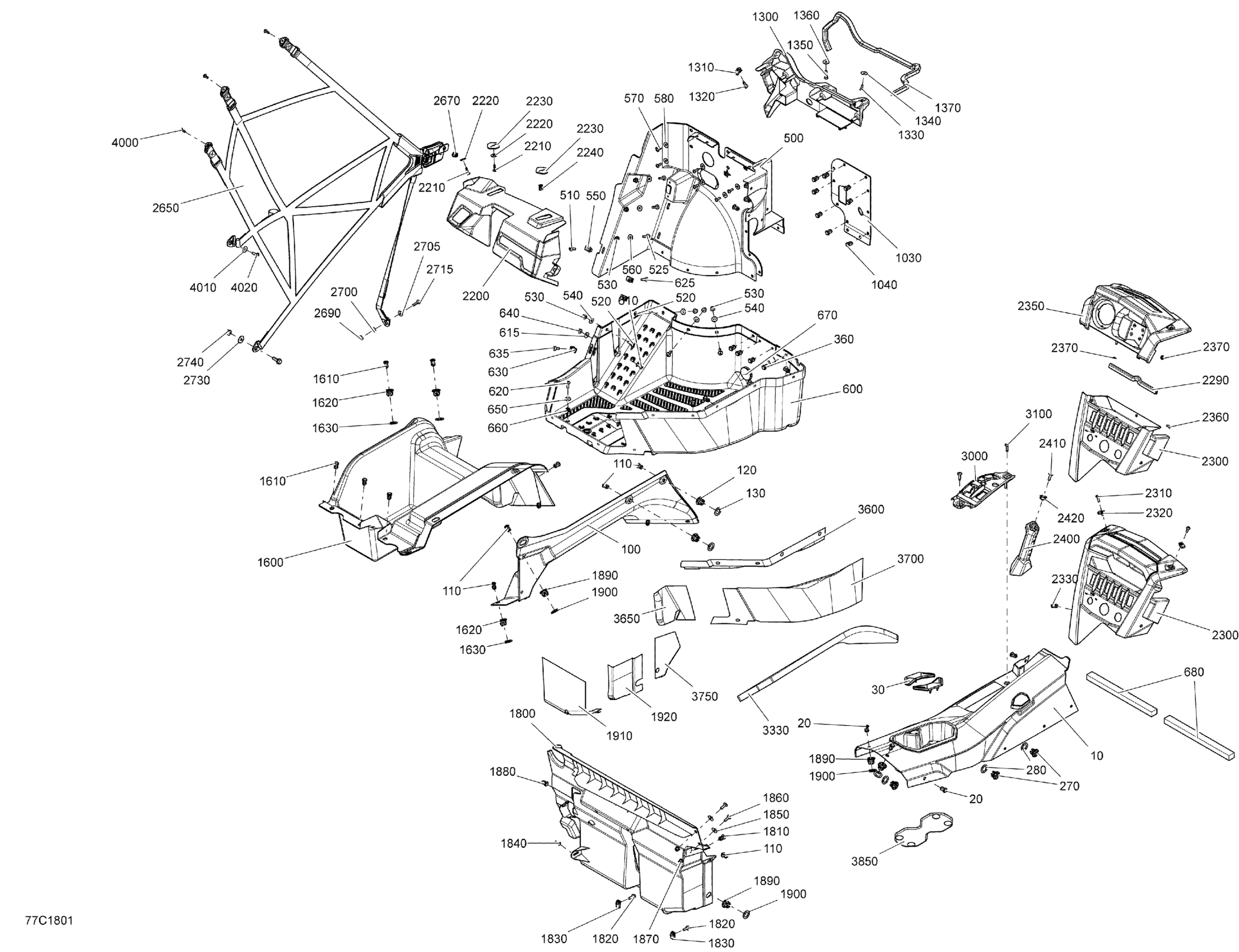

Can-Am Commander 1000R EFI, 2018 Cab Interior Commander Non MAX - Cab Diagram

#

Description
Price

10

Console Ass'y | Except Europe

715004113

$156.89

20

Tuflok Plastic Rivet

293150230

$1.21

30

Cup Retainer

707900036

$6.45

100

LH Side Console

707900001

$41.51

110

Tuflok Plastic Rivet

293150230

$1.21

120

Insert

707900133

$2.75

130

Washer

503189273

$3.20

270

Insert

707900133

$2.75

280

Washer

503189273

$3.20

360

Tuflok Plastic Rivet

293150230

$1.21

500

LH Front Floor

707900181

$78.43

510

Torx Screw M6 X 20

250000722

$1.34

520

Torx Screw M6 X 20

250000712

$1.74

525

Torx Screw M6 X 25

250000758

$1.74

530

Hex. Flange Elastic Nut M6

233261494

$1.26

540

Stainless Steel Flat Washer

234062670

$1.74

550

Panel Nut M6 X 1.0

250100198

$1.73

560

Stainless Steel Flat Washer

234062670

$1.74

570

Torx Screw K50 X 16

250000720

$1.39

580

Flat Washer 6 mm

234062410

$0.64

600

LH Lower Floor

707900022

$253.82

610

Torx Screw M6 X 20

250000712

$1.74

615

Stainless Steel Flat Washer

234062670

$1.74

620

Torx Screw M6 X 20

250000722

$1.34

625

Torx Truss Screw M6 X 25

250000807

$1.74

630

Panel Nut M6 X 1.0

250100198

$1.73

635

Torx Screw M6 X 20

250000722

$1.34

640

Hex. Flange Elastic Nut M6

233261494

$1.26

650

Stainless Steel Flat Washer

234062670

$1.74

660

Threaded Insert M6 X 1.0

250100242

Unavailable

670

Rubber Cover

293250242

$5.38

680

SEAL-TRAY 300MM LONG - Call your local BRP dealership

219704380

Unavailable

1030

Deflector

707900108

$16.89

1030

Deflector

707900192

$16.89

1030

Deflector

707900192

$16.89

1040

Tuflok Plastic Rivet

293150230

$1.21

1300

SUPPORT_PANEL LH - Call your local BRP dealership

707900029

$11.98

1310

Panel Nut M6 X 1.0

250100198

$1.73

1320

Torx Screw M6 X 20

250000722

$1.34

1330

Torx Screw K50 X 16

250000720

$1.39

1340

Flat Washer

224060201

$1.15

1350

Hex. Screw M6 X 25

207162544

$1.05

1360

Flat Washer

224061201

$1.11

1370

Was 293200017 Neoprene Seal

219704365

$118.27

1600

LH Under Seat Plate Kit

715002356

Unavailable

1600

LH Under Seat Plate

707900218

$78.43

1610

Tuflok Plastic Rivet

293150230

$1.21

1610

Tuflok Plastic Rivet

293150230

$1.21

1620

Insert

707900133

$2.75

1630

Washer

503189273

$3.20

1800

LH Rear Deflector

707900164

$92.28

1810

Tuflok Plastic Rivet

293150230

$1.21

1820

Hex. Flange Screw M6 X 20

207662034

$1.74

1830

Panel Nut M6 X 1.0

250100198

$1.73

1840

Torx Screw K50 X 16

250000720

$1.39

1850

Flat Washer

250200040

$1.82

1860

Torx Screw M6 X 20

250000712

$1.74

1870

Hex. Flange Elastic Nut M6

233261494

$1.26

1880

Tuflok Plastic Rivet

293150230

$1.21

1890

Insert

707900133

$2.75

1900

Washer

503189273

$3.20

1910

Heat Shield

707900182

$8.98

1920

Heat Shield

707900183

$5.52

2200

Dashboard Ass'y

715001250

$78.43

2210

Torx Screw Truss Head K50X20 T20

250000760

$1.74

2220

Stainless Steel Flat Washer

234062670

$1.74

2230

Support Plate

705003841

$0.91

2240

Edge Clip

517302785

$0.70

2290

Was 271000110 Protection Trim

219704353

$15.03

2300

Central Dashboard Ass'y

715002178

$36.89

2300

Central Dashboard Ass'y

715002187

$36.89

2310

Torx Screw M5 X 20

250000724

$1.39

2320

Panel Nut M5 X 0.8

250000958

$3.48

2330

Tuflok Plastic Rivet

293150230

$1.21

2350

Gauge Support | LTD Model

707900066

$36.12

2360

Torx Screw K50 X 16

250000720

$1.39

2370

Push Nut

732610072

$1.72

2400

Passenger Handle

707900011

$12.91

2410

Torx Screw M6 X 20

250000722

$1.34

2420

Connector Tube

707900048

$6.45

2650>2650a

Front LH Safety Net

707900237

$124.58

2650a

Buckle

707900035

$50.74

2660>2660a

Front RH Safety Net

707900238

$124.58

2660a

Buckle

707900035

$50.74

2670

Hex. Flange Elastic Nut M8

233281414

$1.14

2690

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

2700

Flat Washer 6 mm

234062410

$0.64

2705

Stainless Steel Flat Washer

234062670

$1.74

2710

Hex. Flange Screw M6 X 20

207662044

$1.66

2715

Torx Screw M6 X 25

250000758

$1.74

2730

Flat Washer 8 mm

234082410

$1.11

2740

Hex. Flange Elastic Nut M8

233281414

$1.14

3000

Lever Indicator

707900070

$14.75

3100

Torx Screw M6 X 25 | XT Models

250000728

$3.61

3330

LH Lower Lateral Console Foam

707900621

$20.74

3600

Heat Sheet

707900149

$8.98

3650

Heat Sheet

707900150

$1.37

3700

Heat Sheet

707900151

$10.14

3750

Heat Sheet

707900146

$11.06

3850

Heat Sheet

707900145

$11.06

3900

Heat Sheet

707900190

$8.45

3950

Heat Sheet

707900191

$1.37

4000

Torx Screw M5 X 14

250000742

$1.20

4010

Flat Washer

250200040

$1.82

4020

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74
