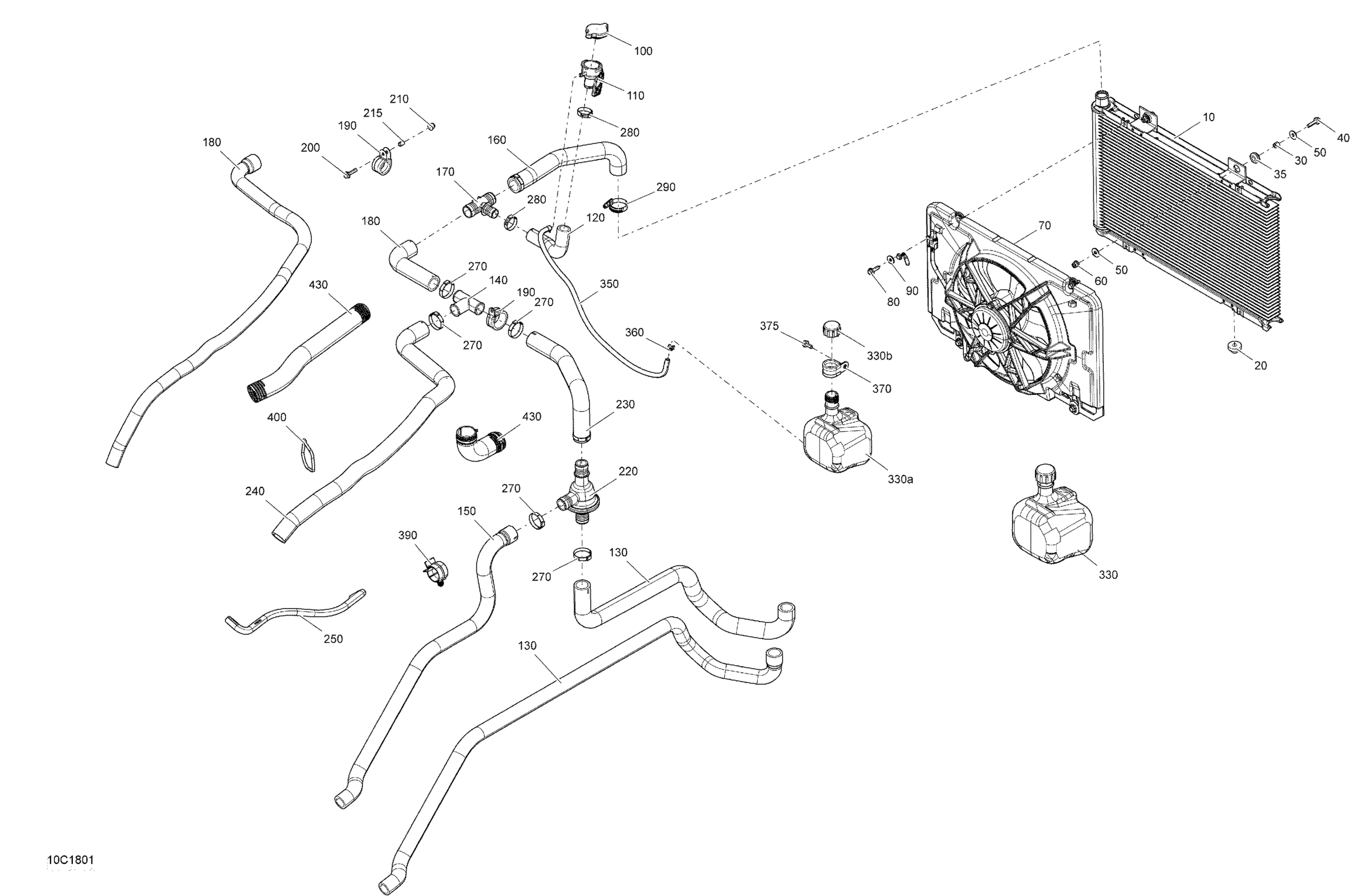

Can-Am Commander 1000R EFI, 2018 Cooling Commander - Non Max Diagram

#

Description
Price

10

Radiator

709200395

$346.24

20

Grommet

709200285

$8.13

30

Bushing

293900105

$6.07

35

Grommet

709000582

$4.25

40

Hex. Flange Screw M6 X 25

207662534

$2.00

50

Flat Washer

250200082

$0.40

60

Flange Elastic Nut M6

233261434

$4.15

70

Fan Ass'y

709200566

$251.46

80

Hex. Flange Screw M6 X 20

207662044

$1.91

90

Flat Washer 6 mm

234062410

$0.73

100

Radiator Pressure Cap

709200207

$21.61

110

Filler Neck

709200179

$17.13

120

Filler Neck Hose

709200264

$9.54

130

Radiator Inlet Hose

709200355

$60.42

130

Hose_Radiator In

709200909

$20.12

140

T-Fitting

509000219

$14.90

150

Pump Hose

709200441

$36.54

160

Radiator Outlet Hose

709200265

$10.51

170

T-Fitting

509000372

$9.03

180

Intermediate Hose

709200295

$38.78

180

Intermediate Hose

709200904

$22.36

190

Hose Retainer

293650218

$7.72

190

Hose Anchor

709200036

$10.51

200

Hex. Flange Screw M6 X 25

207662534

$2.00

210

Flange Elastic Nut M6

233261434

$4.15

215

Spacer

707000065

$6.16

220

Thermostat

709200406

$88.78

230

Hose

709200447

$22.36

240

Intermediate Hose

709200382

$26.09

250

was 709200646 Hose | Engine 800 Max Model

219704444

$12.21

270

Gear Clamp

509000162

$4.90

280

Crimp Clamp

293650099

$4.07

290

Norma Gear Clamp

293650098

$4.15

330>330b

Coolant Tank Ass'y

709200624

$91.76

330a

Coolant Tank Ass'y

709200624

$91.76

330b

Tank Cap

709200587

$5.15

350

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$114.15

360

Spring Clamp

414554800

$0.81

370

Hose Anchor

709200036

$10.51

375

Hex. Flange Screw M6 X 16

207661644

$0.70

390

Retainer

275500590

$8.24

400

Tie Wrap 368 mm

293750008

$0.97

430

Tubing 35 MM 1000MM Long

219704428

$9.84
