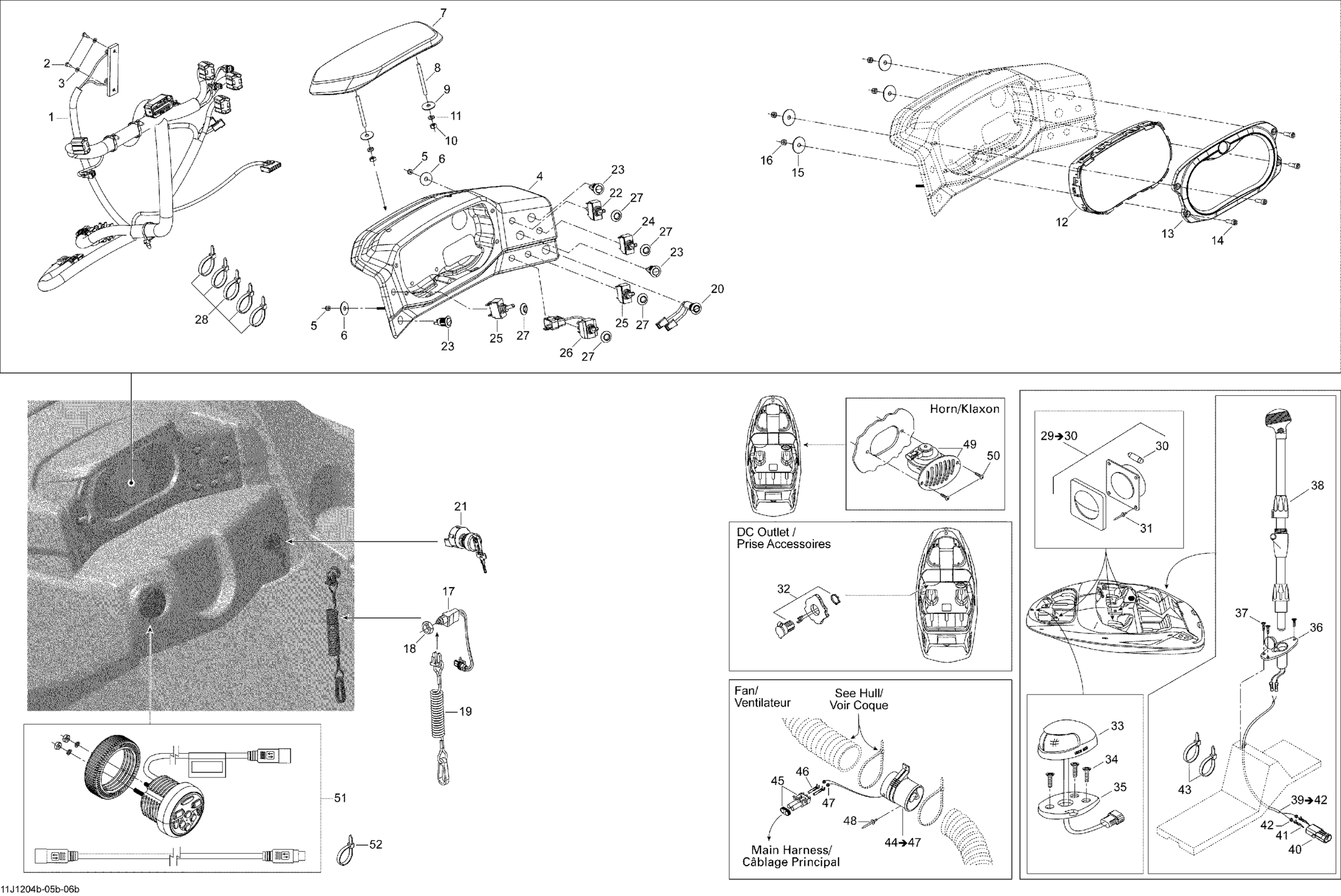

Sea-doo 180 SP 260, 2012 10- Electrical Accessories 2 Diagram
#
1
HELM HARNESS - Call your local BRP dealership
278002684
Unavailable
2
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership
209641360
Unavailable
3
Flat Washer 4 mm, Stainless
234041600
$1.15
4
FASCIA ASS'Y - Call your local BRP dealership
278002679
Unavailable
5
HEXAGONAL NUT 8-32 - Call your local BRP dealership
204100262
Unavailable
6
FLAT WASHER 9/32? - Call your local BRP dealership
204100089
Unavailable
7
FASCIA BEZEL - Call your local BRP dealership
278002682
Unavailable
8
SEAT STUD 1/4-20 X 2 1/2 - Call your local BRP dealership
204613795
Unavailable
9
FLAT WASHER 9/32? - Call your local BRP dealership
204100089
Unavailable
10
HEX. NUT 1/4 - Call your local BRP dealership
211100026
Unavailable
11
Lock Washer Helical M6
234161601
$1.15
12
INDICATOR GAUGE - Call your local BRP dealership
204471498
Unavailable
13
GAUGE BEZEL - Call your local BRP dealership This part replaces 278002664.
278002433
Unavailable
14
Socket Head Screw M6 X 20
205062060
$2.32
15
Flat Washer M6, Stainless
234062600
$0.77
16
Hex. Elastic Stop Nut M6
232561600
$1.15
17
LANYARD SWITCH - Call your local BRP dealership
278002421
Unavailable
18
FLANGED NUT - Call your local BRP dealership
278002472
Unavailable
19
SAFETY LANYARD - Call your local BRP dealership
278002450
Unavailable
20
Start Switch
278002694
Unavailable
21
Ignition Switch With Key
710002323
$86.99
22
SWITCH - Call your local BRP dealership
278002695
Unavailable
23
Switch
278002446
Unavailable
24
SWITCH - Call your local BRP dealership
278002696
Unavailable
25
SWITCH - Call your local BRP dealership
278002776
Unavailable
26
Switch
278002698
Unavailable
27
NUT SWITCH - Call your local BRP dealership
278002416
Unavailable
28
TIE-RAP 203 MM - Call your local BRP dealership
293750059
Unavailable
29
Courtesy Light Ass'y | Includes 29 to 30
204470026
$47.49
30
BULB - Call your local BRP dealership
204470081
Unavailable
31
RIVET_POP 1/8 X ,487 - Call your local BRP dealership
293150032
Unavailable
32
DC Outlet
710001248
$37.99
33
Front Lamp
204470372
Unavailable
34
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
35
FRONT LAMP SUPPORT - Call your local BRP dealership
204470072
Unavailable
36
REAR LIGHT BASE - Call your local BRP dealership
204470990
Unavailable
37
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
38
REAR LIGHT POLE - Call your local BRP dealership
204470979
Unavailable
39
REAR LIGHT HARNESS - Call your local BRP dealership | Includes 39 to 42
204470980
Unavailable
40
Female Housing, 2 Circuits
278000217
$9.59
41
Male Terminal | XT Models
278000222
$3.19
42
Wire Seal
278000218
$4.39
43
Tie Wrap 142 mm
293750002
$1.25
44
Fan Ass'y | Includes 44 to 47
204470108
$144.99
45
Male Connector, 2 Circuits
278000220
$15.49
46
Female Terminal
278000223
$3.19
47
Wire Seal
278000218
$4.39
48
Pop Rivet 3/16"
293150123
$4.29
49
HORN - Call your local BRP dealership
204470801
Unavailable
50
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
51
REMOTE CONTROL DIGITAL - Call your local BRP dealership | 180 Challenger SE
278002775
Unavailable
52
Tie Wrap 94 mm | 4X4
293750001
$1.03
