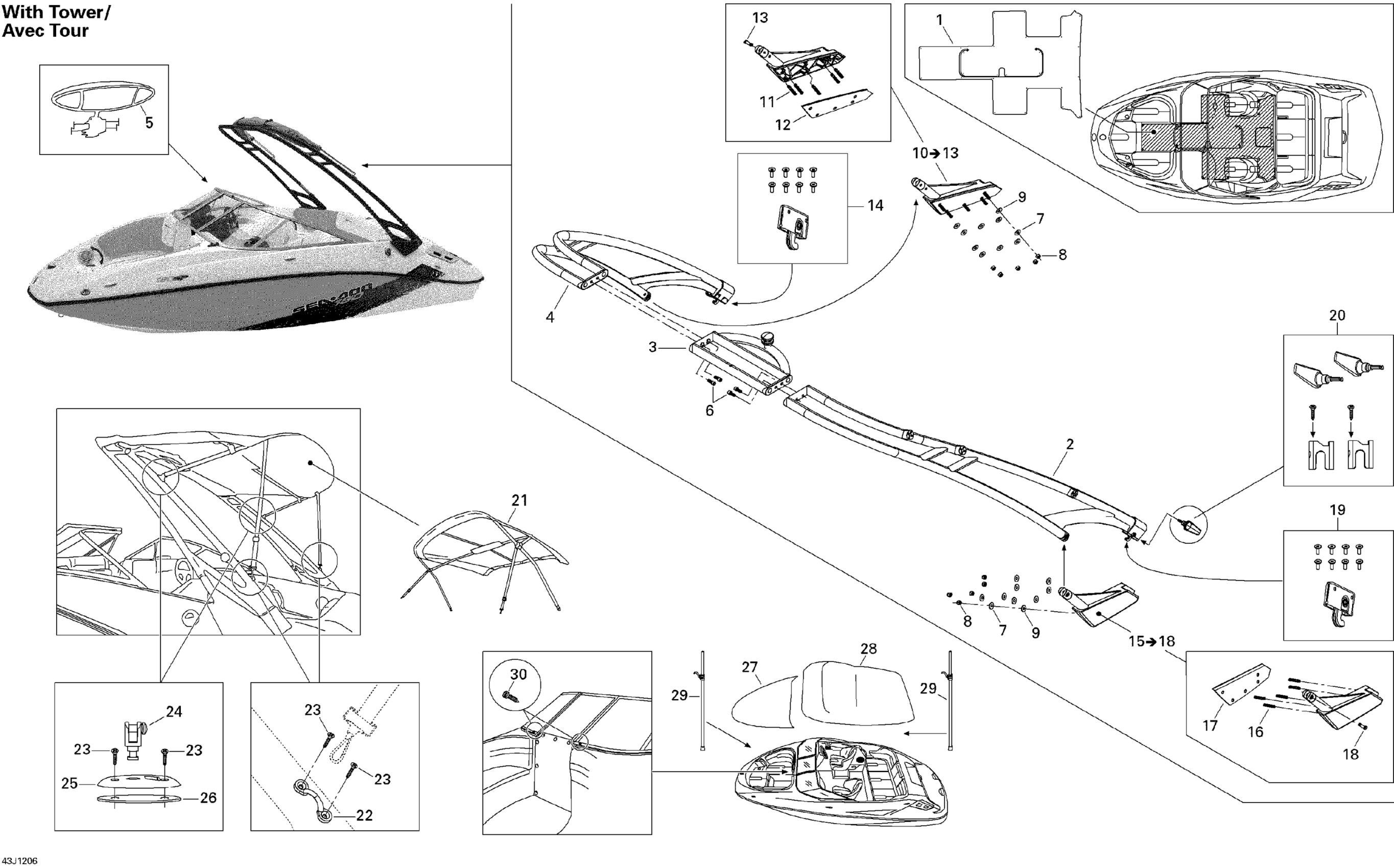

Sea-doo 180 SP 260, 2012 09- Tower And Bimini Top Diagram
#
Description
Price
1
Cockpit Carpet
269800420
Unavailable
2
LH TOWER - Call your local BRP dealership | Port Side
269800425
Unavailable
3
TOWER HEADER - Call your local BRP dealership
269800426
Unavailable
4
RH TOWER - Call your local BRP dealership | Starboard
269800427
Unavailable
5
MIRROR, 3-WAY - Call your local BRP dealership
269800364
Unavailable
6
SCREW 1/2 X 13 X 1.25 - Call your local BRP dealership
269800197
Unavailable
7
WASHER-LOCK HELICAL 1/2 - Call your local BRP dealership
204100048
Unavailable
8
HEX. NUT 1/2 X 13 - Call your local BRP dealership
269800421
Unavailable
9
TOWER MOUNT FENDER WASHER 1/2 - Call your local BRP dealership
269800344
Unavailable
10
RH TOWER SUPPORT ASS'Y - Call your local BRP dealership | Includes 10 to 13, Starboard
269800233
Unavailable
11
STUD 1/2 - Call your local BRP dealership | Starboard
269800349
Unavailable
12
TOWER MOUNT GASKET 180 - PORT - Call your local BRP dealership | Starboard This part replaces 269800346.
269800439
Unavailable
13
TOWER MOUNT PIVOT BOLT 1/2 X 13 X 1.25 - Call your local BRP dealership | Starboard
269800366
Unavailable
14
CAM LATCH KIT - Call your local BRP dealership | Starboard
204950247
Unavailable
15
LH TOWER SUPPORT ASS'Y - Call your local BRP dealership | Includes 14 to 17, Port Side
269800195
Unavailable
16
STUD 1/2 - Call your local BRP dealership | Starboard
269800349
Unavailable
17
TOWER MOUNT GASKET 180 - PORT - Call your local BRP dealership | Starboard This part replaces 269800346.
269800439
Unavailable
18
TOWER MOUNT PIVOT BOLT 1/2 X 13 X 1.25 - Call your local BRP dealership | Starboard
269800366
Unavailable
19
CAM LATCH KIT - Call your local BRP dealership | Starboard
204950247
Unavailable
20
HANDLE LATCH KIT - Call your local BRP dealership
204950246
Unavailable
21
BIMINI TOP - Call your local BRP dealership
269800196
Unavailable
22
STRAP EYE, STAINLESS - Call your local BRP dealership
269800358
Unavailable
23
SCREW 8-18 X 1 - Call your local BRP dealership
269800422
Unavailable
24
BIMINI POST - Call your local BRP dealership
204950033
Unavailable
25
BIMINI BASE - Call your local BRP dealership
204950034
Unavailable
26
BIMINI SPACER - Call your local BRP dealership
204950031
Unavailable
27
Bow Cover
269800376
Unavailable
28
COCKPIT COVER - Call your local BRP dealership
269800378
Unavailable
29
SUPPORT POLE COVER - Call your local BRP dealership
269800404
Unavailable
30
SNAP - Call your local BRP dealership
204613515
Unavailable
