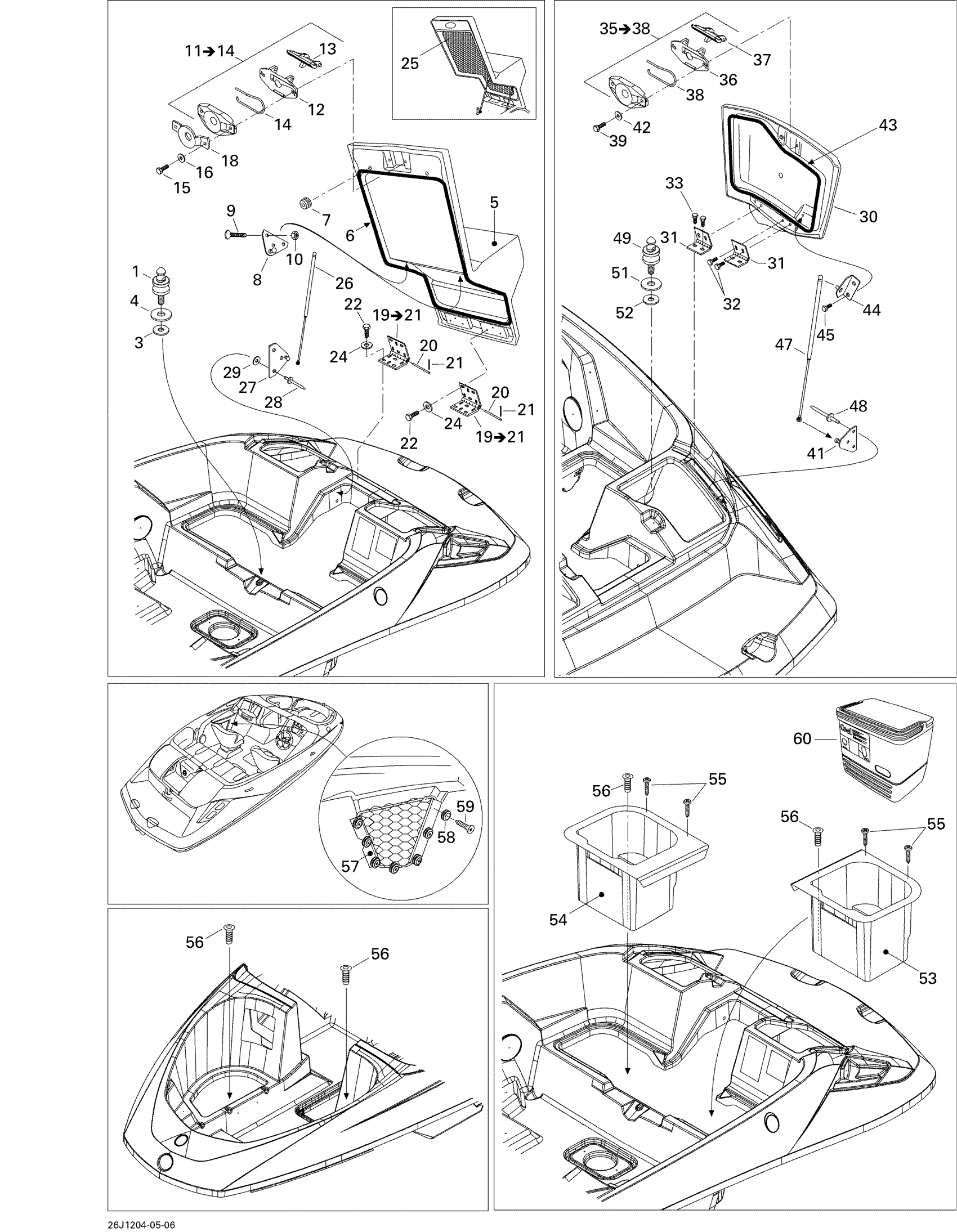

Sea-doo 180 SP 260, 2012 09- Storage Compartment Diagram
#
1
Latch Stud
204130146
$154.99
3
RUBBER WASHER - Call your local BRP dealership
291000628
Unavailable
4
Flat Washer 10 mm, Stainless
234002600
$2.22
5
ENGINE COVER - Call your local BRP dealership
204073289
Unavailable
6
Was 293200017 Neoprene Seal
219704365
$149.99
7
GROMMET - Call your local BRP dealership
293720017
Unavailable
8
SHOCK BRACKET - Call your local BRP dealership
204073065
Unavailable
9
Phillips Screw M5 X 3
208553060
Unavailable
10
Hex. Elastic Nut M5 | X
232551600
$1.15
11
Latch Ass'y | Includes 11 to 14
269700140
Unavailable
12
Latch Ass'y
269700109
$24.99
13
Latch Ass'y
269700109
$24.99
14
Latch Spring
269700017
$9.19
15
Hex. Screw M6 X 25
207162560
$1.47
16
Stainless Flat Washer M6
234061600
$0.33
18
LATCH PROTECTOR - Call your local BRP dealership
204070952
Unavailable
19
HINGE ASS'Y - Call your local BRP dealership | Includes 19 to 21
204070127
Unavailable
20
HINGE ROD - Call your local BRP dealership
204070204
Unavailable
21
Cotter Pin M2.5 X 12
204070205
Unavailable
22
Hex. Screw M6 X 25
207162560
$1.47
24
Stainless Flat Washer M6
234061600
$0.33
25
FOAM - ACOUSTIC - Call your local BRP dealership This part replaces 204073316.
291003867
Unavailable
26
GAS SHOCK - Call your local BRP dealership
204071959
Unavailable
27
SHOCK BRACKET - Call your local BRP dealership
204073065
Unavailable
28
RIVET_POP 3/16 - Call your local BRP dealership This part replaces 204130014.
293150201
Unavailable
29
Flat Washer M5, Stainless
234051600
$0.77
30
REAR STORAGE LID, PORT SIDE - Call your local BRP dealership | Port Side
204073780
Unavailable
30
REAR STORAGE LID, STARBOARD - Call your local BRP dealership | Starboard
204073781
Unavailable
31
SUNDECK HINGE - Call your local BRP dealership
204612769
Unavailable
32
Hex. Cap Screw M6 X 12
207161260
$1.26
33
Hex. Screw M6 X 16
207161660
$1.59
35
Latch Ass'y | Includes 11 to 14
269700140
Unavailable
36
Latch Ass'y
269700109
$24.99
37
Latch Ass'y
269700109
$24.99
38
Latch Spring
269700017
$9.19
39
Hex. Screw M6 X 25
207162560
$1.47
41
LH SHOCK BRACKET - Call your local BRP dealership | Port Side
204072220
Unavailable
41
RH SHOCK BRACKET - Call your local BRP dealership
204072219
Unavailable
42
Stainless Flat Washer M6
234061600
$0.33
43
Seal Tray 1000Mm Long
219704368
$13.99
44
Shock Bracket
204073074
$27.99
45
HEX. SCREW M5 X 16 - Call your local BRP dealership
207151660
Unavailable
47
GAS SHOCK - Call your local BRP dealership
204072218
Unavailable
48
Pop Rivet 3/16"
293150043
$2.09
49
Latch Stud
204130146
$154.99
51
Flat Washer 10 mm, Stainless
234002600
$2.22
52
RUBBER WASHER - Call your local BRP dealership
291000628
Unavailable
53
REAR STORAGE BOX, PORT SIDE - Call your local BRP dealership | Port Side
204073775
Unavailable
54
REAR STORAGE BOX, STARBOARD - Call your local BRP dealership | Starboard
204073817
Unavailable
55
PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership
204100049
Unavailable
56
DRAIN FITTING - Call your local BRP dealership
204071783
Unavailable
57
STORAGE NET - Call your local BRP dealership
291003522
Unavailable
58
Attachment Knob
204073221
$8.19
59
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
60
16-QT COOLER - Call your local BRP dealership
291003362
Unavailable
