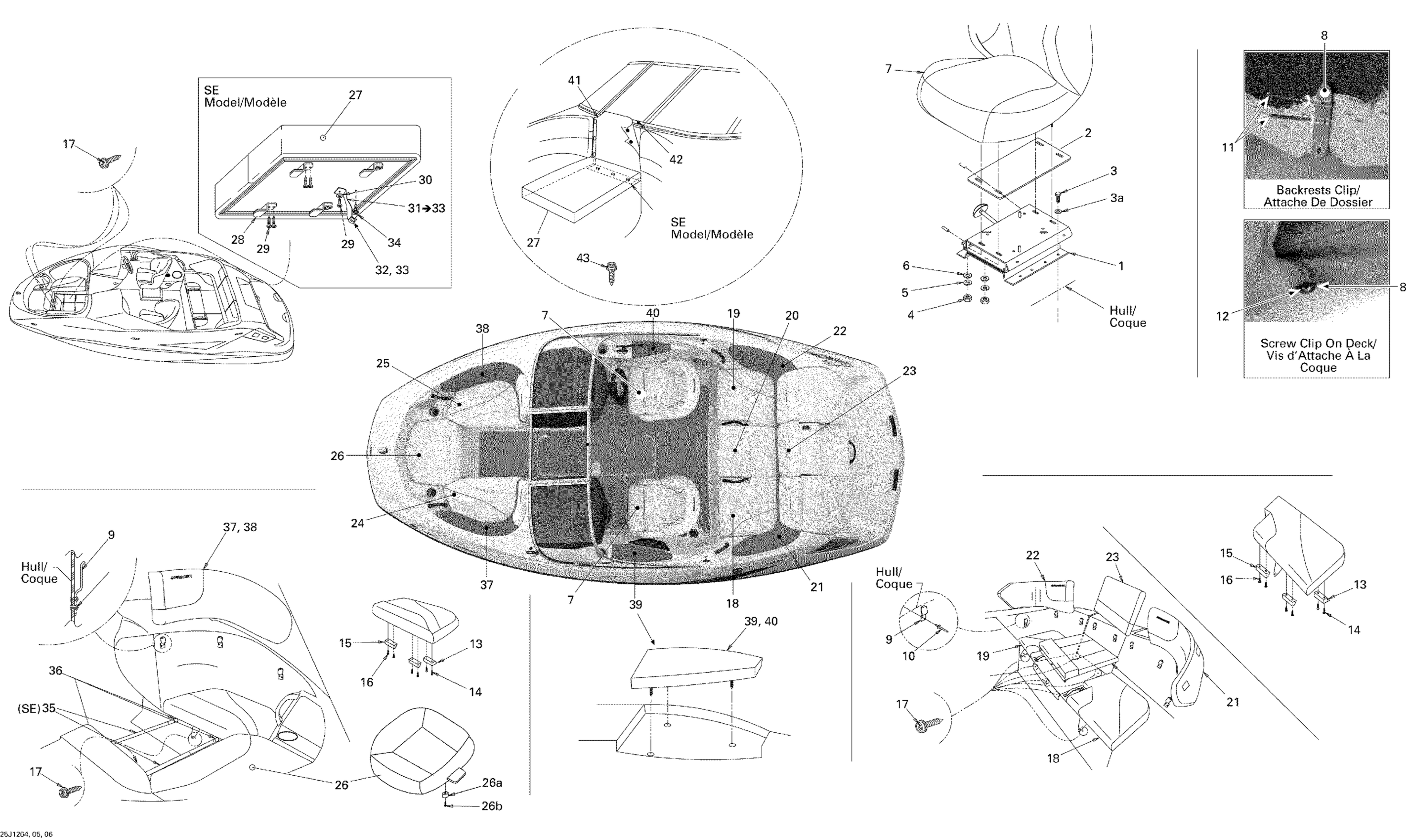

Sea-doo 180 SP 260, 2012 09- Seat Diagram
#
1
SEAT BASE, STARBOARD - Call your local BRP dealership
204614718
Unavailable
2
SEAT BASE, PORT SIDE - Call your local BRP dealership
204614717
Unavailable
3
Hex. Screw M6 X 35
207163560
$1.49
3a
Flat Washer M6, Stainless
234062600
$0.77
4
HEX. NUT 1/4 - Call your local BRP dealership
211100026
Unavailable
5
Lock Washer 1/4”
211200025
$1.29
6
Flat Washer M6, Stainless
234062600
$0.77
7
Bucket Seat Ass'y
269002230
Unavailable
8
SEAT SUPPORT - Call your local BRP dealership
269001696
Unavailable
9
SEAT SUPPORT - Call your local BRP dealership
269001695
Unavailable
10
Pop Rivet 3/16"
293150043
$2.09
11
RIVET_POP 5/32 - Call your local BRP dealership
293150029
Unavailable
12
Phillips Screw #8 X 1/2”
204100030
Unavailable
13
SEAT LATCH - Call your local BRP dealership
204611940
Unavailable
14
SCREW 1/4?-20 X 2? - Call your local BRP dealership
204100039
Unavailable
15
LATCH - Call your local BRP dealership
204611805
Unavailable
16
SCREW #8 X 1-1/4? - Call your local BRP dealership
204100081
Unavailable
17
SCREW-STUD TAPP. 3/8 SS - Call your local BRP dealership
202000159
Unavailable
18
REAR CUSHION ASS'Y, PORT SIDE - Call your local BRP dealership
269002547
Unavailable
19
REAR CUSHION ASS'Y, STARBOARD SIDE - Call your local BRP dealership
269002548
Unavailable
20
REAR CUSHION ASS'Y, CENTER - Call your local BRP dealership
269002549
Unavailable
21
REAR BACKREST ASS'Y, PORT SIDE - Call your local BRP dealership
269002234
Unavailable
22
REAR BACKREST ASS'Y, STARBOARD SIDE - Call your local BRP dealership
269002235
Unavailable
23
REAR BACKREST ASS'Y, CENTER - Call your local BRP dealership
269002236
Unavailable
24
FRONT CUSHION ASS'Y, PORT SIDE - Call your local BRP dealership
269002550
Unavailable
25
FRONT CUSHION ASS'Y, STARBOARD SIDE - Call your local BRP dealership
269002551
Unavailable
26
FRONT CUSHION ASS'Y, CENTER - Call your local BRP dealership
269002552
Unavailable
26a
Rubber Stopper
293830043
Unavailable
26b
Phillips Tapping Screw
204100058
$0.66
27
FILLER BOW CUSHION ASS'Y - Call your local BRP dealership
269002553
Unavailable
28
BRACKET - Call your local BRP dealership | Except STD
204613161
Unavailable
29
SCREW-PAN HD.#10 X 5/8 SS - Call your local BRP dealership
204100073
Unavailable
30
FLAT WASHER #10 - Call your local BRP dealership | Except STD
204100059
Unavailable
31
RETAINING STRAP - Call your local BRP dealership
269002384
Unavailable
32
Not Available As Spare Parts
XXX
Unavailable
33
Not Available As Spare Parts
XXX
Unavailable
34
SCREW-STUD TAPP. 3/8 SS - Call your local BRP dealership
202000159
Unavailable
35
TUBE, STAINLESS - Call your local BRP dealership | Except STD
204613164
Unavailable
36
TUBE CAP - Call your local BRP dealership | Except STD
204613165
Unavailable
37
BACKREST ASS'Y, BOW PORT SIDE - Call your local BRP dealership
269002241
Unavailable
38
BACKREST ASS'Y, BOW STARBOARD SIDE - Call your local BRP dealership
269002242
Unavailable
39
ARMREST CUSHION ASS'Y, PORT SIDE - Call your local BRP dealership
269002243
Unavailable
40
ARMREST CUSHION ASS'Y, STARBOARD - Call your local BRP dealership
269002245
Unavailable
41
Walk-Thru Curtain
269002247
Unavailable
42
SNAP - Call your local BRP dealership
204613515
Unavailable
43
SCREW-STUD TAPP. 3/8 SS - Call your local BRP dealership
202000159
Unavailable
