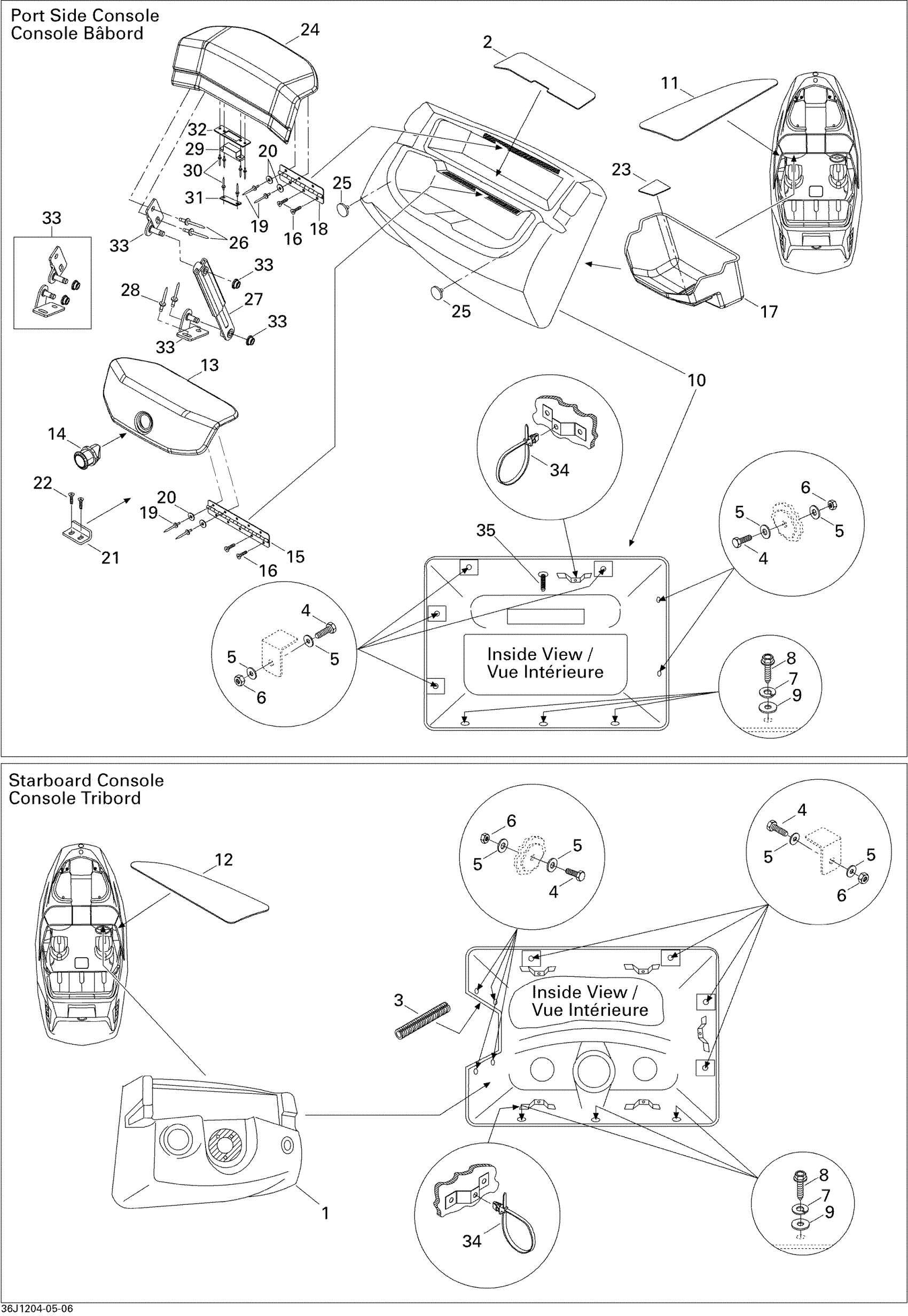

Sea-doo 180 SP 260, 2012 09- Front Console And Glove Box Diagram
#
Description
Price
1
Console Ass'y, Starboard
291003706
Unavailable
2
GLOVE BOX CARPET - Call your local BRP dealership
291003217
Unavailable
3
SLIT CONDUIT, METER - Call your local BRP dealership
204550028
Unavailable
4
Hex. Screw M6 X 35
207163560
$1.49
5
Flat Washer M6, Stainless
234062600
$0.77
6
Hex. Elastic Stop Nut M6
232561600
$1.15
7
Lock Washer 1/4”
211200025
$1.29
8
Hex. Screw M6 X 30
207163060
$1.48
9
Flat Washer M6, Stainless
234062600
$0.77
10
CONSOLE ASS'Y, PORT SIDE - Call your local BRP dealership
291003107
Unavailable
11
DASH CARPET, PORT SIDE - Call your local BRP dealership
291003249
Unavailable
12
DASH CARPET, STARBOARD - Call your local BRP dealership
291003250
Unavailable
13
GLOVE BOX DOOR - Call your local BRP dealership
291003106
Unavailable
14
LATCH - Call your local BRP dealership
204073210
Unavailable
15
HINGE - Call your local BRP dealership
291003268
Unavailable
16
SCREW 8 X 3/4? - Call your local BRP dealership
204100054
Unavailable
17
GLOVE BOX STORAGE - Call your local BRP dealership
291003131
Unavailable
18
HINGE - Call your local BRP dealership
291003208
Unavailable
19
Pop Rivet 3/16"
293150088
$0.99
20
Flat Washer M5, Stainless
234051600
$0.77
21
KEEPER - Call your local BRP dealership
204072476
Unavailable
22
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership
209641360
Unavailable
23
STORAGE PAD - Call your local BRP dealership
291003257
Unavailable
24
Radio Access Door
291003105
Unavailable
25
BUMPER - Call your local BRP dealership
204070940
Unavailable
26
RIVET_POP 5/32 - Call your local BRP dealership
293150029
Unavailable
27
ACCESS DOOR STAY - Call your local BRP dealership
291003255
Unavailable
28
RIVET_POP 5/32 - Call your local BRP dealership
293150029
Unavailable
29
MAGNETIC CATCH - Call your local BRP dealership
204072907
Unavailable
30
Pop RIvet 1/8 X ,375
293150285
$0.33
31
LATCH BRACKET - Call your local BRP dealership
204072908
Unavailable
32
LATCH SPACER - Call your local BRP dealership
204073168
Unavailable
33
MOUNTING BRACKET KIT - Call your local BRP dealership
291003256
Unavailable
34
TIE RAP WITH DART - Call your local BRP dealership
204130098
Unavailable
35
Elevator Bolt
204000130
Unavailable
