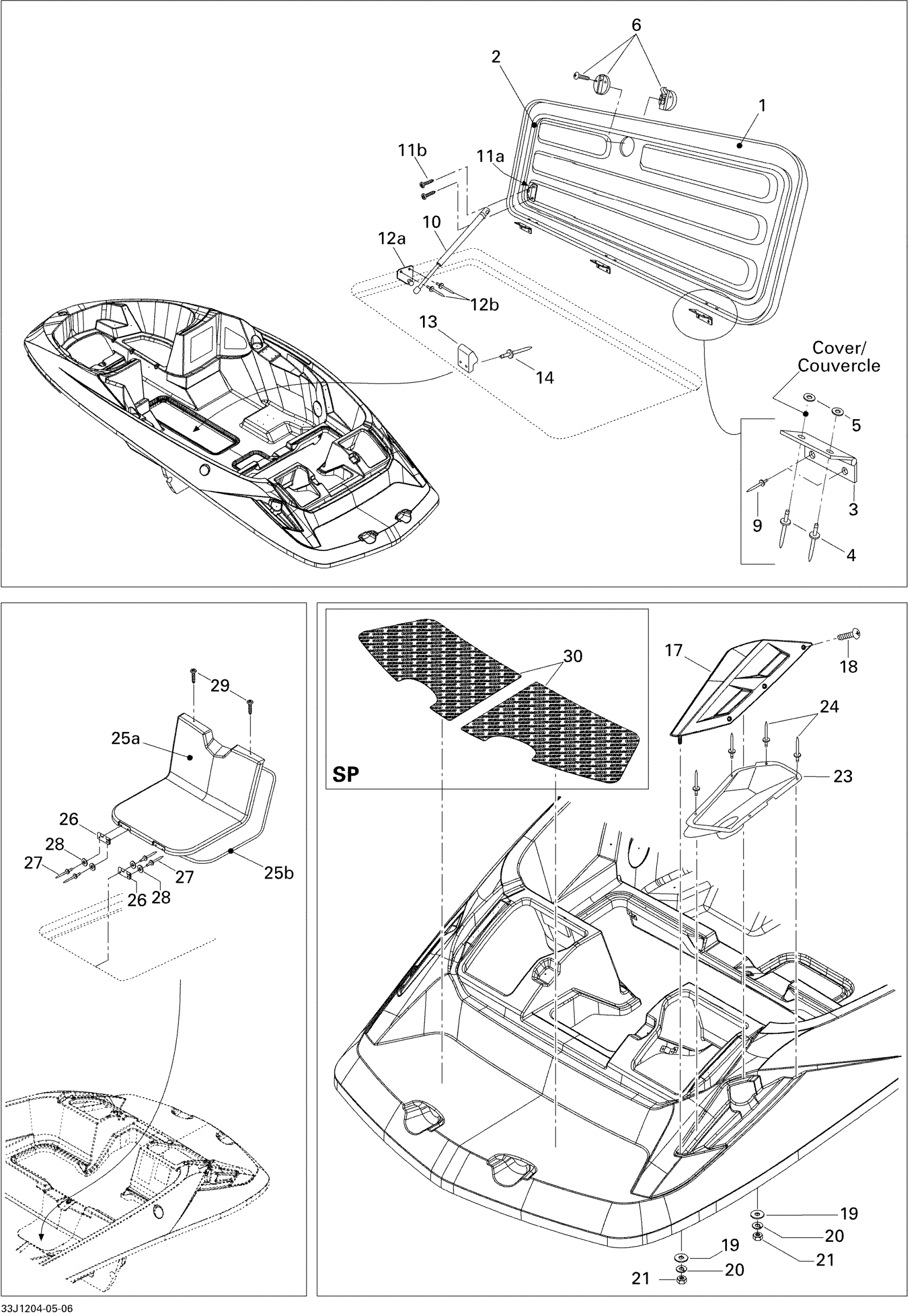

Sea-doo 180 SP 260, 2012 09- Central Cover And Accessories Diagram
#
Description
Price
1
CENTER COVER - Call your local BRP dealership
291003483
Unavailable
2
TRAY SEAL, METER - Call your local BRP dealership
293200032
Unavailable
3
HINGE - Call your local BRP dealership
204072601
Unavailable
4
Avdel Rivet 3/16"
293150037
$0.56
5
Flat Washer M5, Stainless
234051600
$0.77
6
LATCH ASS'Y - Call your local BRP dealership
204073347
Unavailable
9
Pop Rivet 3/16"
293150088
$0.99
10
GAS SHOCK - Call your local BRP dealership
204072218
Unavailable
11a
Shock Bracket
204073074
$27.99
11b
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership
209641360
Unavailable
12a
RH SHOCK BRACKET - Call your local BRP dealership
204072219
Unavailable
12b
Pop Rivet 3/16"
293150043
$2.09
13
LATCH BRACKET - Call your local BRP dealership
204070050
Unavailable
14
RIVET_POP 5/32 - Call your local BRP dealership
293150029
Unavailable
17
VENT COVER ASS'Y, PORT SIDE - Call your local BRP dealership | Port Side
204072292
Unavailable
17
VENT COVER ASS'Y, STARBOARD - Call your local BRP dealership | Starboard
204072293
Unavailable
18
PHILLIPS SCREW 1 - Call your local BRP dealership
204100154
Unavailable
19
FLAT WASHER - Call your local BRP dealership
211200019
Unavailable
20
Lock Washer 1/4”
211200025
$1.29
21
HEX. NUT 1/4 - Call your local BRP dealership
211100026
Unavailable
23
VENT INLET, PORT SIDE - Call your local BRP dealership | Port Side
291003407
Unavailable
23
VENT - INLET / STBD - Call your local BRP dealership | Starboard This part replaces 204072231.
204073836
Unavailable
24
RIVET_POP 1/8 X ,750 - Call your local BRP dealership
293150036
Unavailable
25a
ACCESS DOOR - Call your local BRP dealership
291003595
Unavailable
25b
TRAY SEAL, METER - Call your local BRP dealership
293200032
Unavailable
26
HINGE - Call your local BRP dealership
204072601
Unavailable
27
Avdel Rivet 3/16"
293150037
$0.56
28
Flat Washer M5, Stainless
234051600
$0.77
29
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
30
PLATFORM CARPET KIT - Call your local BRP dealership | SP
295100547
Unavailable
