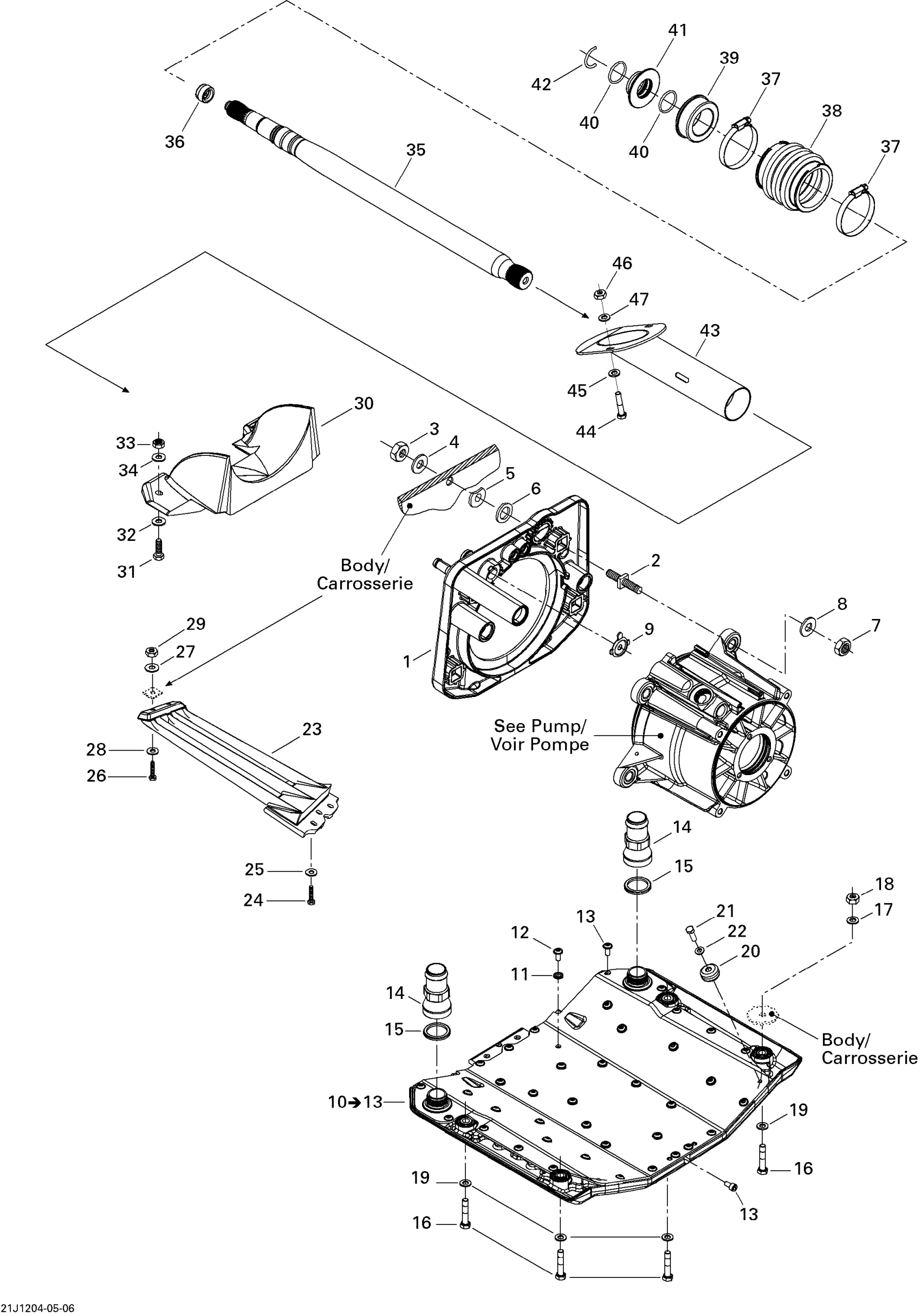

Sea-doo 180 SP 260, 2012 05- Propulsion Diagram
#
1
Pump Support
271001805
Unavailable
2
Square Stud
250300022
$20.99
3
Elastic Stop Nut M10, Brass
232501200
$2.64
4
Flat Washer 10 mm, Stainless
234002600
$2.22
5
Shim 0.3 mm
272000053
$11.49
6
NEEDS DESCRIPTION This part replaces 204120067.
0460011
$10.49
7
Elastic Stop Nut M10, Brass
232501200
$2.64
8
Flat Washer
211200051
$1.68
9
Reducer, Green This part replaces 271001586.
271002029
$16.49
10
RIDING PLATE - Call your local BRP dealership | Includes 10 to 13
204120367
Unavailable
11
Sealing Washer
250200114
$4.44
12
Torx Screw M6 X 14
250000384
$7.51
13
Socket Drain Plug M6 X 12
250500005
$16.49
14
Straight Plastic Fitting
293710111
$8.47
15
O-Ring
293300121
$8.32
16
Hex. Screw M8 X 40
207084060
$2.22
17
Flat Washer 8 mm, Stainless
234082600
$2.43
18
Hex. Elastic Nut M8
232581600
$1.48
19
Stainless, Flat Washer 8 mm
234081600
$0.55
20
Anode Zinc
271001813
$18.99
21
Hex. Screw M6 X 20, Scotch Grip
207362060
$1.47
22
Stainless Flat Washer M6
234061600
$0.33
23
PUMP GRATE - Call your local BRP dealership
204120375
Unavailable
24
Hex. Screw M6 X 16
207161660
$1.59
25
Stainless Flat Washer M6
234061600
$0.33
26
Hex. Screw M8 X 40
207184060
$2.22
27
Stainless, Flat Washer 8 mm
234081600
$0.55
28
Stainless, Flat Washer 8 mm
234081600
$0.55
29
Hex. Elastic Nut M8
232581600
$1.48
30
INLET RAMP - Call your local BRP dealership
204120370
Unavailable
31
Hex. Screw M8 X 40
207084060
$2.22
32
Stainless, Flat Washer 8 mm
234081600
$0.55
33
Hex. Elastic Nut M8
232581600
$1.48
34
Flat Washer 8 mm, Stainless
234082600
$2.43
35
Drive Shaft
271001550
$402.49
36
Drive Shaft Plug
272000173
$8.68
37
Norma Clamp
293650079
$11.60
38
Bellow This part replaces 271001422.
271001933
$23.49
39
CARBON RING - Call your local BRP dealership | Not Available. Ref Bulletin 2019-4
271001420
Unavailable
40
O-Ring
293300107
$1.01
41
Carbon Ring Kit | Includes 280b to 280b4
295501204
$82.49
42
C-Clip
271001577
$3.27
43
SHAFT GUARD ASSY - Call your local BRP dealership This part replaces 271001716.
271001836
Unavailable
44
Phillips Screw M5 X 35
208653560
$2.22
45
Flat Washer M5, Stainless
234051600
$0.77
46
Hex. Elastic Nut M5 | X
232551600
$1.15
47
Flat Washer 5 mm, Stainless
234052600
$0.77
