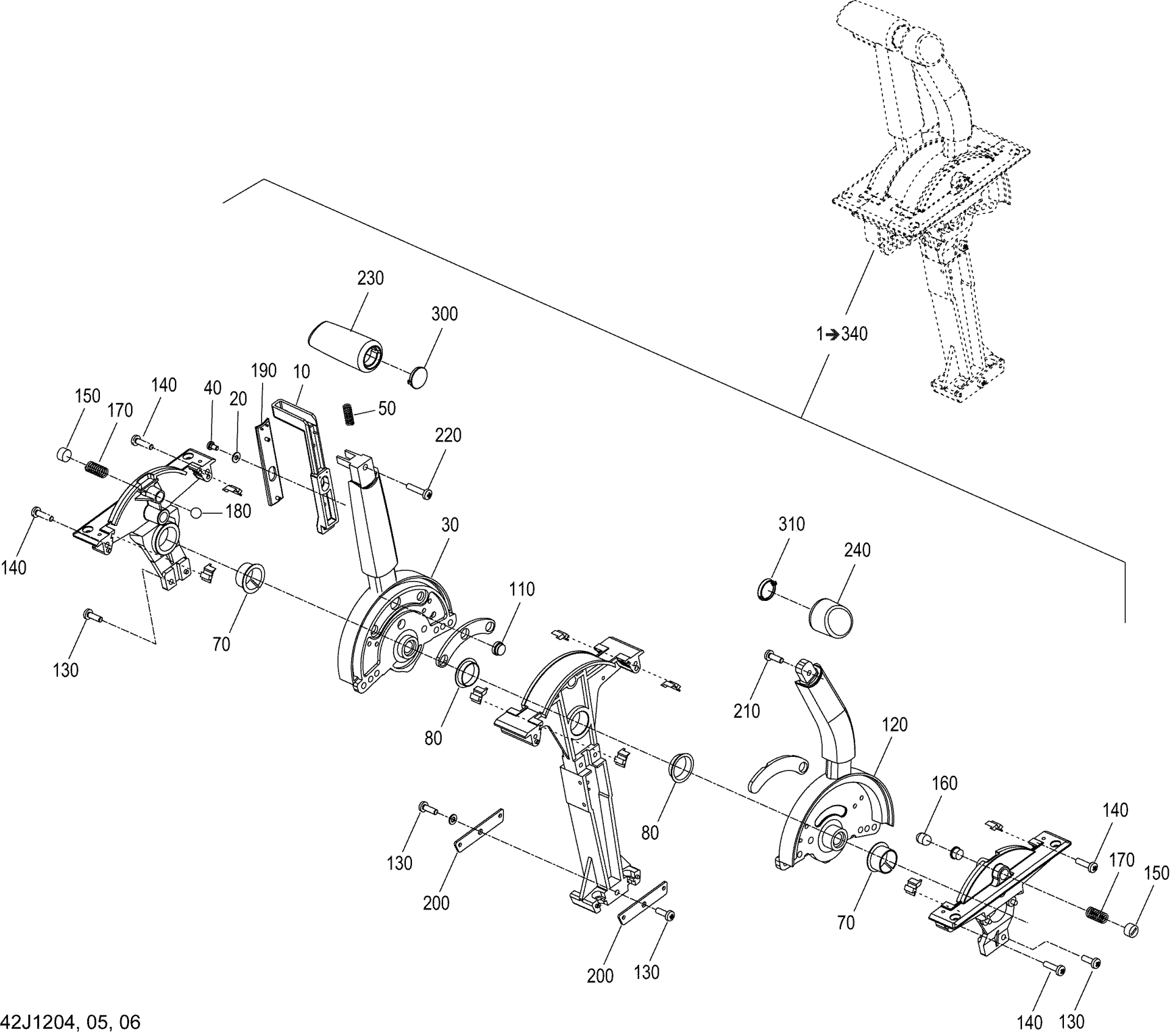

Sea-doo 180 SP 260, 2012 05- Control Handle Diagram
#
Description
Price
1
CONTROL-UFLEX - Call your local BRP dealership | Includes 1 to 340
277001859
Unavailable
10
LOCK - Call your local BRP dealership
277001825
Unavailable
20
WASHER - Call your local BRP dealership
277001829
Unavailable
30
MOLDED LEVER - Call your local BRP dealership
277001823
Unavailable
40
SCREW M4 X 8 - Call your local BRP dealership
277001828
Unavailable
50
SPRING - Call your local BRP dealership
277001830
Unavailable
70
BUSHING - Call your local BRP dealership
277000398
Unavailable
80
BUSHING - Call your local BRP dealership
277000397
Unavailable
90
BALL BASE - Call your local BRP dealership | Not Shown
277001831
Unavailable
110
BLOCKING PIVOT - Call your local BRP dealership
277000404
Unavailable
120
THROTTLE LEVER - Call your local BRP dealership
204390626
Unavailable
130
HEX. SCREW M5 X 16 - Call your local BRP dealership
207151660
Unavailable
140
SCREW M5 X 20 - Call your local BRP dealership
204100016
Unavailable
150
CAP SCREW - Call your local BRP dealership
277000402
Unavailable
160
FRICTION INSERT - Call your local BRP dealership
277000403
Unavailable
170
DETENT SPRING - Call your local BRP dealership
277001832
Unavailable
180
BALL - Call your local BRP dealership
277000399
Unavailable
190
LOCK COVER - Call your local BRP dealership
277001826
Unavailable
200
RETAINING PLATE - Call your local BRP dealership
204390227
Unavailable
210
Screw M5 X 14
204390623
Unavailable
220
SCREW M5 X 25 - Call your local BRP dealership
204390634
Unavailable
230
Not Available As Spare Part - Friction Washer
Unavailable
240
Not Available As Spare Part - Friction Washer
Unavailable
250
SCREW M3X6 - Call your local BRP dealership | Not Shown
277001847
Unavailable
260
NEUTRAL SWITCH ASS'Y - Call your local BRP dealership | Not Shown
277001851
Unavailable
300
BLACK KNOB CAP - Call your local BRP dealership
204390631
Unavailable
310
RED KNOB CAP - Call your local BRP dealership
204390630
Unavailable
340
CLEVIS L26 - Call your local BRP dealership | Not Shown
204390226
Unavailable
