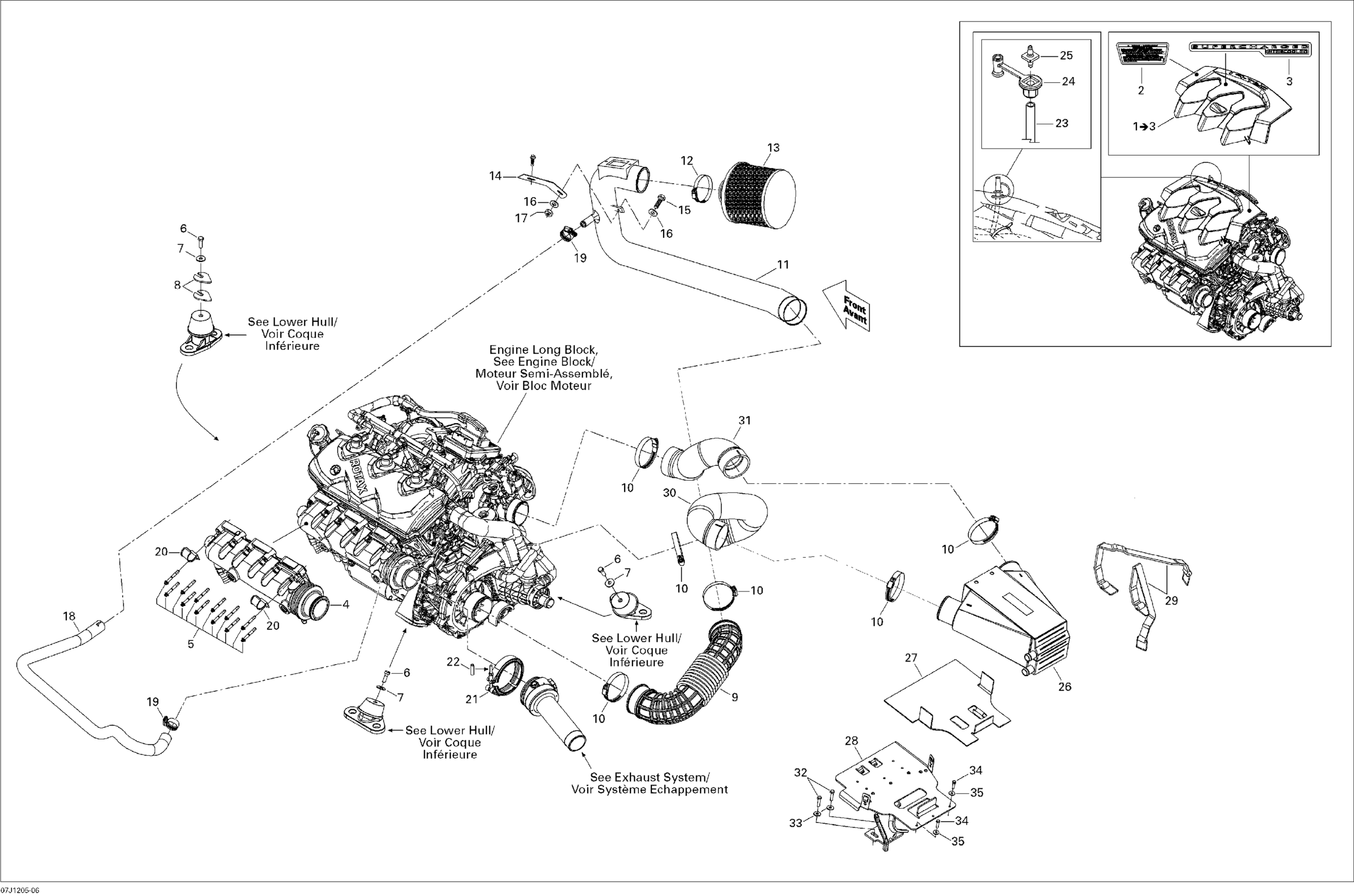

Sea-doo 180 SP 260, 2012 01- Engine And Air Intake Silencer Diagram
#
Description
Price
1
ENGINE COVER ASS'Y - Call your local BRP dealership | Includes 1 to 3
270000727
Unavailable
2
WARNING DECAL, ENGINE OIL LEVEL - Call your local BRP dealership
219902674
Unavailable
3
IDENTIFICATION DECAL, MOTOR SCIC - Call your local BRP dealership
219902676
Unavailable
4
Engine Exhaust Manifold 0990732-00 - 150 This part replaces 420673294.
296000422
$839.99
5
Torx Flange Screw M6 X 45
420641198
$4.12
6
HEX. SCREW M8 X 25 - Call your local BRP dealership
207182560
Unavailable
7
Flat Washer 8 mm, Stainless
234082600
$2.43
8
SHIM 1.3 MM - Call your local BRP dealership
270000025
Unavailable
9
INTAKE HOSE - Call your local BRP dealership | Without Catalyst
273000188
Unavailable
10
Tridon Clamp
293650179
$11.49
11
AIR INTAKE TUBE - Call your local BRP dealership | Without Catalyst
204250437
Unavailable
12
Tridon Clamp
293650179
$11.49
13
Air Filter This part replaces 204250436.
204250466
$137.99
14
BRACKET - Call your local BRP dealership | Without Catalyst
204250404
Unavailable
15
Hex. Screw M6 X 30
207163060
$1.48
16
Flat Washer, Stainless/Neoprene
211200055
$0.73
17
Hex. Elastic Stop Nut M6
232561600
$1.15
18
FORMED HOSE - Call your local BRP dealership
270000808
Unavailable
19
Tridon Gear Clamp
293650051
$4.19
20
Retainer
275500664
$14.75
21
Exhaust Clamp
274001417
$58.99
22
Polyurethane Hose 10000Mm Long
219704410
$56.99
23
HOSE 3 MM - Call your local BRP dealership
270000469
Unavailable
24
GROMMET CAP - Call your local BRP dealership
293830120
Unavailable
25
CONNECTOR - Call your local BRP dealership
293710107
$1.09
26
Intercooler
296000379
Unavailable
27
RUBBER PAD - Call your local BRP dealership
293830124
Unavailable
28
COOLER SUPPORT - Call your local BRP dealership
270000752
Unavailable
29
Fuel Tank Strap
293850093
$21.99
30
Intercooler Hose Inlet
204250474
Unavailable
31
INTERCOOLER HOSE, OUTLET - Call your local BRP dealership
204250442
Unavailable
32
Hex. Screw M6 X 25
207162560
$1.47
33
Flat Washer M6, Stainless
234062600
$0.77
34
Hex. Screw M5 X 20
207152060
$1.47
35
Flat Washer 5 mm, Stainless
234052600
$0.77
