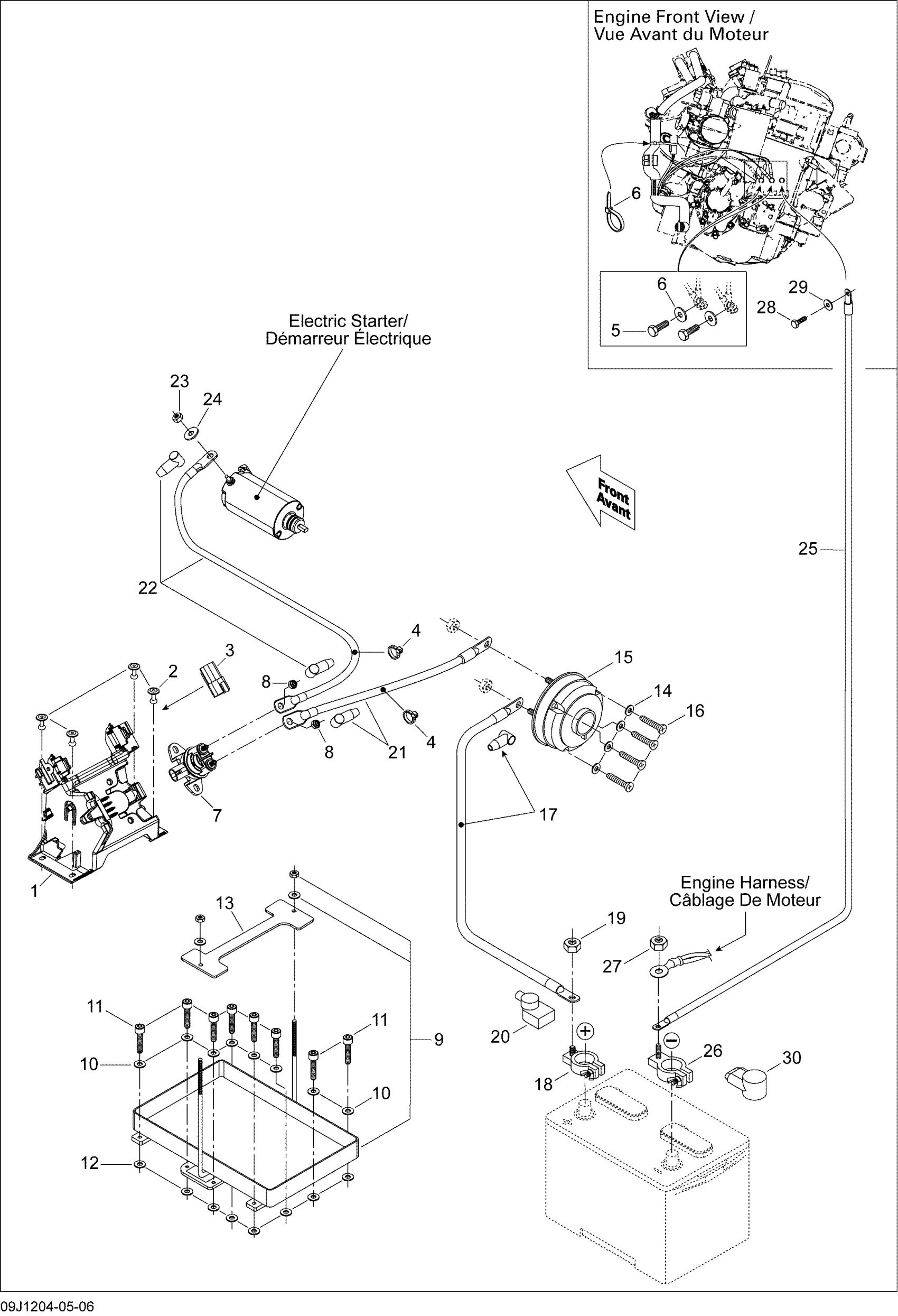

Sea-doo 180 Challenger SE 260, 2012 Electrical System Diagram

#

Description
Price

1

MODULE SUPPORT - Call your local BRP dealership

278002699

Unavailable

2

Pop Rivet 3/16"

293150123

$4.29

3

Diagnostic Connector

278002704

$19.49

4

Tie-Rap 180 mm

414115200

$0.11

5

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

6

Stainless Flat Washer M6

234061600

$0.33

7

Starter Relay

278003012

$42.49

8

Hex. Elastic Stop Nut M6

232561600

$1.15

9

BATTERY SUPPORT - Call your local BRP dealership

204471008

Unavailable

10

FLAT WASHER - Call your local BRP dealership

204100069

Unavailable

11

Socket Head Screw M6 X 25

205062560

$1.69

12

FLAT WASHER, PLASTIC - Call your local BRP dealership

211200029

Unavailable

13

TOP BATTERY SUPPORT - Call your local BRP dealership

204471290

Unavailable

14

Flat Washer M5, Stainless

234051600

$0.77

15

BATTERY SWITCH - Call your local BRP dealership

204470814

Unavailable

16

PHILLIPS HEAD SCREW M4.8 X 38 - Call your local BRP dealership

250000089

Unavailable

17

POSITIVE SWITCH CABLE - Call your local BRP dealership

204470250

Unavailable

18

POSITIVE BATTERY POLE - Call your local BRP dealership

204470349

Unavailable

19

HEX. NUT 3/8-16 - Call your local BRP dealership

211100063

Unavailable

20

RED BOOT - Call your local BRP dealership

204470269

Unavailable

21

RED CABLE - Call your local BRP dealership

204470799

Unavailable

22

RED CABLE - Call your local BRP dealership

204470798

Unavailable

23

Hex. Elastic Stop Nut M6

232561600

$1.15

24

Stainless Flat Washer M6

234061600

$0.33

25

RH GROUND CABLE - Call your local BRP dealership

204470199

Unavailable

26

NEGATIVE BATTERY POLE - Call your local BRP dealership

204470348

Unavailable

27

HEX. NUT 5/16?-18 - Call your local BRP dealership

204100052

Unavailable

28

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

29

Flat Washer M6, Stainless

234062600

$0.77

30

BOOT-BLACK - Call your local BRP dealership

278002575

Unavailable
