- 180 Challenger SE 260, 2012
10- Electrical Accessories 1

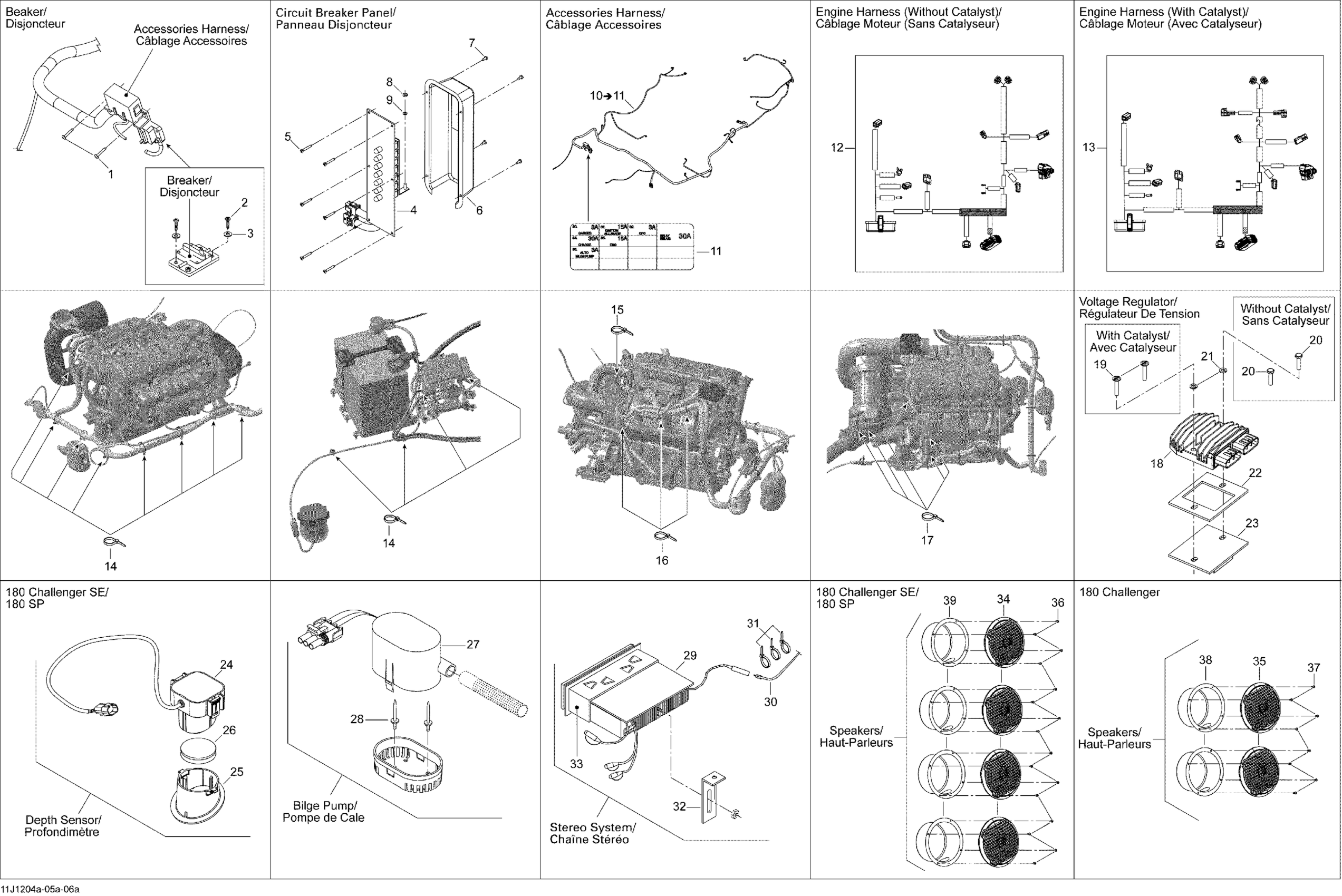

Sea-doo 180 Challenger SE 260, 2012 10- Electrical Accessories 1 Diagram
#
1
PHILLIPS TAPPING SCREW #10 X 1-1/4 - Call your local BRP dealership
204100164
Unavailable
2
PHILLIPS TAPPING SCREW M4.2 X 19 - Call your local BRP dealership
209641960
Unavailable
3
Flat Washer 4 mm, Stainless
234041600
$1.15
4
CIRCUIT BREAKER PANEL - Call your local BRP dealership
278002685
Unavailable
5
TAPPING SCREW M4.2 X 19 - Call your local BRP dealership
250000090
Unavailable
6
Circuit Breaker Panel Cover
204471375
Unavailable
7
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership
209641360
Unavailable
8
Hex. Nut
212100005
$1.35
9
Helical Lock Washer M5
234151601
$1.15
10
ACCESSORIES HARNESS - Call your local BRP dealership | Includes 10 to 11
278002683
Unavailable
11
Decal Fuse
278002734
Unavailable
12
Engine Harness | Without Catalyst
278002662
Unavailable
13
Not Available As Spare Parts
XXX
Unavailable
14
Tie-Rap 180 mm
414115200
$0.11
15
Tie Wrap 142 mm
293750002
$1.25
16
Tie-Rap 206 mm
293750027
$2.89
17
Not Available As Spare Parts
XXX
Unavailable
18
Voltage Regulator | For replacement, refer to service bulletin 2005-5
710001103
$142.99
19
Not Available As Spare Parts
XXX
Unavailable
20
HEX. SCREW 1/4-20 X 1 - Call your local BRP dealership | Without Catalyst
204100226
Unavailable
21
Lock Washer 1/4”
211200025
$1.29
22
SEAL - Call your local BRP dealership
204471293
Unavailable
23
RECTIFIER HEAT SINK - Call your local BRP dealership
204471296
Unavailable
24
Depth Sensor
278002954
$373.99
25
Depth Sensor Base
278001994
$27.99
26
Gel Pad
293550042
$21.99
27
Bilge Pump
204471431
Unavailable
28
RIVET_POP 5/32 - Call your local BRP dealership
293150029
Unavailable
29
Stereo Compact Disk
278002733
Unavailable
30
STEREO ANTENNA - Call your local BRP dealership
204471215
Unavailable
31
TIE RAP WITH DART - Call your local BRP dealership
204130098
Unavailable
32
RADIO SUPPORT - Call your local BRP dealership
204470837
Unavailable
33
STEREO TRIM RING - Call your local BRP dealership
204471010
Unavailable
34
SPEAKER, SILVER - Call your local BRP dealership | 180 Challenger SE
204471344
Unavailable
35
Not Available As Spare Parts
XXX
Unavailable
36
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership
209641360
Unavailable
37
Not Available As Spare Parts
XXX
Unavailable
38
Not Available As Spare Parts
XXX
Unavailable
39
Speaker Cover | 180 Challenger
204471226
Unavailable
