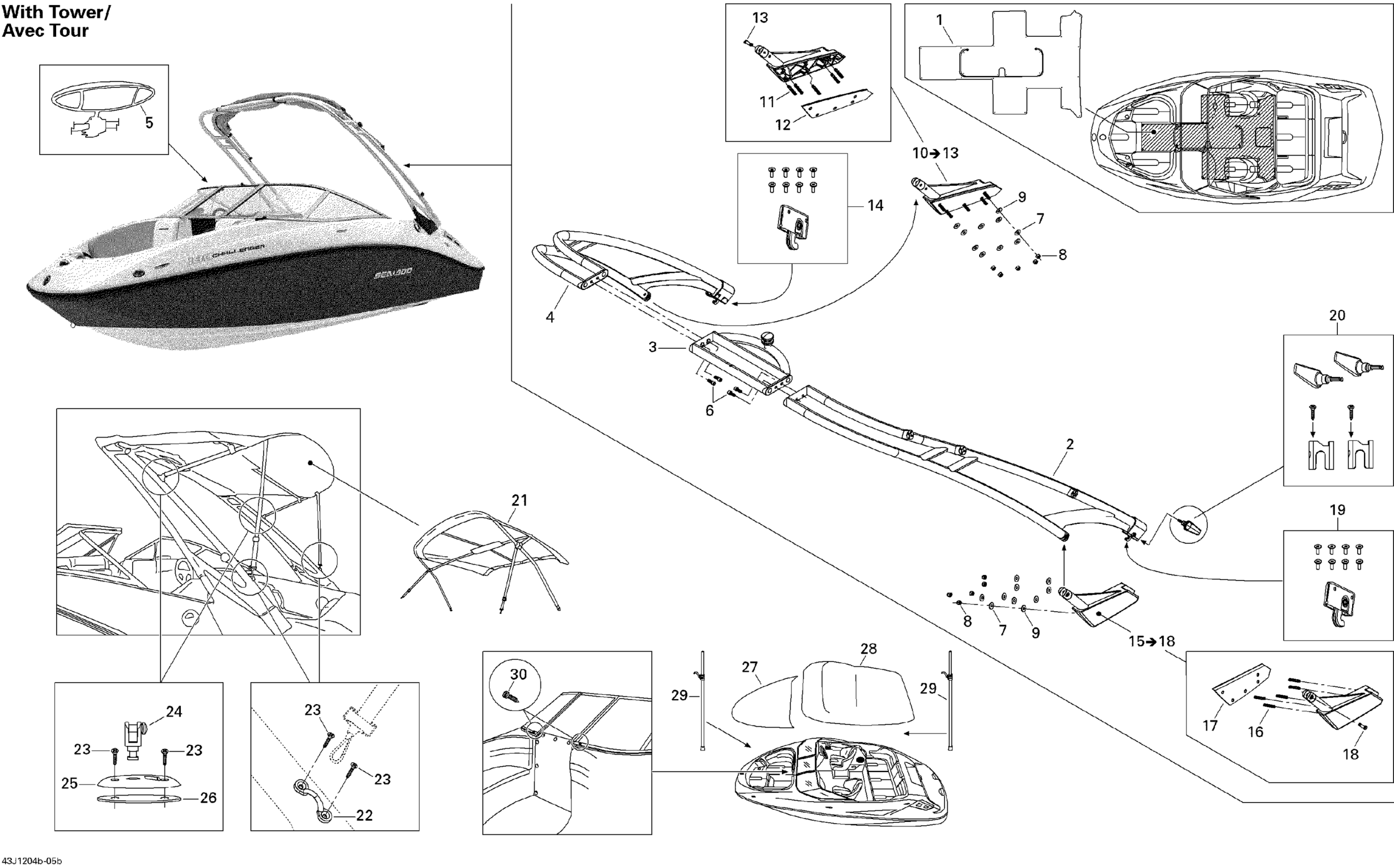

Sea-doo 180 Challenger SE 260, 2012 09- Tower And Bimini Top Diagram

#

Description
Price

1

ANTI SLIP MAT - Call your local BRP dealership | 180 Challenger SE

269800414

Unavailable

2

LH TOWER - Call your local BRP dealership | Port Side

269800223

Unavailable

3

TOWER HEADER - Call your local BRP dealership

269800224

Unavailable

4

RH TOWER - Call your local BRP dealership | Starboard

269800225

Unavailable

5

MIRROR, 3-WAY - Call your local BRP dealership

269800364

Unavailable

6

SCREW 1/2 X 13 X 1.25 - Call your local BRP dealership

269800197

Unavailable

7

WASHER-LOCK HELICAL 1/2 - Call your local BRP dealership

204100048

Unavailable

8

HEX. NUT 1/2 X 13 - Call your local BRP dealership

269800421

Unavailable

9

TOWER MOUNT FENDER WASHER 1/2 - Call your local BRP dealership

269800344

Unavailable

10

RH TOWER SUPPORT ASS'Y - Call your local BRP dealership | Includes 10 to 13, Starboard

269800233

Unavailable

11

STUD 1/2 - Call your local BRP dealership | Starboard

269800349

Unavailable

12

TOWER MOUNT GASKET 180 - PORT - Call your local BRP dealership | Starboard This part replaces 269800346.

269800439

Unavailable

13

TOWER MOUNT PIVOT BOLT 1/2 X 13 X 1.25 - Call your local BRP dealership | Starboard

269800366

Unavailable

14

CAM LATCH KIT - Call your local BRP dealership | Starboard

204950247

Unavailable

15

LH TOWER SUPPORT ASS'Y - Call your local BRP dealership | Includes 14 to 17, Port Side

269800195

Unavailable

16

STUD 1/2 - Call your local BRP dealership | Starboard

269800349

Unavailable

17

TOWER MOUNT GASKET 180 - PORT - Call your local BRP dealership | Starboard This part replaces 269800346.

269800439

Unavailable

18

TOWER MOUNT PIVOT BOLT 1/2 X 13 X 1.25 - Call your local BRP dealership | Starboard

269800366

Unavailable

19

CAM LATCH KIT - Call your local BRP dealership | Starboard

204950247

Unavailable

20

HANDLE LATCH KIT - Call your local BRP dealership

204950246

Unavailable

21

BIMINI TOP - Call your local BRP dealership

269800196

Unavailable

22

STRAP EYE, STAINLESS - Call your local BRP dealership

269800358

Unavailable

23

SCREW 8-18 X 1 - Call your local BRP dealership

269800422

Unavailable

24

BIMINI POST - Call your local BRP dealership

204950033

Unavailable

25

BIMINI BASE - Call your local BRP dealership

204950034

Unavailable

26

BIMINI SPACER - Call your local BRP dealership

204950031

Unavailable

27

Bow Cover

269800376

Unavailable

28

COCKPIT COVER - Call your local BRP dealership

269800378

Unavailable

29

SUPPORT POLE COVER - Call your local BRP dealership

269800404

Unavailable

30

SNAP - Call your local BRP dealership

204613515

Unavailable
