- 180 Challenger SE 260, 2012
07- Steering

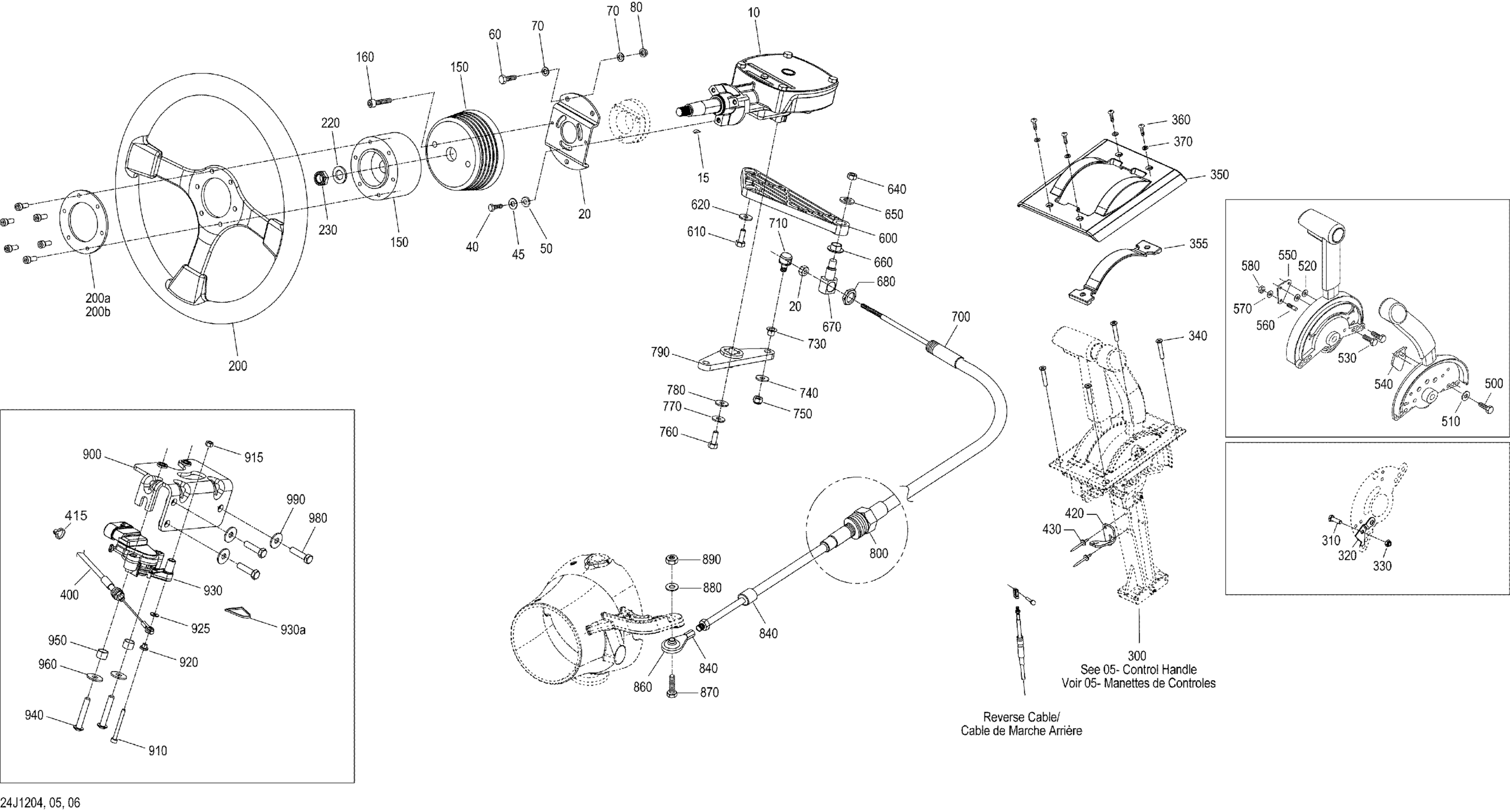

Sea-doo 180 Challenger SE 260, 2012 07- Steering Diagram
#
10
HELM ASS'Y - Call your local BRP dealership
204390244
Unavailable
15
WOODRUFF KEY - Call your local BRP dealership
277000384
Unavailable
20
Support
277000383
Unavailable
40
HEX. SCREW 1/4-20 X 3/4?, SCOTCH GRIP - Call your local BRP dealership
211000050
Unavailable
45
Flat Washer M6, Stainless
234062600
$0.77
50
Serrated Lock Washer 8 mm
234481608
$1.15
60
Hex. Screw M6 X 40
207164060
$3.38
70
Stainless Flat Washer M6
234061600
$0.33
80
Hex. Elastic Stop Nut M6
232561600
$1.15
150
COLLAR, BLACK - Call your local BRP dealership
204390030
Unavailable
160
SCREW 8-32 X 1-1/4 - Call your local BRP dealership
204390059
Unavailable
200
STEERING WHEEL ASS'Y - Call your local BRP dealership | SE
204390550
Unavailable
200a
CENTER CAP - Call your local BRP dealership | SE
204390549
Unavailable
200b
Not Available As Spare Parts
XXX
Unavailable
220
FLAT WASHER, STAINLESS - Call your local BRP dealership
211200006
Unavailable
230
LOCK NUT 1/2-20 - Call your local BRP dealership
211100021
Unavailable
300
Not Available As Spare Part - Friction Washer
Unavailable
310
HEX. SCREW M5 X 16 - Call your local BRP dealership
207151660
Unavailable
320
THROTTLE LINK - Call your local BRP dealership
204390045
Unavailable
330
Hex. Elastic Nut M5 | X
232551600
$1.15
340
PHILLIPS SCREW M5 X 30 - Call your local BRP dealership
208453060
Unavailable
350
PLATE CONTROL - Call your local BRP dealership
277001759
Unavailable
355
CONTROL PLATE INSERT - Call your local BRP dealership
277001760
Unavailable
360
Phillips Screw M4 X 10
208641060
$1.01
370
Flat Washer 4 mm
234040600
$0.55
400
THROTTLE CABLE - Call your local BRP dealership
277001780
Unavailable
415
Tie-Rap 180 mm
414115200
$0.11
420
CABLE SUPPORT - Call your local BRP dealership
277000504
Unavailable
430
RIVET_POP 1/8 - Call your local BRP dealership
293150026
Unavailable
500
Hex. Cap Screw M6 X 12
207161260
$1.26
510
Lock Washer 1/4”
211200025
$1.29
520
Lock Washer 1/4”
211200025
$1.29
530
Hex. Cap Screw M6 X 12
207161260
$1.26
540
THROTTLE STOP - Call your local BRP dealership
204390610
Unavailable
550
STOP-REVERSE - Call your local BRP dealership
204390369
Unavailable
560
REVERSE PIN - Call your local BRP dealership
204390370
Unavailable
570
Lock Washer 1/4”
211200025
$1.29
580
Hex. Elastic Stop Nut M6
232561600
$1.15
600
CABLE SUPPORT - Call your local BRP dealership
277000458
Unavailable
610
HEX. SCREW 1/4-20 X 3/4?, SCOTCH GRIP - Call your local BRP dealership
211000050
Unavailable
620
Lock Washer 1/4”
211200025
$1.29
640
LOCK NUT - Call your local BRP dealership
211100024
Unavailable
650
Flat Washer 10 mm, Stainless
234001600
$1.15
660
Flanged Bushing
293350014
$12.99
670
PIVOT 3/8? - Call your local BRP dealership
277000461
Unavailable
680
HEX. JAM NUT 5/8-18 - Call your local BRP dealership
204390053
Unavailable
700
CABLE STEERING - Call your local BRP dealership
277001766
Unavailable
710
PIVOT - Call your local BRP dealership
277000456
Unavailable
730
BUSHING - Call your local BRP dealership
204130095
Unavailable
740
FLAT WASHER - Call your local BRP dealership
211200019
Unavailable
750
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership
212000005
Unavailable
760
HEX. SCREW 1/4-20 X 1?, SCOTCH GRIP - Call your local BRP dealership
211000054
Unavailable
770
Lock Washer 1/4”
211200025
$1.29
780
Flat Washer M6, Stainless
234062600
$0.77
790
ARM - Call your local BRP dealership
204390040
Unavailable
800
SEAL SWIVEL - Call your local BRP dealership
277000440
Unavailable
840
Terminal Wiper
277000441
$11.99
860
BALL JOINT - Call your local BRP dealership
204120074
Unavailable
870
Hex. Screw M6 X 35
207063560
$2.22
880
Stainless Flat Washer M6
234061600
$0.33
890
Hex. Elastic Stop Nut M6
232561600
$1.15
900
SENSOR BRACKET - Call your local BRP dealership
277001694
Unavailable
910
SOCKET SCREW M3 X 30 - Call your local BRP dealership
205033060
Unavailable
915
Elastic Stop Nut M3
232531600
$2.11
920
PIVOT BUSHING - Call your local BRP dealership
706001163
Unavailable
925
PLASTIC WASHER - Call your local BRP dealership
277001810
Unavailable
930
SENSOR_POSITION THROTTLE - Call your local BRP dealership
277001727
Unavailable
930a
O-Ring
270000544
$4.65
940
Socket Screw M5 X 30
205453060
$1.89
950
SPACER - Call your local BRP dealership
278002752
Unavailable
960
Flat Washer 5 mm, Stainless
234052600
$0.77
980
Hex. Screw M5 X 20
207152060
$1.47
990
Flat Washer 5 mm, Stainless
234052600
$0.77
