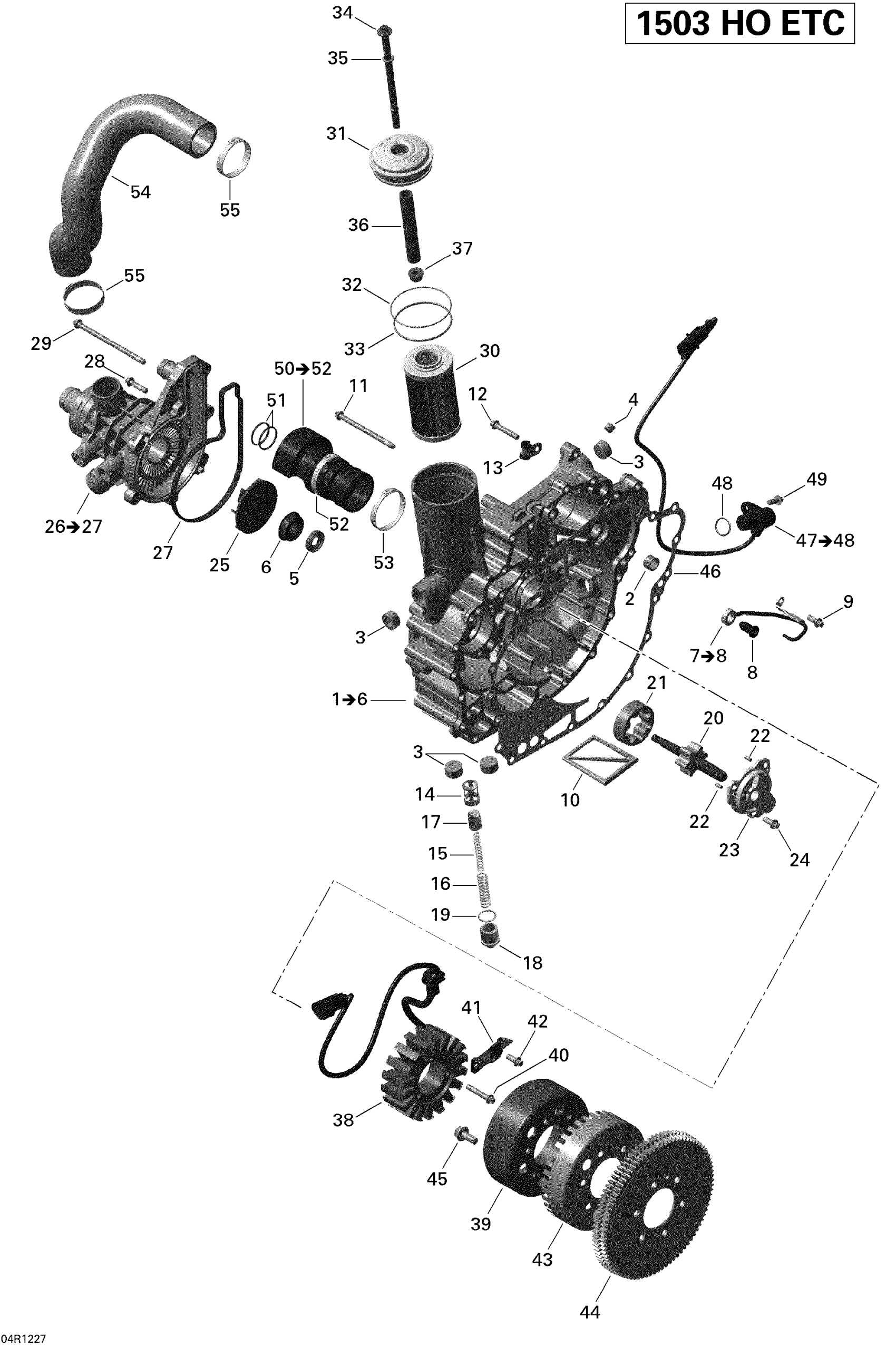

Sea-doo 180 Challenger SE 260, 2012 PTO Cover And Magneto Diagram

#

Description
Price

1

Timing/Drive Cover Ass'y | Includes 1 to 6 This part replaces 420910521.

420481440

$720.49

2

Needle Bushing

420232482

$20.99

3

Plug Screw M20 X 1.5

420641317

$14.22

4

Plug Screw M10 X 1

420641323

$14.28

5

Oil Seal

420650315

$11.65

6

Rotary Seal

420650371

$43.49

7

OIl Spray Nozzle Ass'y | Includes 7 to 8

420856877

$58.49

8

Banjo Screw This part replaces 420840180.

420840181

$14.30

9

Torx Flange Screw M6 X 16

420641048

$2.96

10

Oil Sieve

420956950

$16.86

11

Torx Flange Screw M6 X 85

420641228

$7.41

12

Torx Flange Screw M6 X 35

420641258

$3.38

13

Clamp

420853414

$18.49

14

Valve Seat Sleeve

420256606

$29.49

15

Compression Spring

420939401

$14.75

16

Compression Spring

420939211

$8.99

17

Piston Valve

420256638

$22.99

18

Plug Screw M20 X 1.5

420641052

$37.99

19

O-Ring

420230890

$5.39

20

Pump Shaft Ass'y

420837472

$56.99

21

Oil Pump Rotor 16 mm

420956675

$36.99

22

Needle Pin

420929070

$1.90

23

Oil Pump Cover

420811591

$37.99

24

Torx Flange Screw M6 X 16

420641048

$2.96

25

Impeller

420922801

$17.53

26

Water Pump Housing Ass'Y | Includes 26 to 27 This part replaces 420922686.

420922921

$309.99

27

Water Pump Housing Gasket | Included in gasket kit

420950840

$15.27

28

Torx Flange Screw M6 X 25

420641238

$3.27

29

Torx Flange Screw M6 X 105

420641338

$7.41

30

Oil Filter

420956741

$13.77

31

Oil Filter Cover

420612081

$45.49

32

O-Ring

420850500

$3.17

33

O-Ring

420230923

$3.17

34

Hex Screw M8 X 140.5

420641104

$13.76

35

O-Ring

420950860

$3.91

36

Spacer

420857229

$20.99

37

Hex. Nut M8

420842610

$13.77

38

Stator Plate This part replaces 420889721.

420889726

$319.49

39

Magneto Flywheel

420296900

$461.99

40

Torx Flange Screw M6 X 35

420641258

$3.38

41

Retaining Plate

420926300

$16.37

42

Torx Flange Screw M6 X 16

420641048

$2.96

43

Trigger Wheel

420966851

$18.49

44

Starter Double Gear 87/86T

420834871

$319.99

45

Hex Screw

295501162

$15.28

46

Timing Drive Cover Gasket (1603 NA) | Included in gasket kit

420931130

$23.49

47

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$109.99

48

O-Ring

420431580

$14.83

49

Torx Flange Screw M6 X 16

420641048

$2.96

50

Ball Bearing With Bellows Ass'y | Includes 50 to 52

420832648

$142.99

51

O-Ring

420631612

$4.33

52

Gear Clamp 46.8-50.0MM

420853023

$7.41

53

Gear Clamp

420851653

$7.41

54

Formed Hose This part replaces 420922825.

420922828

$45.49

55

Oetiker Clamp

420851687

$11.65
