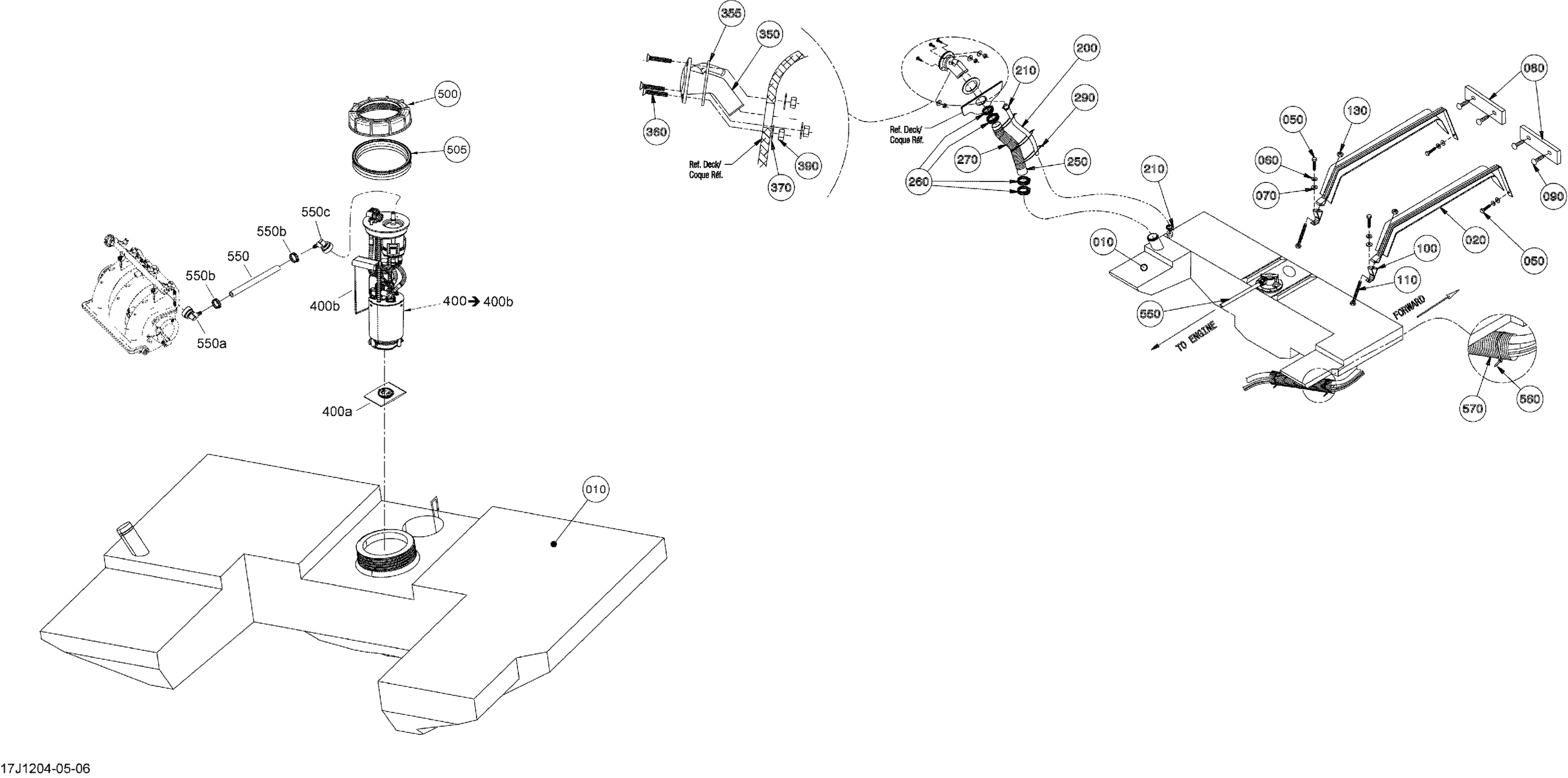

Sea-doo 180 Challenger SE 260, 2012 02- Fuel System Diagram

TANK-FUEL / 180CH MY12 ONLY - Call your local BRP dealership This part replaces 275500862.

275500911

Unavailable

FUEL TANK STRAP - Call your local BRP dealership

204560181

Unavailable

Hex. Screw M8 X 30

207183060

$1.58

Lock Washer 8 mm, Stainless

234181601

$0.55

Flat Washer 8 mm, Stainless

234082600

$2.43

MUFFLER RUBBER PAD - Call your local BRP dealership

204060702

Unavailable

Black, Dart

293730006

$0.99

TANK BRACKET - Call your local BRP dealership

275500252

Unavailable

HEX. SCREW M8 X 55 - Call your local BRP dealership

207185560

Unavailable

Hex. Elastic Nut M8

232581600

$1.48

HOSE 16 MM - Call your local BRP dealership

204560358

Unavailable

NORMA CLAMP - Call your local BRP dealership

293650069

Unavailable

FILLER NECK HOSE - Call your local BRP dealership

204560401

Unavailable

NORMA CLAMP - Call your local BRP dealership

275500823

Unavailable

SPLIT CONDUIT - Call your local BRP dealership

204130408

Unavailable

Tie Wrap 368 mm

293750008

$1.04

FILLER NECK - Call your local BRP dealership

275500800

Unavailable

SPACER - Call your local BRP dealership This part replaces 275500801.

204560188

Unavailable

Phillips Screw M4 X 35

208643560

Unavailable

Flat Washer 4 mm

234040600

$0.55

Elastic Stop Nut M4

232541600

$1.15

FUEL PUMP MODULE - Call your local BRP dealership | Includes 400 To 400b

275500831

Unavailable

Fuel Filter

270600113

$33.99

LEVER SENSOR - Call your local BRP dealership

296000351

Unavailable

SPECIAL NUT M150 - Call your local BRP dealership

204100257

Unavailable

Gasket

293250173

$18.49

HOSE 5/16 - Call your local BRP dealership

204560396

Unavailable

Quick Attach 90°

275500700

$16.49

Norma Clamp

293650084

$4.12

Elbow Fitting 90°

293710105

$14.22

Tie Wrap 142 mm

293750002

$1.25

SLIT CONDUIT 1 - Call your local BRP dealership This part replaces 204560132.

204130176

Unavailable
