01- Engine Block

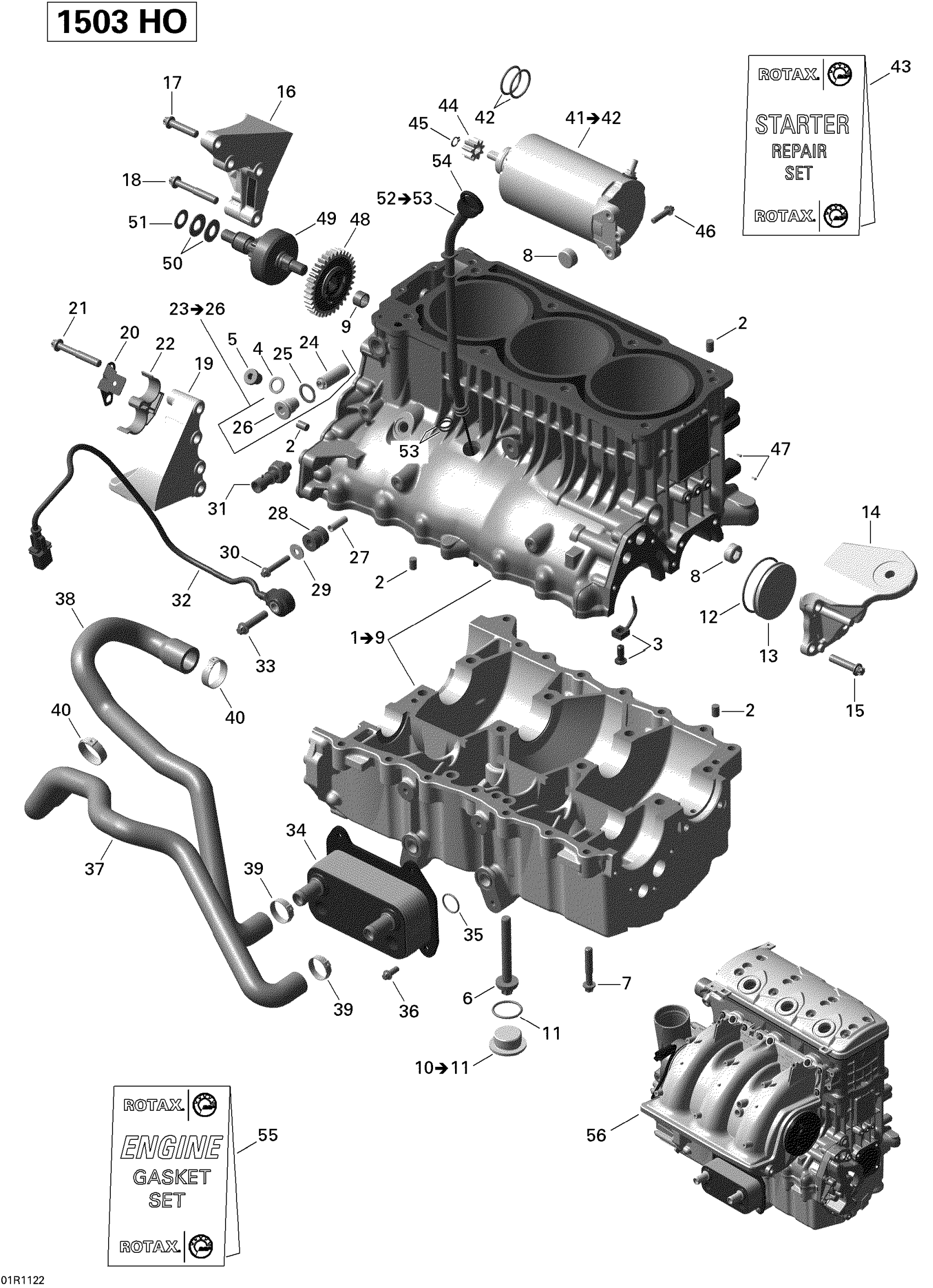

Sea-doo 180 Challenger SE 255, 2011 01- Engine Block Diagram
#
1
Cylinder Block With Sleeves | Includes 1 to 9 This part replaces 420892461.
420893511
$2.00
2
Center Pin 8 X 12
420632010
$4.01
3
Oil Spray Nozzle This part replaces 420956778.
420956827
$27.49
4
Aluminum Sealing Ring
420250016
$5.39
5
Plug Screw M12
420841923
$15.89
6
Torx Flange Screw M10 X 82
420641120
$7.41
7
Hex. Flange Screw M8 X 45
420641208
$7.51
8
Plug Screw M20 X 1.5
420641317
$14.22
9
Needle Bushing
420232482
$20.99
10
Plug Screw M30 X 1.5
420641171
$20.99
11
O-Ring DIN 3771-28X2.6n NBR70 Cylinder Block Plug Screws
420631300
$10.33
12
O-Ring
420430405
$14.28
13
Plug Cover
420660110
$7.41
14
FRONT ENGINE BRACKET - Call your local BRP dealership This part replaces 420811791.
420811792
Unavailable
15
Torx Flange Screw M8 X 35
420641188
$7.41
16
Engine Bracket PTO, Exhaust
420811788
$75.99
17
Torx Flange Screw M8 X 35
420641188
$7.41
18
Torx Flange Screw M8 X 55
420641213
$7.41
19
Engine Bracket PTO, Exhaust
420811784
$63.99
20
Retaining Plate
420851740
$20.99
21
Torx Flange Screw M8 X 55
420641213
$7.41
22
Hose Bracket
420660290
$16.37
23
Chain Tensioner With Screw | Includes no. 8-11
420236259
$70.99
24
Not Available As Spare Part - Friction Washer
Unavailable
25
Gasket Ring
420430624
$1.89
26
Not Available As Spare Part - Friction Washer
Unavailable
27
Spacer
420847971
$7.41
28
Rubber Bracket
420660090
$4.12
29
Flat Washer M6
420827968
$1.90
30
Torx Flange Screw M6 X 35
420641258
$3.38
31
Oil Pressure Switch
420856533
$43.99
32
Noise Sensor
420664031
$63.99
33
Torx Flange Screw M8 X 35
420641188
$7.41
34
Oil Radiator
420888877
$339.99
35
O-Ring
420250057
$4.23
36
Torx Flange Screw M6 X 16
420641048
$2.96
37
Formed Hose
420922834
$62.49
38
Formed Hose
420922832
$48.49
39
Oeticker Gear Clamp, 25.6-706R
509000442
$5.19
40
Gear Clamp
420851673
$5.71
41
Electric Starter Ass'y | Includes no. 20-21
420888995
$265.99
42
O-Ring
420631310
$4.44
43
CARBON BRUSH SET - Call your local BRP dealership
420664712
Unavailable
44
Starter Gear, 9 Teeth
420834522
$74.99
45
Retaining Ring
420845601
$4.55
46
Torx Flange Screw M6 X 25
420641238
$3.27
47
Grooved Pin
420249073
$1.90
48
Bendix Starter This part replaces 420889872.
420890637
$264.99
49
Bendix Starter This part replaces 420889872.
420890637
$264.99
50
Spring Washer
420238300
$7.41
51
Thrust Washer
420827261
$7.51
52
Oil Level Tube
420956944
$121.49
53
O-Ring
420950810
$14.83
54
Oil Level Gauge
420956933
$25.99
55
Engine Gasket Set
420889773
$550.99
56
Engine Long Block This part replaces 420150338.
420150394
$4.00
56
Engine Long Block This part replaces 420150338.
420150394
$4.00
56
Engine Long Block This part replaces 420150338.
420150394
$4.00
