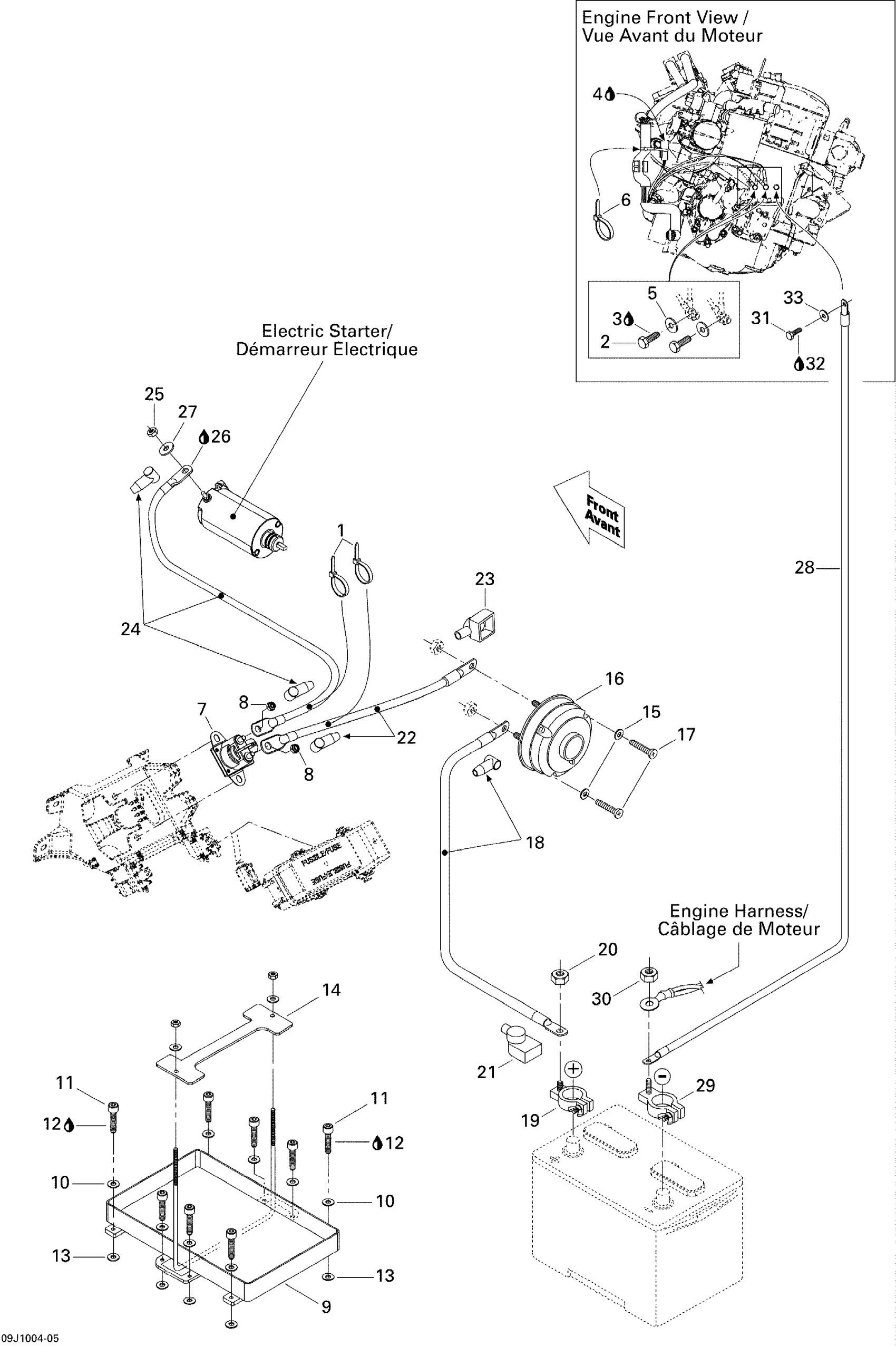

Sea-doo 180 Challenger SE 255, 1x255 1503HO, 2010 Electrical System Diagram

#

Description
Price

1

Tie Wrap 142 mm

293750002

$1.25

2

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

5

Stainless Flat Washer M6

234061600

$0.33

6

Tie-Rap 180 mm

414115200

$0.11

7

Starter Relay

278003012

$42.49

8

Hex. Elastic Stop Nut M6

232561600

$1.15

9

BATTERY SUPPORT - Call your local BRP dealership

204471008

Unavailable

10

FLAT WASHER - Call your local BRP dealership

204100069

Unavailable

11

Socket Head Screw M6 X 25

205062560

$1.69

12

Loctite 243, 10 ml

293800060

$21.49

13

FLAT WASHER, PLASTIC - Call your local BRP dealership

211200029

Unavailable

14

TOP BATTERY SUPPORT - Call your local BRP dealership

204471290

Unavailable

15

Flat Washer M5, Stainless

234051600

$0.77

16

BATTERY SWITCH - Call your local BRP dealership

204470814

Unavailable

17

PHILLIPS HEAD SCREW M4.8 X 38 - Call your local BRP dealership

250000089

Unavailable

18

POSITIVE SWITCH CABLE - Call your local BRP dealership

204470250

Unavailable

19

POSITIVE BATTERY POLE - Call your local BRP dealership

204470349

Unavailable

20

HEX. NUT 3/8-16 - Call your local BRP dealership

211100063

Unavailable

21

RED BOOT - Call your local BRP dealership

204470269

Unavailable

22

RED CABLE - Call your local BRP dealership

204470799

Unavailable

23

RED BOOT - Call your local BRP dealership

204470269

Unavailable

24

RED CABLE - Call your local BRP dealership

204470798

Unavailable

25

Hex. Elastic Stop Nut M6

232561600

$1.15

26

Not Available As Spare Part - Friction Washer

Unavailable

27

Stainless Flat Washer M6

234061600

$0.33

28

RH GROUND CABLE - Call your local BRP dealership

204470199

Unavailable

29

NEGATIVE BATTERY POLE - Call your local BRP dealership

204470348

Unavailable

30

HEX. NUT 5/16?-18 - Call your local BRP dealership

204100052

Unavailable

31

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

32

Not Available As Spare Part - Friction Washer

Unavailable

33

Flat Washer M6, Stainless

234062600

$0.77
