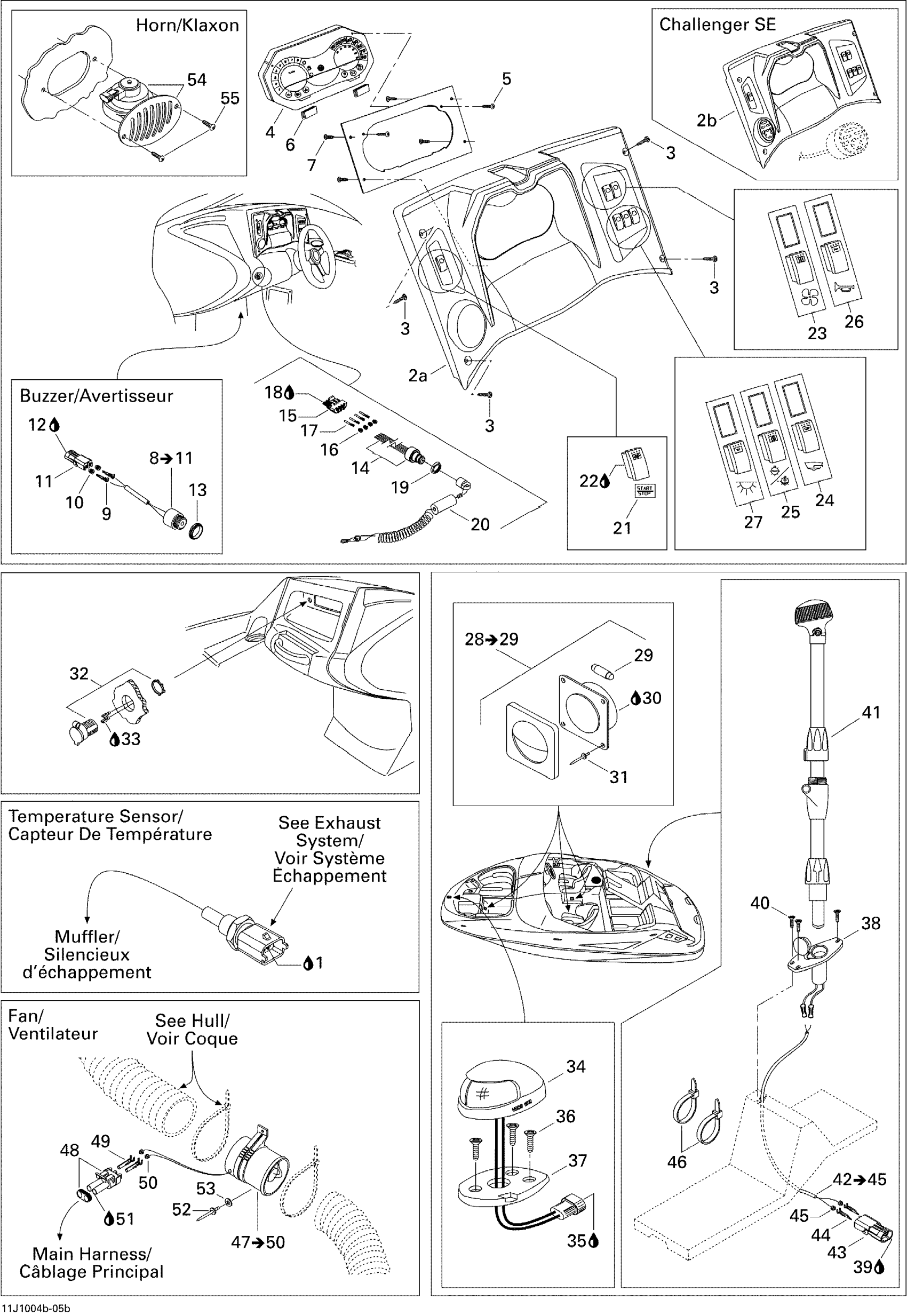

Sea-doo 180 Challenger SE 255, 1x255 1503HO, 2010 Electrical Accessories 2 Diagram

#

Description
Price

1

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

2a

Not Available As Spare Parts

XXX

Unavailable

2b

FASCIA - Call your local BRP dealership

204471321

Unavailable

3

PHILLIPS TAPPING SCREW M4.2 X 38 - Call your local BRP dealership

204100234

Unavailable

4

Cluster Gauge

204471378

$899.99

5

Hex. Flange Screw K40 X 16

241141660

$1.48

6

TRIM - Call your local BRP dealership

293830113

Unavailable

7

PHILLIPS SCREW #8 X 1/2, PLASTITE - Call your local BRP dealership | Not Shown

211000180

Unavailable

8

Buzzer Ass'y

204470913

$92.99

9

Male Terminal | XT Models

278000222

$3.19

10

Wire Seal

278000218

$4.39

11

Female Housing, 2 Circuits

278000217

$9.59

12

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

13

Buzzer Nut

278000707

Unavailable

14

Safety Switch

278002351

$114.99

15

Male Housing, 4 Circuits

278000395

$15.99

16

Wire Seal

278000218

$4.39

17

Female Terminal

278000223

$3.19

18

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

19

Safety Nut (DESS Switch)

278002963

$3.28

20

Safety Lanyard

204471206

$56.99

21

START/STOP SWITCH - Call your local BRP dealership

204471178

Unavailable

22

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

23

VENTILATION SWITCH ASS'Y - Call your local BRP dealership

204470011

Unavailable

24

BILGE PUMP SWITCH ASS'Y - Call your local BRP dealership

204470099

Unavailable

25

LIGHT SWITCH ASS'Y - Call your local BRP dealership

204470100

Unavailable

26

HORN SWITCH ASS'Y - Call your local BRP dealership

204470101

$49.99

27

COURTESY LIGHT SWITCH ASS'Y - Call your local BRP dealership

204470102

Unavailable

28

Courtesy Light Ass'y | Includes 29 to 30

204470026

$47.49

29

BULB - Call your local BRP dealership

204470081

Unavailable

30

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

31

RIVET_POP 1/8 X ,487 - Call your local BRP dealership

293150032

Unavailable

32

DC Outlet

710001248

$37.99

33

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

34

Front Lamp

204470372

Unavailable

35

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

36

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

37

FRONT LAMP SUPPORT - Call your local BRP dealership

204470072

Unavailable

38

REAR LIGHT BASE - Call your local BRP dealership

204470990

Unavailable

39

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

40

Phillips Tapping Screw M4.2 X 32

209943260

$1.47

41

REAR LIGHT POLE - Call your local BRP dealership

204470979

Unavailable

42

REAR LIGHT HARNESS - Call your local BRP dealership | Includes 39 to 42

204470980

Unavailable

43

Female Housing, 2 Circuits

278000217

$9.59

44

Male Terminal | XT Models

278000222

$3.19

45

Wire Seal

278000218

$4.39

46

Tie Wrap 142 mm

293750002

$1.25

47

Fan Ass'y | Includes 44 to 47

204470108

$144.99

48

Male Connector, 2 Circuits

278000220

$15.49

49

Female Terminal

278000223

$3.19

50

Wire Seal

278000218

$4.39

51

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

52

Pop Rivet 3/16"

293150088

$0.99

53

Flat Washer 5 mm, Stainless

234052600

$0.77

54

HORN - Call your local BRP dealership

204470801

Unavailable

55

Phillips Tapping Screw M4.2 X 32

209943260

$1.47
