- 180 Challenger SE 255, 1x255 1503HO, 2010
09- Tower And Bimini Top

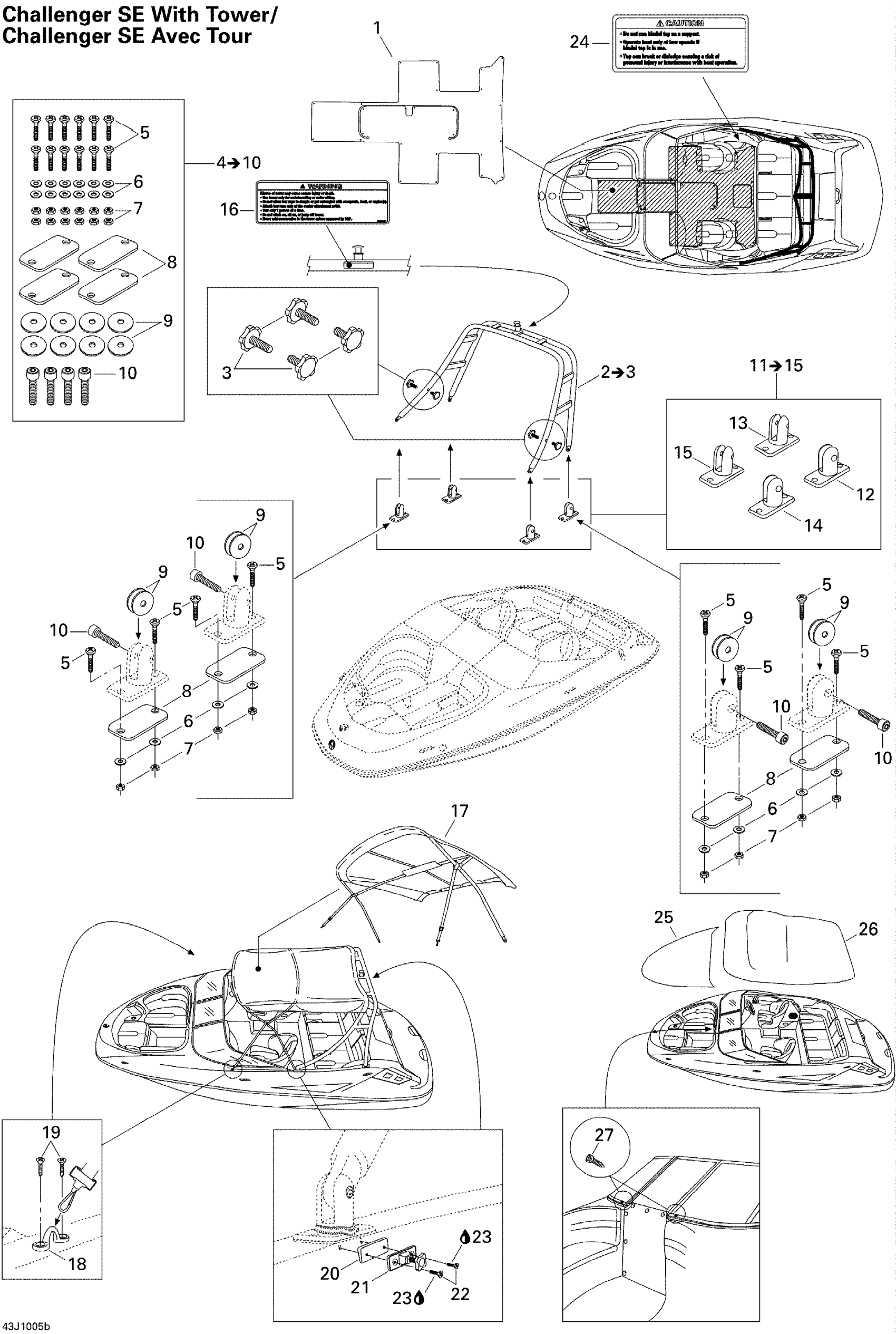

Sea-doo 180 Challenger SE 255, 1x255 1503HO, 2010 09- Tower And Bimini Top Diagram
#
Description
Price
1
ANTI SLIP MAT - Call your local BRP dealership | 180 Challenger SE
269800414
Unavailable
2
Tower Ass'y | Includes 2 to 3
204950090
Unavailable
3
Soft Touch Knob
204072011
Unavailable
4
TOWER HARDWARE KIT - Call your local BRP dealership | Includes 4 to 10
204950086
Unavailable
5
SCREW-CTSK.OV.HD. 1/4-20 X 2 - Call your local BRP dealership
204100151
Unavailable
6
WASHER - Call your local BRP dealership | Without Tower
204071423
Unavailable
7
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership
212000005
Unavailable
8
REAR GASKET - Call your local BRP dealership
204130107
Unavailable
9
Not Available As Spare Part - Friction Washer
Unavailable
10
SOCKET HEAD SCREW 3/8-16 X 1-1/2 - Call your local BRP dealership
204100094
Unavailable
11
Tower Mounting Kit | Includes 11 to 15
204950088
Unavailable
12
REAR TOWER SUPPORT, PORT SIDE - Call your local BRP dealership
204072251
Unavailable
13
REAR TOWER SUPPORT, STARBOARD - Call your local BRP dealership
204072252
Unavailable
14
Not Available As Spare Part - Friction Washer
Unavailable
15
Not Available As Spare Part - Friction Washer
Unavailable
16
WARNING LABEL, TOWER - Call your local BRP dealership | With Tower
204902068
Unavailable
17
BIMINI TOP ASS'Y - Call your local BRP dealership
204950112
Unavailable
18
STRAP EYE - Call your local BRP dealership
204071845
Unavailable
19
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
20
BIMINI MOUNT SPACER - Call your local BRP dealership
204072263
Unavailable
21
BIMINI MOUNT - Call your local BRP dealership
204072264
Unavailable
22
PHILLIPS SCREW M5 X 30 - Call your local BRP dealership
208453060
Unavailable
23
Loctite 243, 10 ml
293800060
$21.49
24
CAUTION LABEL, BIMINI TOP - Call your local BRP dealership
204901331
Unavailable
25
Bow Cover
204950083
Unavailable
26
COCKPIT COVER - Call your local BRP dealership
204950105
Unavailable
27
SNAP - Call your local BRP dealership
204613741
Unavailable
