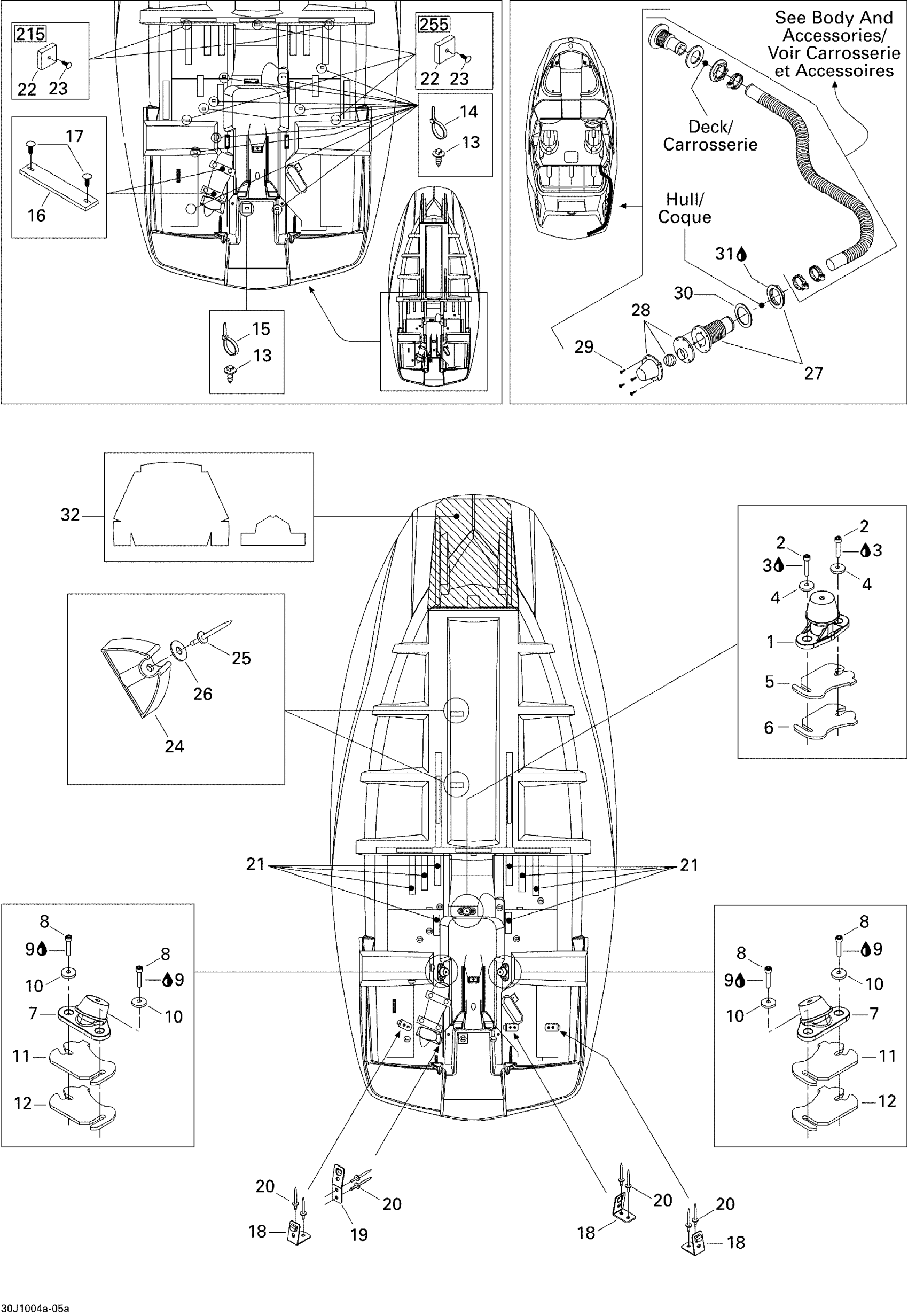

Sea-doo 180 Challenger SE 255, 1x255 1503HO, 2010 Lower Hull Diagram

#

Description
Price

1

Engine Support Ass'y

270001096

$97.99

2

Socket Head Screw M8 X 45

205084560

$3.59

3

Loctite 243, 10 ml

293800060

$21.49

4

Cone Washer

250200018

$5.61

5

SHIM 0.3 MM - Call your local BRP dealership

270000445

Unavailable

6

Shim 1.3 mm

270000762

$12.99

7

Engine Support Ass'y

270001081

$109.99

8

SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership

205084060

Unavailable

9

Loctite 243, 10 ml

293800060

$21.49

10

Cone Washer

250200018

$5.61

11

SHIM 0.3 MM - Call your local BRP dealership

270000445

Unavailable

12

Shim 1.3 mm

270000762

$12.99

13

Mount Dart

293730040

$1.04

14

Tie-Rap 180 mm

414115200

$0.11

15

Tie Wrap 368 mm

293750008

$1.04

16

MUFFLER RUBBER PAD - Call your local BRP dealership

204060702

Unavailable

17

Black, Dart

293730006

$0.99

18

Strap Clip 90°

204060017

Unavailable

19

Strap Clip

293850030

$11.12

20

Pop Rivet 3/16"

293150088

$0.99

21

NEOPRENE, METER - Call your local BRP dealership

202000024

Unavailable

22

Not Available As Spare Parts

XXX

Unavailable

22

RUBBER PAD - Call your local BRP dealership

204060684

Unavailable

23

Not Available As Spare Parts

XXX

Unavailable

23

Black, Dart

293730006

$0.99

24

Pole Support

291000642

Unavailable

25

RIVET - Call your local BRP dealership

293150065

Unavailable

26

Flat Washer M5, Stainless

234051600

$0.77

27

THRU HULL FITTING - Call your local BRP dealership

204060071

Unavailable

28

SCUPPER VALVE - Call your local BRP dealership

204060188

Unavailable

29

PHILLIPS SCREW #8 X 1/2, PLASTITE - Call your local BRP dealership | Not Shown

211000180

Unavailable

30

Not Available As Spare Part - Friction Washer

Unavailable

31

Silicone Sealant 51388, 300 ml

296000309

$36.99

32

CARPET - Call your local BRP dealership

204061084

Unavailable
