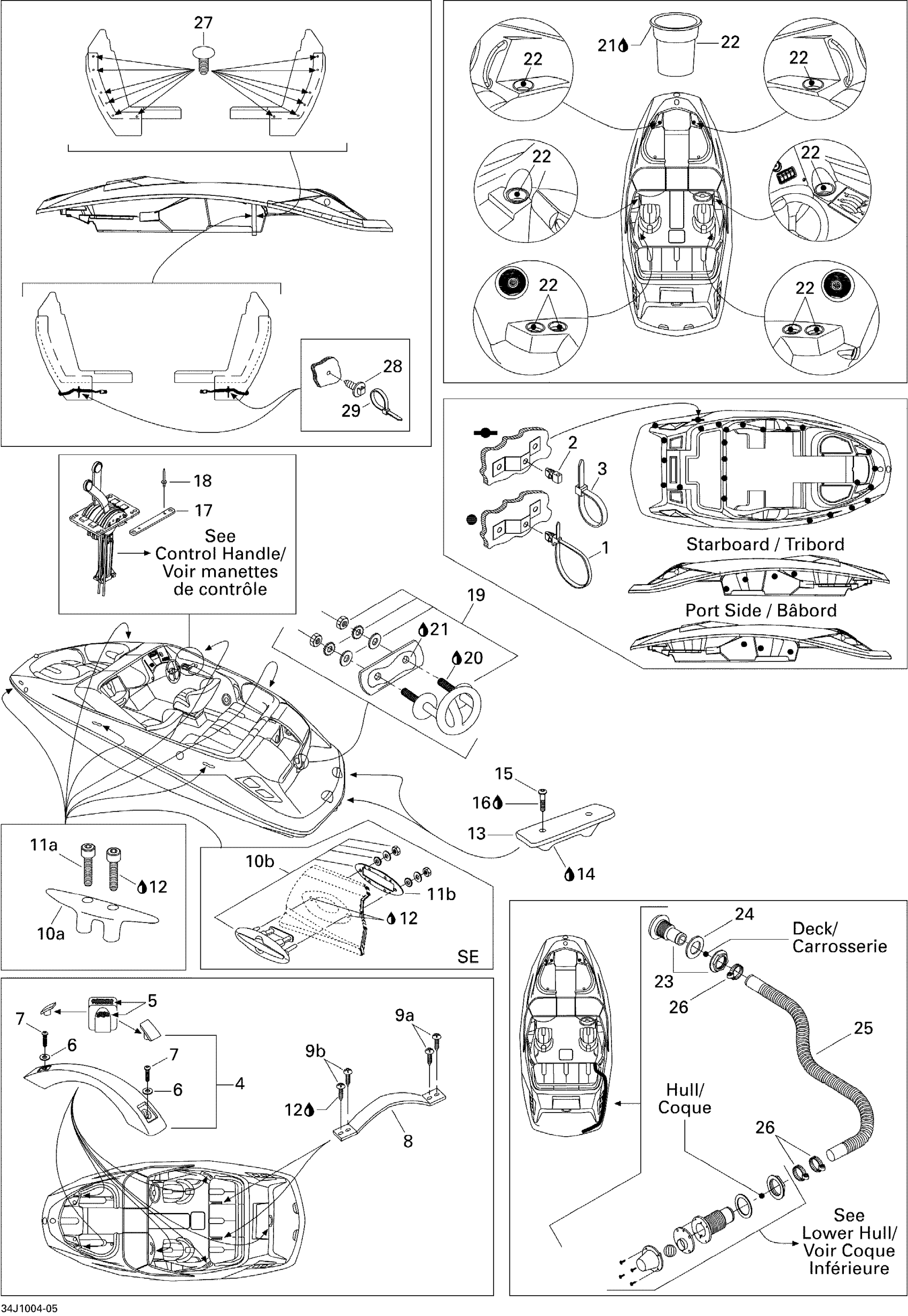

Sea-doo 180 Challenger SE 255, 1x255 1503HO, 2010 09- Body And Accessories Diagram

#

Description
Price

1

TIE RAP WITH DART - Call your local BRP dealership

204130098

Unavailable

2

DART, BLACK - Call your local BRP dealership

204130099

Unavailable

3

Tie Wrap 368 mm

293750008

$1.04

4

GRIP HANDLE - Call your local BRP dealership

204073191

Unavailable

5

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

6

Stainless Flat Washer M6

234061600

$0.33

7

SOCKET HEAD SCREW M6 X 30, SCOTCH GRIP - Call your local BRP dealership

205963060

Unavailable

8

Grip Handle

204073052

Unavailable

9a

Phillips Tapping Screw

204100058

$0.66

9b

SCREW-TRUSS HD.PH.#8 X 1(MACHINED) - Call your local BRP dealership

204100256

Unavailable

10a

Not Available As Spare Parts

XXX

Unavailable

10b

PULL-UP CLEAT - Call your local BRP dealership

204073514

Unavailable

11a

Not Available As Spare Parts

XXX

Unavailable

11b

CLEAT BACKING PLATE - Call your local BRP dealership | Models Without Tower

204073516

Unavailable

12

Loctite 243, 10 ml

293800060

$21.49

13

GRIP HANDLE, BLACK - Call your local BRP dealership

204070194

Unavailable

14

Silicone Sealant 51388, 300 ml

296000309

$36.99

15

SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership

205364060

Unavailable

16

Loctite 243, 10 ml

293800060

$21.49

17

SHIFTER INSERT - Call your local BRP dealership

293450061

Unavailable

18

Pop Rivet 3/16"

293150013

$1.37

19

Ski Tow Hook

204070206

Unavailable

20

Loctite 271, 10 ml

293800005

$26.99

21

Silicone Sealant 51388, 300 ml

296000309

$36.99

22

CUP HOLDER - Call your local BRP dealership | SE & SP

204073519

Unavailable

23

FITTING - Call your local BRP dealership

293710060

Unavailable

24

GASKET - Call your local BRP dealership

293250255

Unavailable

25

HOSE BILGEFLEX 1-1/2?, METER - Call your local BRP dealership

204070560

Unavailable

26

Norma Clamp

293650074

$17.05

27

Black Dart

293730014

$0.99

28

Mount Dart

293730040

$1.04

29

Tie-Rap 180 mm

414115200

$0.11
